Channel Master 100 - Page 9

0 1020304050607080
0
20
40
60
80
10
30
50
70
90
ANTENNA
FEED
NORTHERN SOUTHERN
POLARIZATION CHART SIGN VALUES (+ OR -) HEMISPHERE HEMISPHERE
ANTENNA SITE WEST OF SATELLITE LONGITUDE - +
ANTENNA SITE EAST OF SATELLITE LONGITUDE + -
EARTH STATION LATITUDE IN DEGREES NORTH OR SOUTH OF EQUATOR
POLARIZATION + OR – (SEE ILLUSTRATION)
" L" IS THE DIFFERENCE BETWEEN THE EARTH STATION
ANTENNA SITE LONGITUDE AND THE SATELLITE LONGITUDE

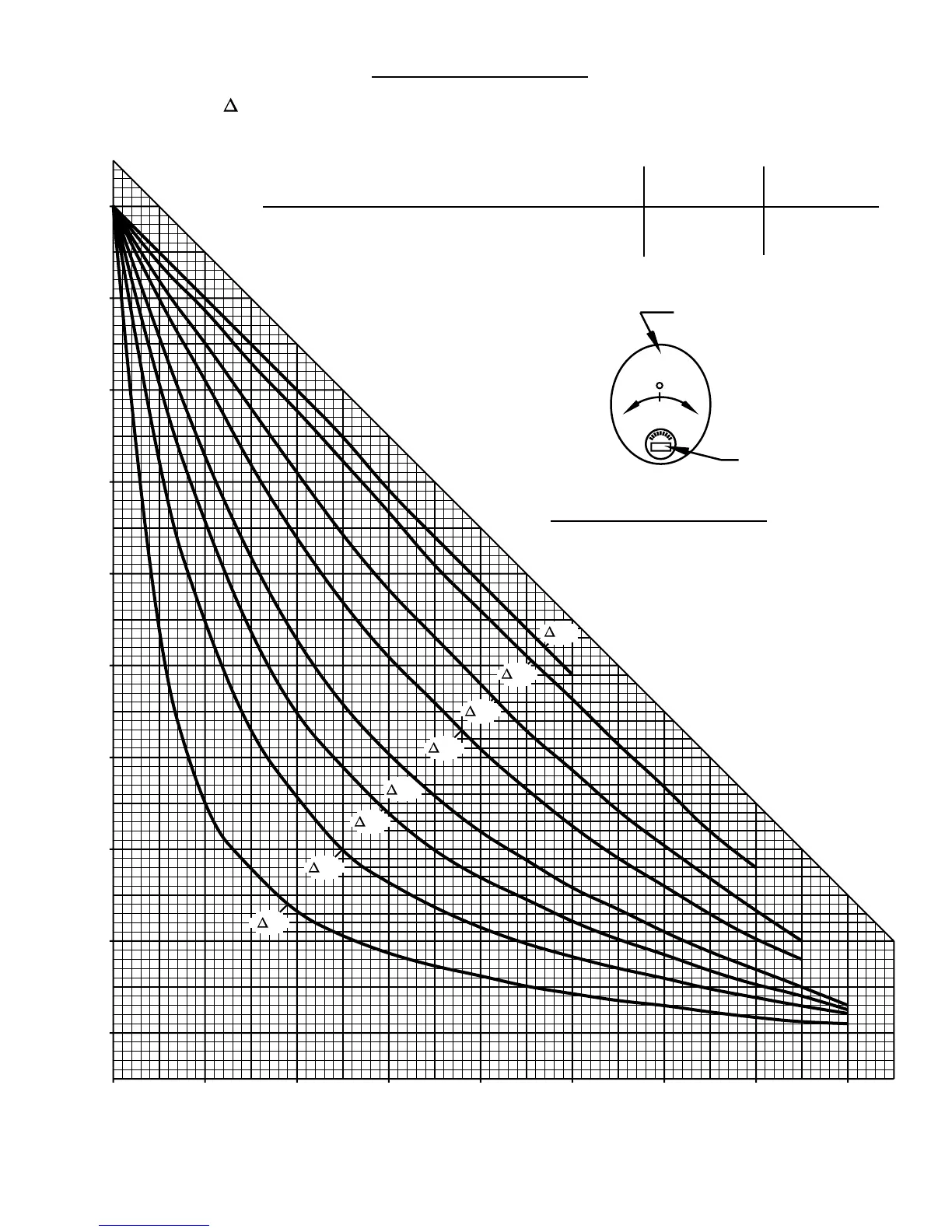

POLARIZATION CHART
+–
75°
60°
40°
30°
20°
15°
10°
5°
Feed Rotation (Facing Antenna)
For + Polarization, Rotate CCW (Counter Clockwis
For - Polarization, Rotate CW (Clockwise)
