Channel Master CM3000HD - Page 6

SMARTenna
™
CM-3000HD Installation Instructions:
Indoor Use, Table Top:

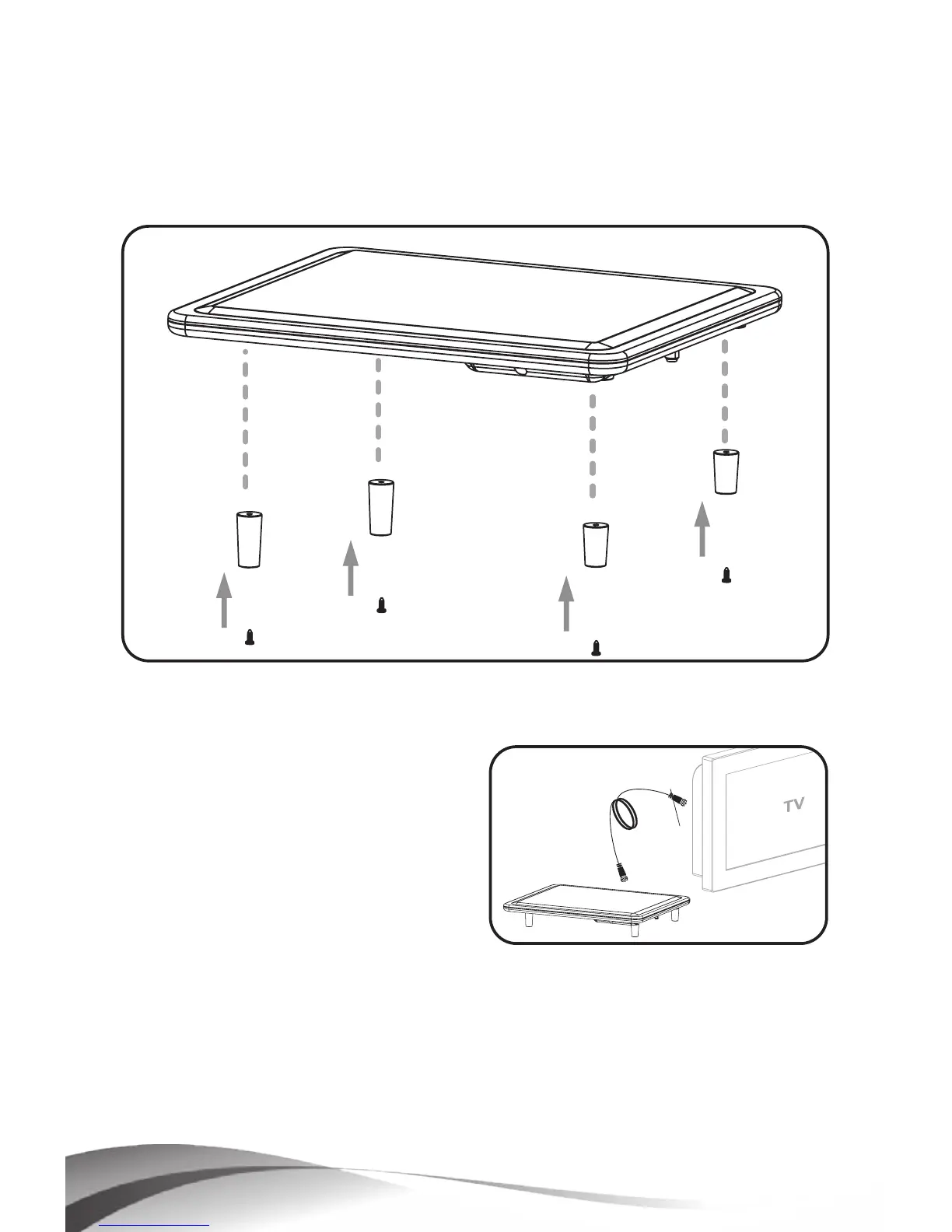

1. Attach the plastic feet (Fig. 1) to the antenna unit
using the four (10 mm) screws provided.
Screws
Tornillos
Vis
Figure 1
2. Place the CM3000HD on a counter near the TV set.
3. Connect the F
connector from one
end of a coaxial jumper
to the F connector on
the antenna. Connect
the F connector from
the other end of a
coaxial jumper to the F
connector on the TV set or Set Top Box/DVR (Fig. 2).
4.
Adjust the position of the antenna as necessary to get
the strongest signals.
5.
Installation is now complete.
Coaxial Cable
Cable coaxial
Câble coaxial
Figure 2
