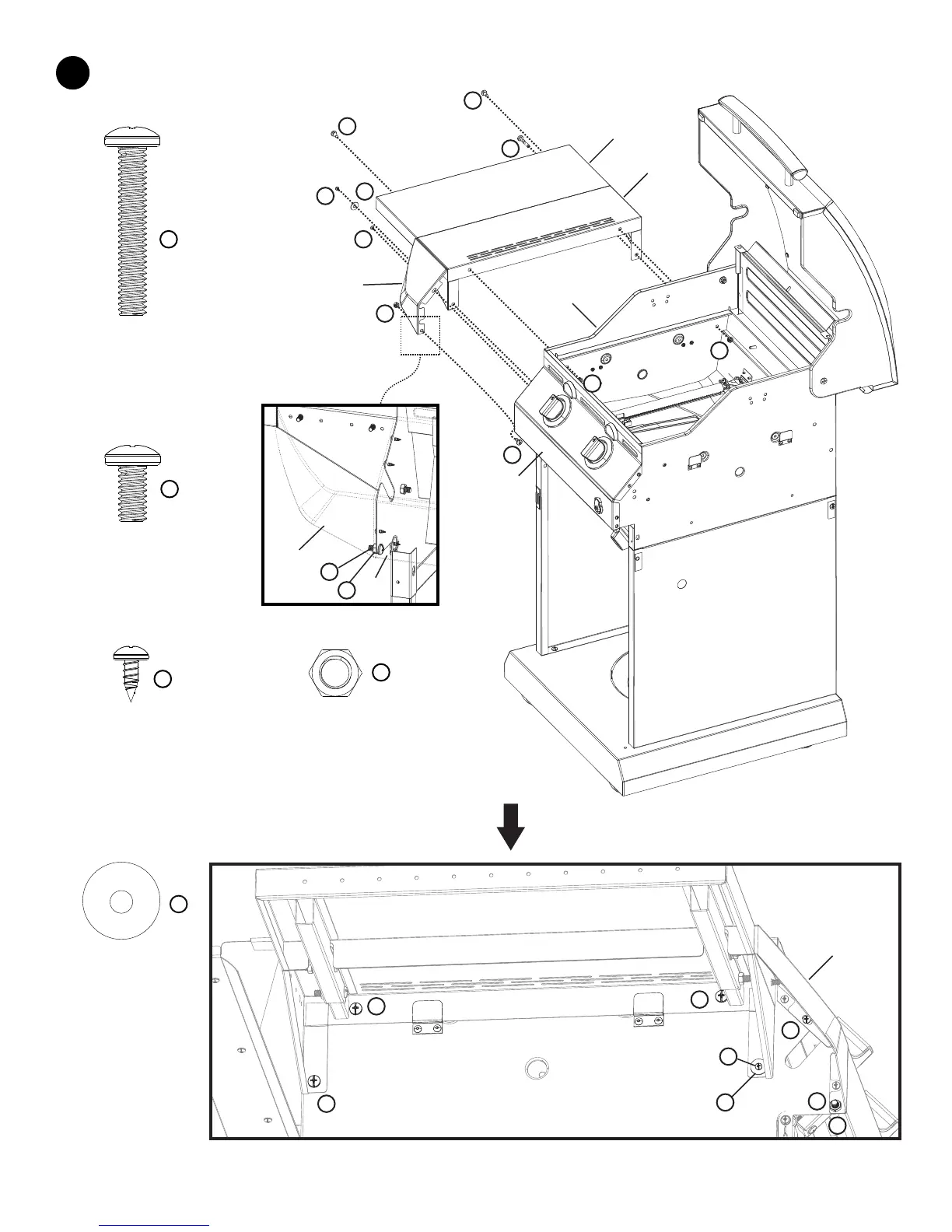

Char-Broil 463270614 Performance T-22D - Assembly Instructions - Panel and Component Attachment; Step 8: Attaching Side Panels and Control Panel

25
8
X2
1/4-20x1 ½" Screw
Qty. 2
Vis ¼-20×1½ po
Qté. 2
Tornillo de 1/4-20 x 1½"
Cant. 2
1/4-20x1/2" Screw
Qty. 6
Vis po1/4-20x1/2
Qté. 6
Tornillo de 1/4-20 x 1/2"
Cant. 6
1/4 Nut
Qty. 6
Écrou de ¼
Qté. 6
Tuerca de 1/4
Cant. 6
#8x3/8" self-tapping Screw
Qty. 4
Vis autotaraudeuse nº 8×3/8 po
Qté. 4
Tornillo autorroscante
No. 8 de 3/8"
Cant. 4
A
B
C
D
A
B
B
B
C
D
D
D
#15
#13
#12
#17
#5
#15
#17
#15
B
D
D
A
B
B
B
C
C
E
E
C
Large Flat Washer
Qty. 2
E
Grande rondelle plate
Qté. 2
Arandela plana grande
Cant. 2
