A. Disengage the parking brake.
B. Insert a wheel axle into an axle socket.
(See image 3)
C. Press the wheel axle fully into the axle socket.
D. Verify that the wheel is securely attached to the
carrier by giving it a sharp pull.
E. Repeat for the other wheel.
F. Using a tire pressure gauge check the air pressure in
each tire. The minimum recommended tire pressure is
30 psi (2.1 bar) and the maximum is 35 psi (2.5 bar).
G. Ifairpressureistoolowineitheroneofthetiresll
them up using a bicycle tire pump.
4.5 InstallInG the Wheels
3
WARNING
Before each journey make sure that both of the
wheels are securely locked in the carrier axle.
GETTING STARTED
4.4 InstallInG the ParkInG Brake
A. Remove the wheels from the chassis.
B. Fold the chassis.
C. Lay the chassis on its roof on a clean sturdy surface.
D. With the screwdriver and 7/16" wrench remove the
locking nut and white nylon washer from the bolt on the
brake lever.
E. Insert the bolt along with the black bushing and brake
lever through the hole at the back of the chassis.

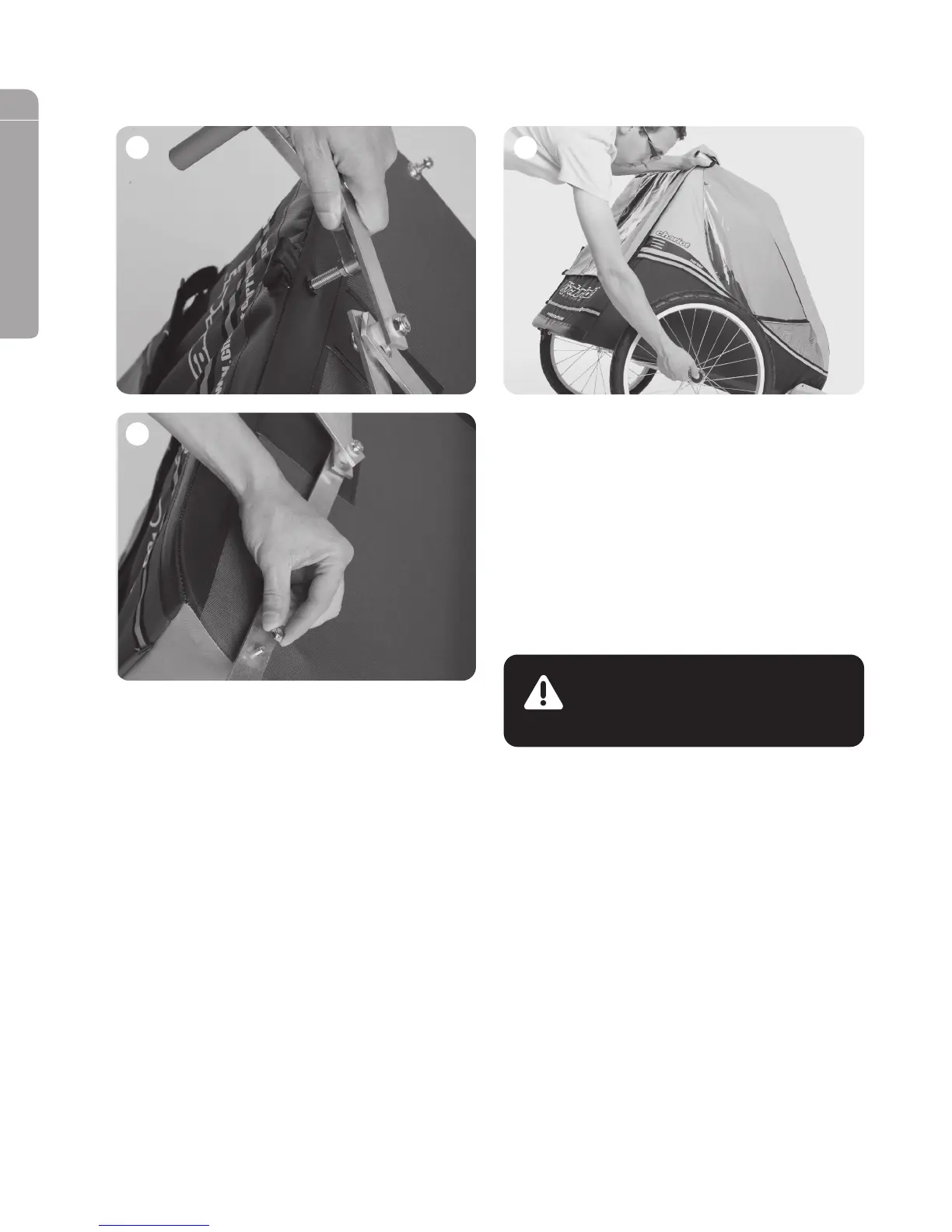

(See image 1)
F. Place the white nylon washer and the nut back onto
the bolt from inside the carrier and tighten it until one
screw thread is exposed.
G. With the wrench remove the locking nuts on both of the
bolts on the back corners of the chassis.
H. Insert the bolts on the back corners of the chassis
through the holes on the brake arms. (See image 2)
I. Place the locking nuts back onto the bolts on the back
corners of the chassis and tighten them until one thread
is exposed. (See image 2)
