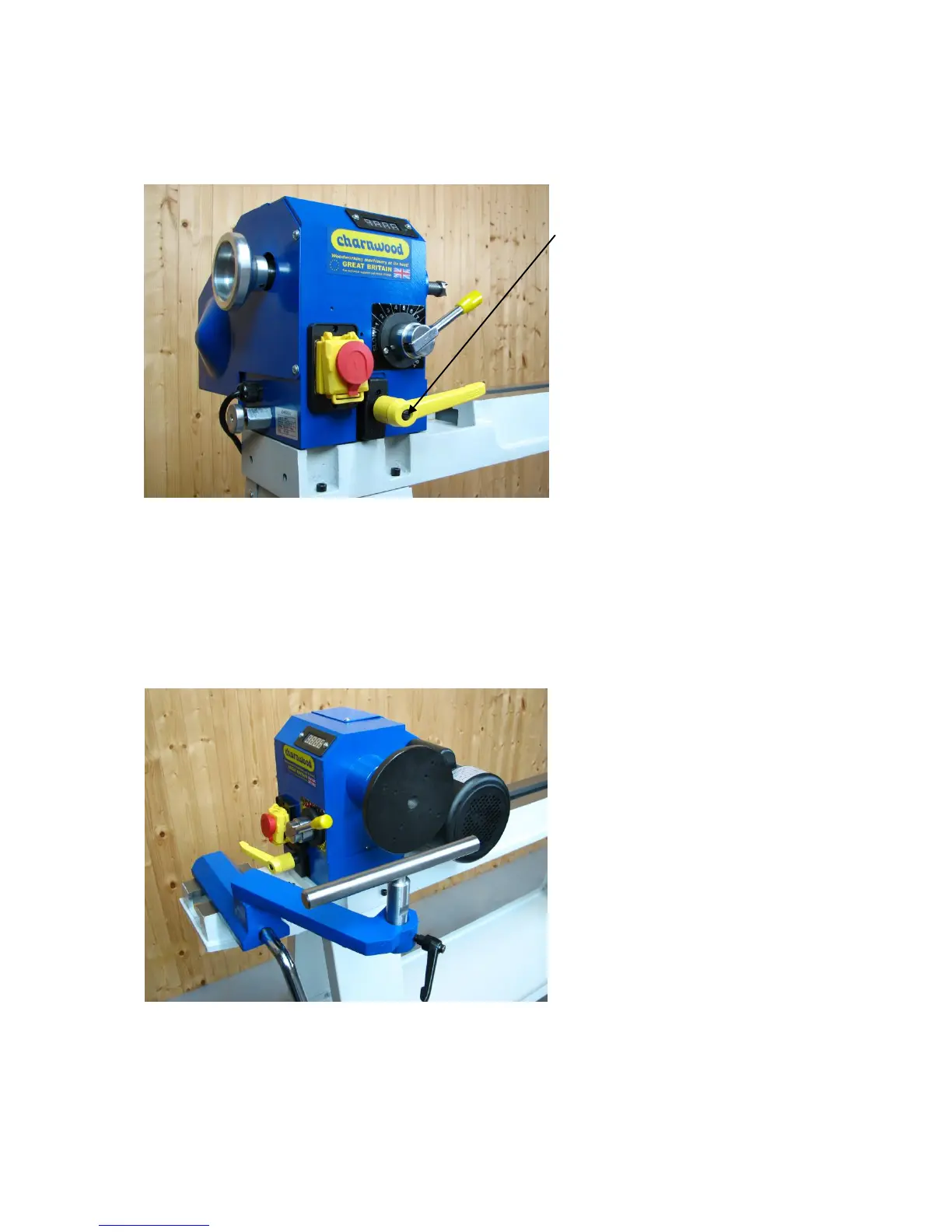

Fit the yellow lever onto the
headstock locking shaft.
Secure it in place with the
spring and fixing screw.
Tighten the fixing screw firmly.
When engaged, this lever will
unlock the headstock. Pull the
lever away from the headstock
to rotate it without engaging the
shaft. In this way the handle
can always be placed in a
convenient position.
Insert the drive centre into the headstock spindle and the tail centre into the tailstock
spindle. These may be removed by inserting the knock out bar into the other end of
the spindle and tapping the centre out. It is advisable to put a hand under the centre
when knocking it out, to prevent the centre from falling to the floor and being
damaged.
Bolt the left hand extension bed
to the headstock end of the
main bed using 2 fixing screws.
The headstock on this model
rotates so that large diameter
bowls can be turned.
The tool rest can be fixed to the
extension bed when using the
headstock rotated to the front,
as shown.
