Installation & Connection
Remote controller

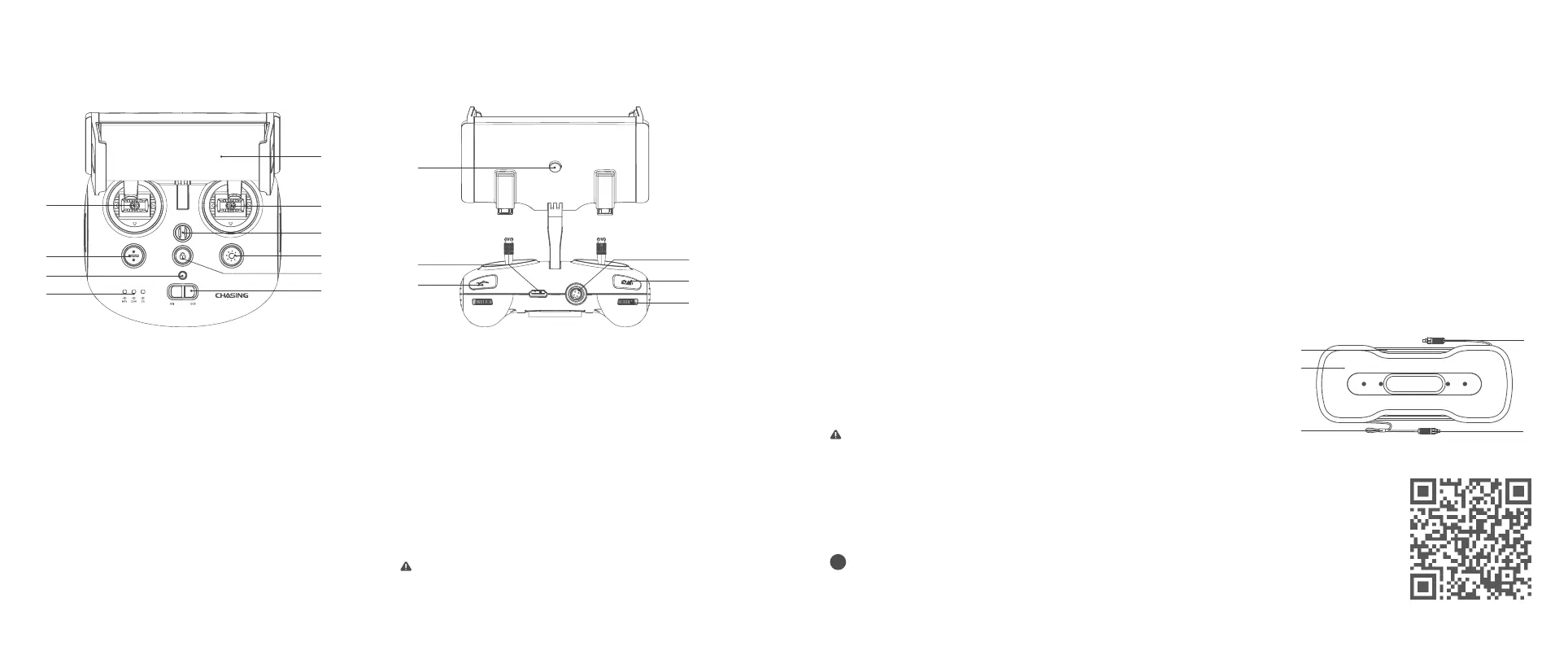

8. Control Sticks：Used to control the navigation of the ROV.
9. Phone/Tablet Clamp：Used to attach phone/tablet mount to
mounting bracket
10. Clamp Button：Pull apart the two ends and put in the phone/
tablet, then press this button to tighten
11. Video/Photo：Press to start/stop video recording or take photo.
12. Video/Photo Mode：Press to switch between video and photo mode.
13. HDMI Socket：1080P HD image real-time output.
14. Tether Connection Socket/Charging socket.
15. Left Angel Adjustment：Adjust the pitch angle.
10
13
11
14
12
15
9
8
7
6
1
3
2
5
8
4
Note: Do not put the controller in the water to avoid damaging
the device, damages caused by water ingress are not covered by
the warranty.
2
4
3
1
1
Download CHASING MINI App1
CHASING MINI App ：(To download，scan the below QR code or visit IOS
App Store/Google Play.（For iOS 9.0/Android 4.4 and above）
1. Power switch: Turns controller on/off.
2. Power Indicator:
Green (High power); Blue (Medium power); Red (Low power）
3. Signal Indicator：
2.4G：2.4Ghz Wi-Fi indicator，always on when working.
5G：5Ghz Wi-Fi indicator，always on when working.
ROV(drone)：Indicates the communication status between the
controller and the drone ( Steady light indicates successful
connection; Blinking light indicates disconnection.)
4. Unlock：Unlock/Lock，current state of the Thruster will show on the APP.
5. One-key reset：Short press to reposition the ROV return to a
horizontal state/ Long press to switch control mode.
6. Led Control：On / off led light (third gear)
7. Safety Buckle：Can be used with a safety rope to prevent the remote
control from falling.
Handle indicators introduction
Battery：
Red：10%↓ Red light flashes quickly；10-19% Red light flashes slowly；20-29% Red light always on.
Blue：30-69% Blue light always on； Green：70-100% Green light always on;
Signal Indicator:
2.4G：2.4Ghz Wi-Fi indicator，always on when working.
5G：5Ghz Wi-Fi indicator，always on when working.
ROV：Indicates the communication status between the controller and the ROV
(Steady light indicates successful connection, Blinking light indicates disconnection.)
Gesture back Button：
The blue light is always on when the ROV is in a non-horizontal position
Unlock Button：Locking: No lights; Unlocking: Blue light on
Led Control Button：Bright light：Blue light always on;Low light: Blue light flash;No light: Blue light off.
100/200 meters Tether & Winder
The tether is used to connect the drone and the remote controller The winder
is used to store the tether.
1. Tether connectors 2. Tether
3. Winder 4. Fastener
1. Do not put exposed (unconnected) tether into the water or plashing
liquid to the tether; 2. Check whether the O-ring on the tether connector
pre-dive, make a replacement when it is missed or damaged.
