Chattanooga Hydrocollator E-2 - NOMENCLATURE; Diagram (CONTINUED); Not illustrated

7

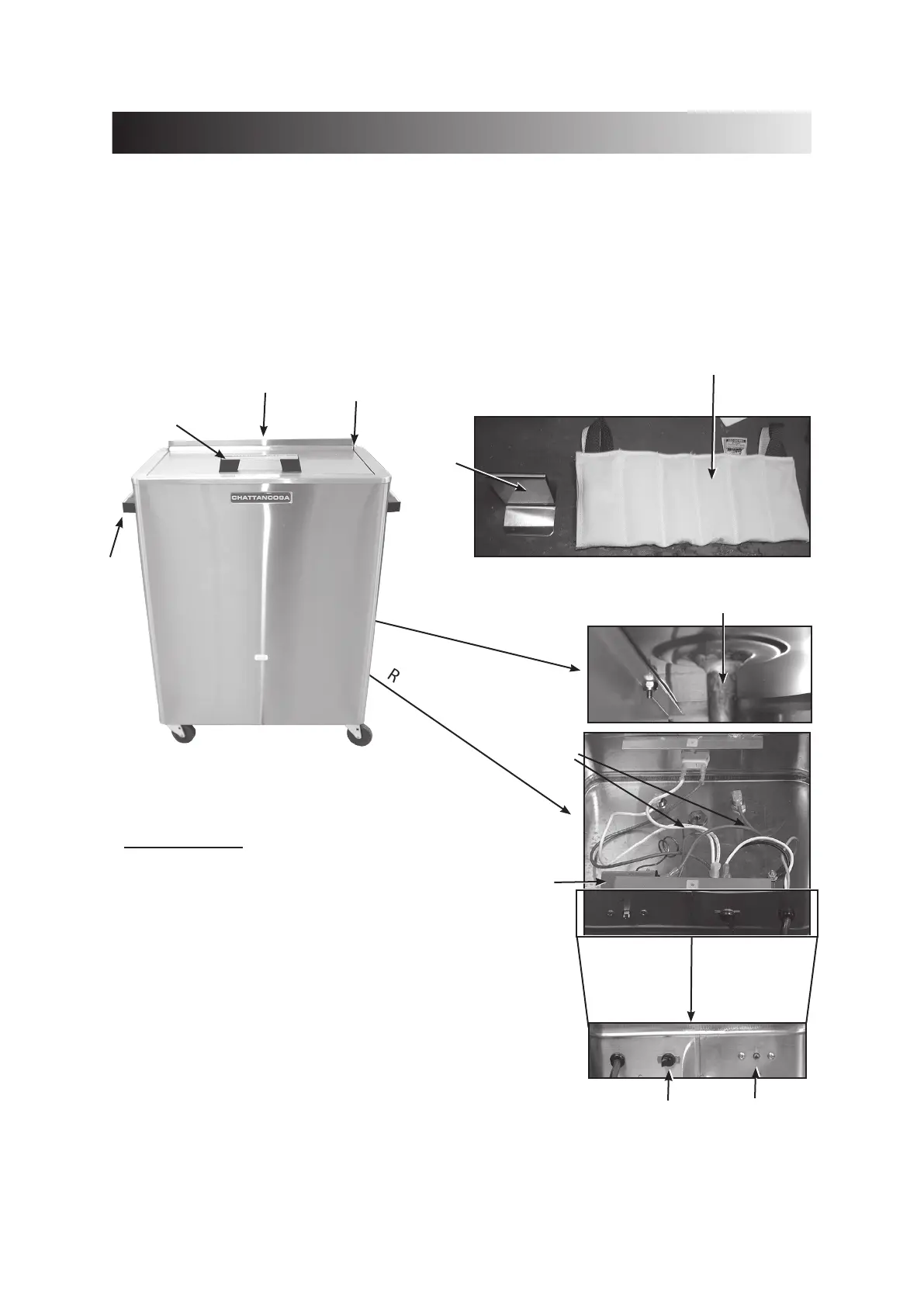

NOMENCLATURE
Rear Close-Up View
(Lower Right Section)
17. HotPac 23. Side Handle
18. Neck Pac Insert 24. Thermostat, Hydraulic
19. Drain, Copper Tube 25. Thermostat Intensity Control
20. Lid Hinge Nuts 26. On/Off Switch
21. Lid Knob/Handle 27. Internal Wiring Harness
22. Lid Hinge
17
18
22
Diagram (CONTINUED)
20
21
23
19
Not illustrated:
28. Stainless Steel Wire Rack
29. DrainValve, Ball - 1/2 in Replacement
30 Drain, Hose, Bib
31. Replacement Tank
32. Outer Jacket
33. Thermo Low water kit
34. Lid Kit Handle
35. Water Thief
36. Bracket, Element Support (2 each) [M-4 only]
37. Plastic Feet
38. 10 amp breaker
39. Drain hose
Rear View (Upside Down)
(J-Box Open)
26 25
24
27
Right Side Up
(Back View)
Hydrocollator
®
Heating Units
