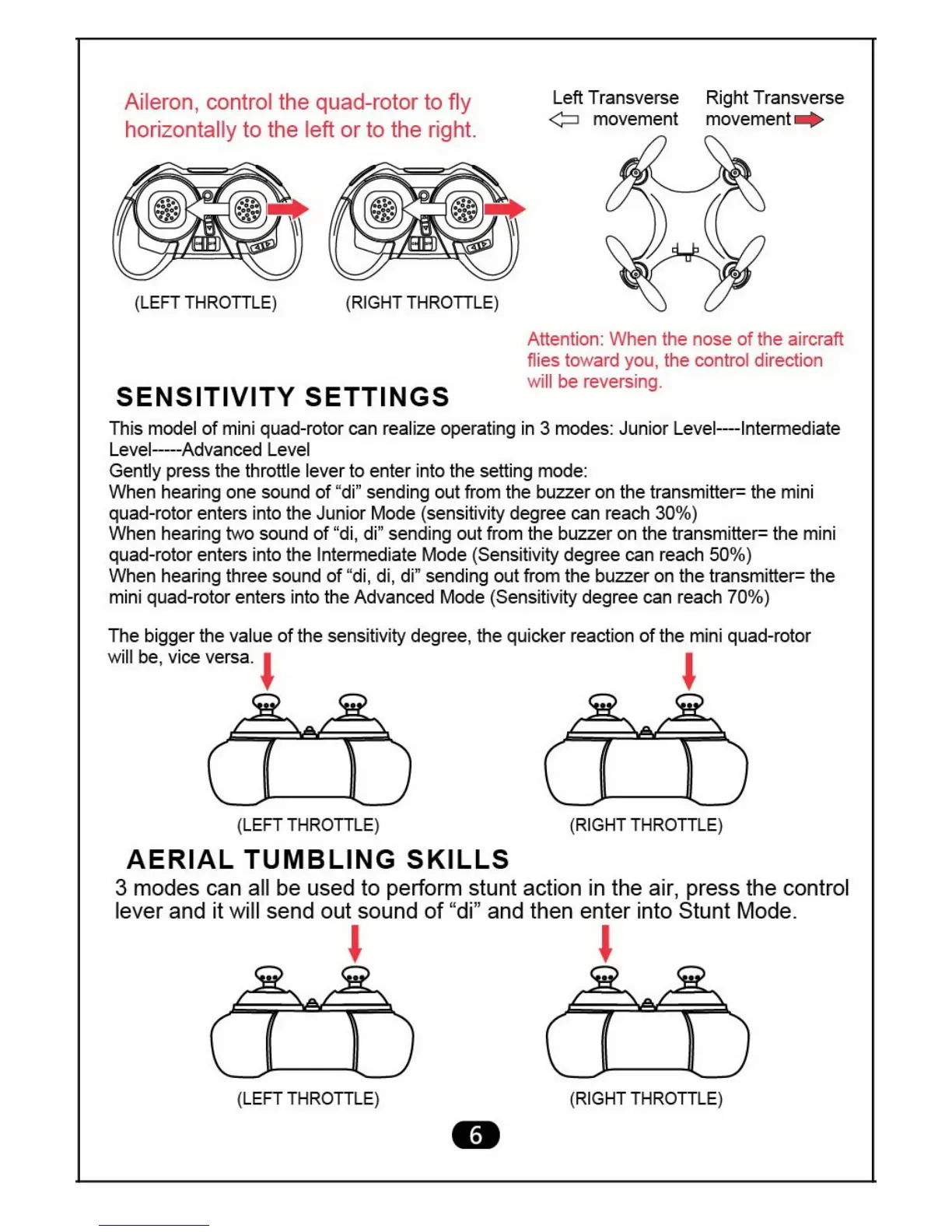

Cheerson CX-10 - Steering and Aileron Control; Sensitivity Settings; Advanced Flight Maneuvers; Performing Stunts

(LEFT THROTTLE)

(RIGHT THROTTLE)
(RIGHT THROTTLE)
Aileron, control the quad-rotor to fly
horizontally to the left or to the right.
Left Transverse Right Transverse
movement movement =>
Attention: When the nose of the aircraft
flies toward you, the control direction
SENSITIVITY SETTINGS

will be reversing.
This model of mini quad-rotor can realize operating in 3 modes: Junior Level---Intermediate
Level  Advanced Level
Gently press the throttle lever to enter into the setting mode:
When hearing one sound of "di" sending out from the buzzer on the transmitter= the mini
quad-rotor enters into the Junior Mode (sensitivity degree can reach 30%)
When hearing two sound of "di, di" sending out from the buzzer on the transmitter= the mini
quad-rotor enters into the Intermediate Mode (Sensitivity degree can reach 50%)
When hearing three sound of "di, di, di" sending out from the buzzer on the transmitter= the
mini quad-rotor enters into the Advanced Mode (Sensitivity degree can reach 70%)
The bigger the value of the sensitivity degree, the quicker reaction of the mini quad-rotor
will be, vice versa.
(LEFT THROTTLE)
AERIAL TUMBLING SKILLS
3 modes can all be used to perform stunt action in the air, press the control
lever and it will send out sound of "di" and then enter into Stunt Mode.
(LEFT THROTTLE) (RIGHT THROTTLE)
