THE G83 TOOL
THIS TOOL IS OBSOLETE; SEE G83A FOR REPLACEMENT
TABLE OF CONTENTS
Description ................................................................................................................................................................................ 1
Specifications for G83 .............................................................................................................................................................. 1
Safety Warnings ....................................................................................................................................................................... 2
How to Use the G83 ................................................................................................................................................................. 3
Maintenance and Repair .......................................................................................................................................................... 3
Fill and Bleed Instructions ........................................................................................................................................................ 4
Trouble Shooting ...................................................................................................................................................................... 4
Overhaul .................................................................................................................................................................................... 5
Air Valve ...................................................................................................................................................................... 5
Head Sub-Assembly ................................................................................................................................................... 5
Handle Sub-Assembly ................................................................................................................................................ 6
G83 Pulling Heads ............................................................................................................................................................. 6 & 7
Cross Section Drawing of G83 ................................................................................................................................................. 8
Parts List for G83 Riveter ......................................................................................................................................................... 9
Exploded View of G83 ............................................................................................................................................................. 10
Declaration of Conformity ........................................................................................................................................ Back Cov er
DESCRIPTION

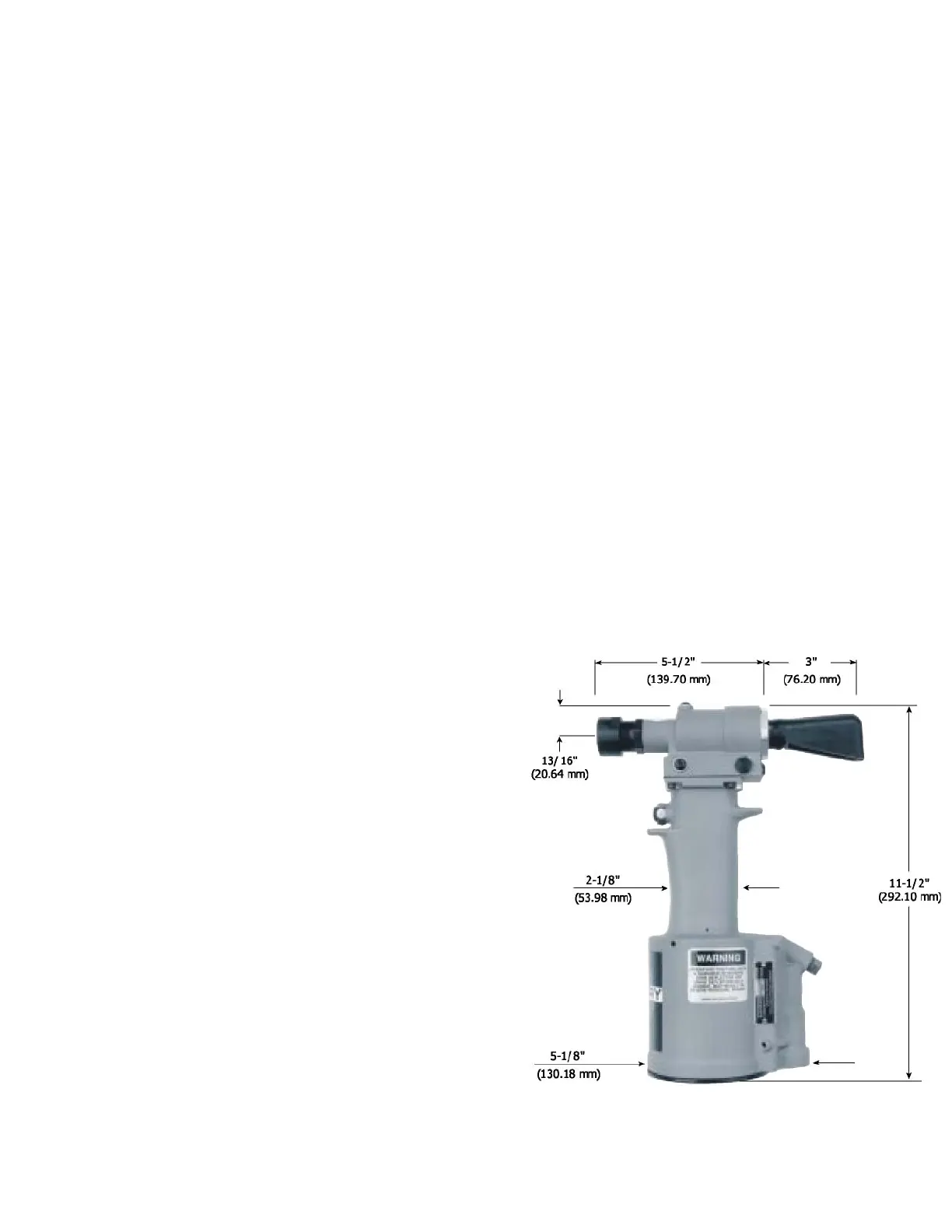

The Cherry G83 pneumatic-hydraulic lockbolt installation tool is a heavy duty production tool designed for high speed, reliable
installation of the most popular sizes of aircraft lockbolts.
This extremely powerful tool has been designed with many
ergonomic features: light weight (4.95 pounds) (2.25 kg.), less
recoil, low noise, and a comfortable fit in the operator’s hand. It can
be operated in any position with one hand.
By bending the rubber pin deflector (63) sideways, 1-1/2" additional
clearance can be obtained.
This tool can also be used to install blind bolts and blind rivets. See
the section on “Pulling Heads” for correct pulling head part number.
SPECIFICATIONS FOR G83
Cherry Aerospace’ (CHERRY) policy is one of continuous
development. Specifications shown in this document may be subject
to change which may be introduced after publication. For the latest
information always consult CHERRY.
AIR PRESSURE 90 to 110 PSI (6.2 to 7.6 bar) .
STROKE 7/16 inch (11.1 mm)
PULLING FORCE 3,750 lbs. (16.7 kN) @ 90 PSI (6.2 bar),
800 lbs. (3.56 kN) on return stroke
CYCLE TIME Approximately one second
WEIGHT 4.95 lbs. (2.25 kg)
NOISE LEVEL 78.4 dB (A)
VIBRATION less than 2.5 m/s
2
AIR CONSUMPTION 0.16 SCF/cycle (4.53 L/cycle)
