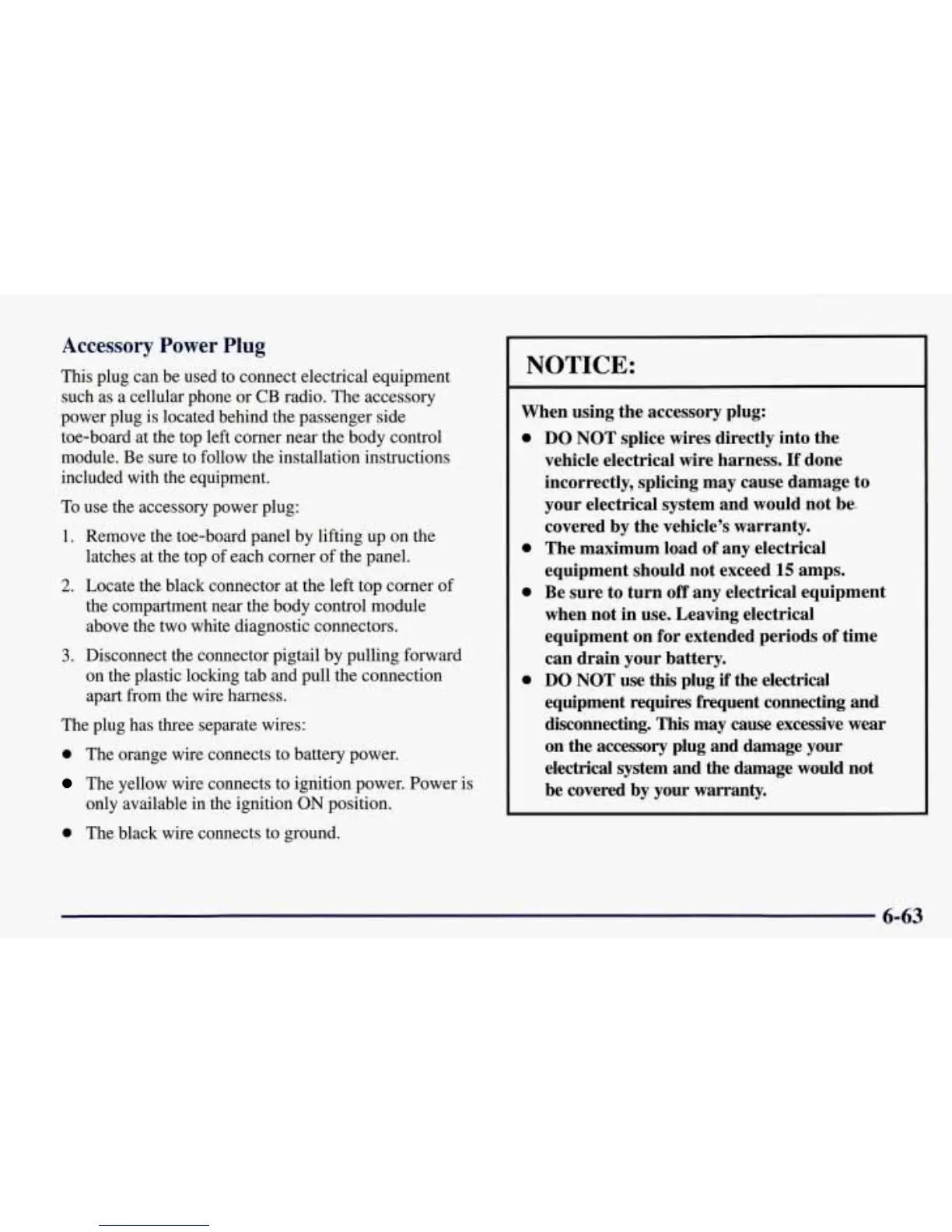

Accessory
Power
Plug
This plug can be used to connect electrical equipment
such as a cellular phone or
CB
radio. The accessory
power plug is located behind the passenger side
toe-board at the top left corner near the body control
module. Be sure to follow the installation instructions
included with the equipment.
To
use the accessory power plug:
1.
Remove the toe-board panel by lifting up on the
latches at the top of each corner of the panel.
2.
Locate the black connector at the left top corner of
the compartment near the body control module
above the two white diagnostic connectors.
3.
Disconnect the connector pigtail by pulling forward
on the plastic locking tab and pull the connection
apart from the wire harness.
The plug has three separate wires:
0
The orange wire connects to battery power.
The yellow wire connects to ignition power. Power is
only available
in
the ignition
ON
position.
0
The black wire connects to ground.
NOTICE:
When using the accessory plug:
0
0
a
a
DO
NOT
splice wires directly into the
vehicle electrical wire harness.
If
done
incorrectly, splicing may cause damage to
your electrical system and would not be,
covered by the vehicle’s warranty.
The maximum load
of
any electrical
equipment should not exceed
15
amps.
Be sure to turn
off
any electrical equipment
when not in use. Leaving electrical
equipment on for extended periods
of
time
can drain your battery.
DO NOT
use this plug
if
the electrical
equipment requires frequent connecting and
disconnecting.
This
may cause excessive wear
on the accessory plug and damage your
electrical system
and
the damage would not
be covered by your warranty.
