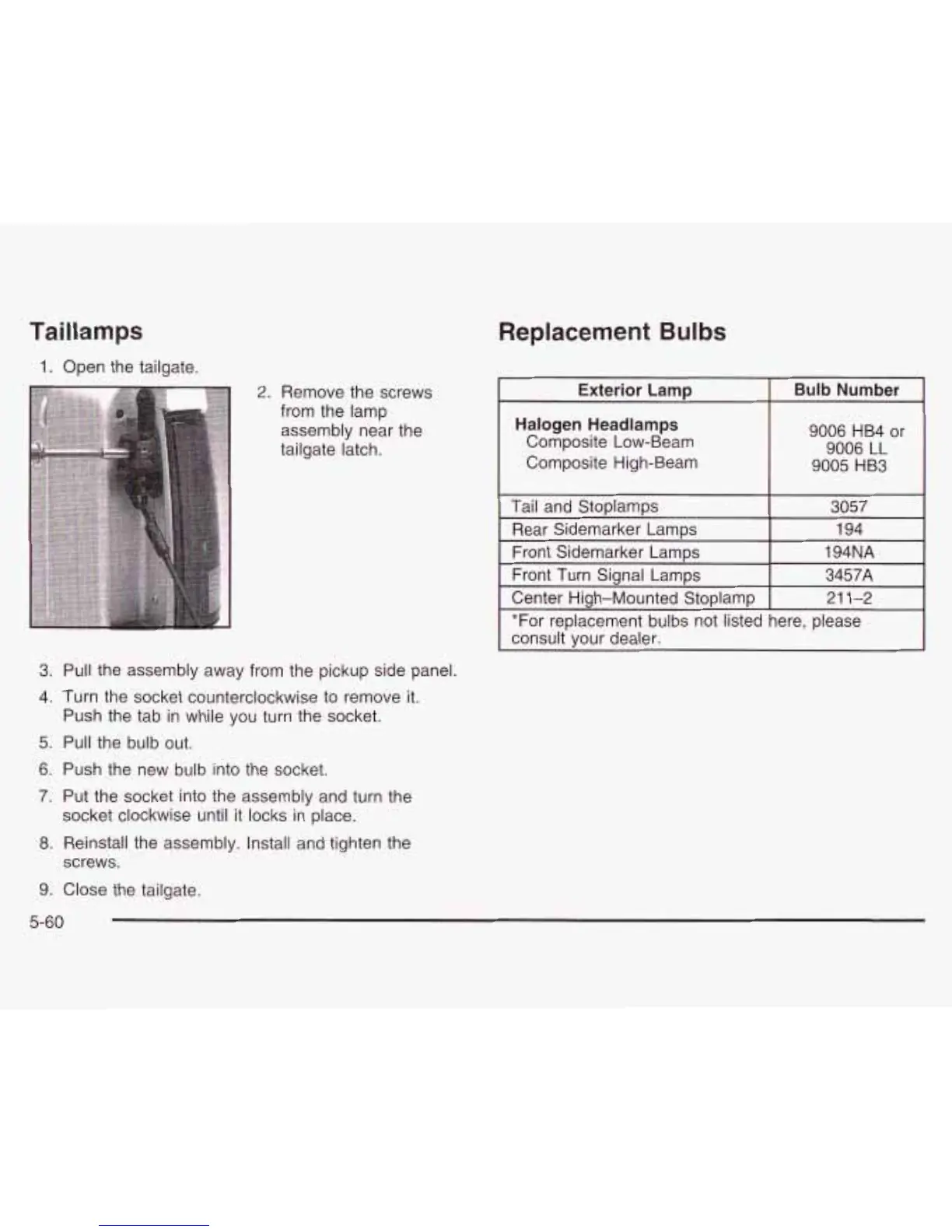

Taillamps
1.
Open the tailgate.
:
2.
Remove the screws
from the lamp
assembly near the
tailgate latch.
Replacement
Bulbs
Exterior Lamp
Bulb Number
Halogen Headlamps
Composite Low-Beam
9006 HB4 or
9006 LL
Composite High-Beam
9005 HB3
Tail and Stoplamps
21
1-2
Center Hiqh-Mounted Stoplamp
3457A
Front Turn Signal Lamps
194NA Front Sidemarker Lamps
1
94
Rear Sidemarker Lamps
3057
*For replacement bulbs not listed here, please
consult your dealer.
3.
4.
5.
6.
7.
8.
9.
Pull the assembly away from the pickup side panel
Turn the socket counterclockwise to remove it.
Push the tab in while you turn the socket.
Pull the bulb out.
Push the new bulb into the socket.
Put the socket into the assembly and turn the
socket clockwise until it locks in place.
Reinstall the assembly. Install and tighten the
screws.
Close the tailgate.
5-60
