2-52

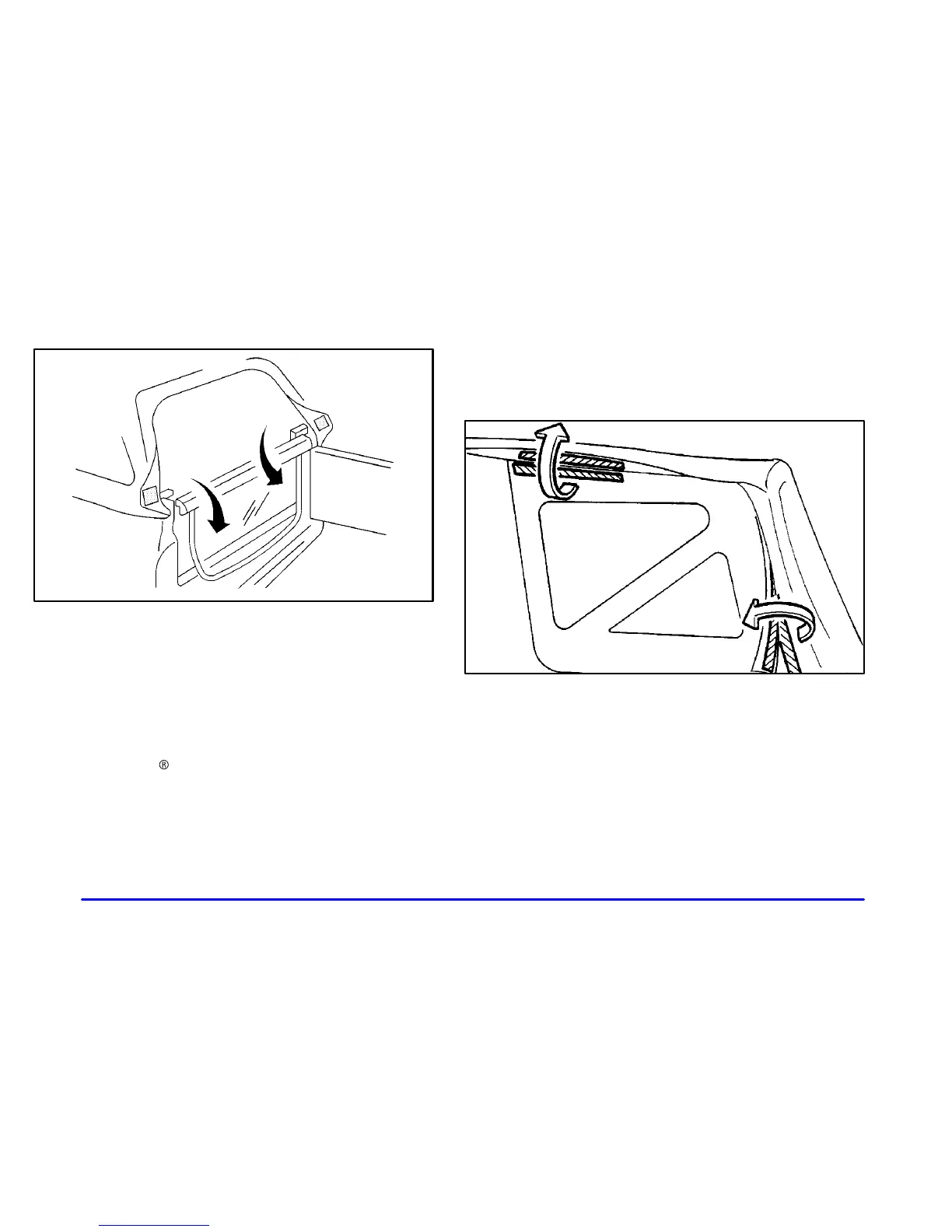

4. Hang the rear window down so it hangs outside of
the vehicle.
5. Pull the rear window frame bar rearward (see
illustration above). Then slide the bar to the left to
remove the window.
Reverse the steps to install the rear window. Make sure
that all the Velcro
R
strips and flaps are correctly
fastened and overlapped. Make sure that the window is
completely closed before driving.
Removing and Installing the Side Window
To remove the side window:
1. Release the tension in the canvas top support arms.
Unfasten the Velcro strips on the top and rear quarter
of the side window.
2. Unzip the zipper almost all the way, leaving about
3 inches (8 cm) of it still zipped and unfasten the
Velcro strips on the inside of the window.
