6-61

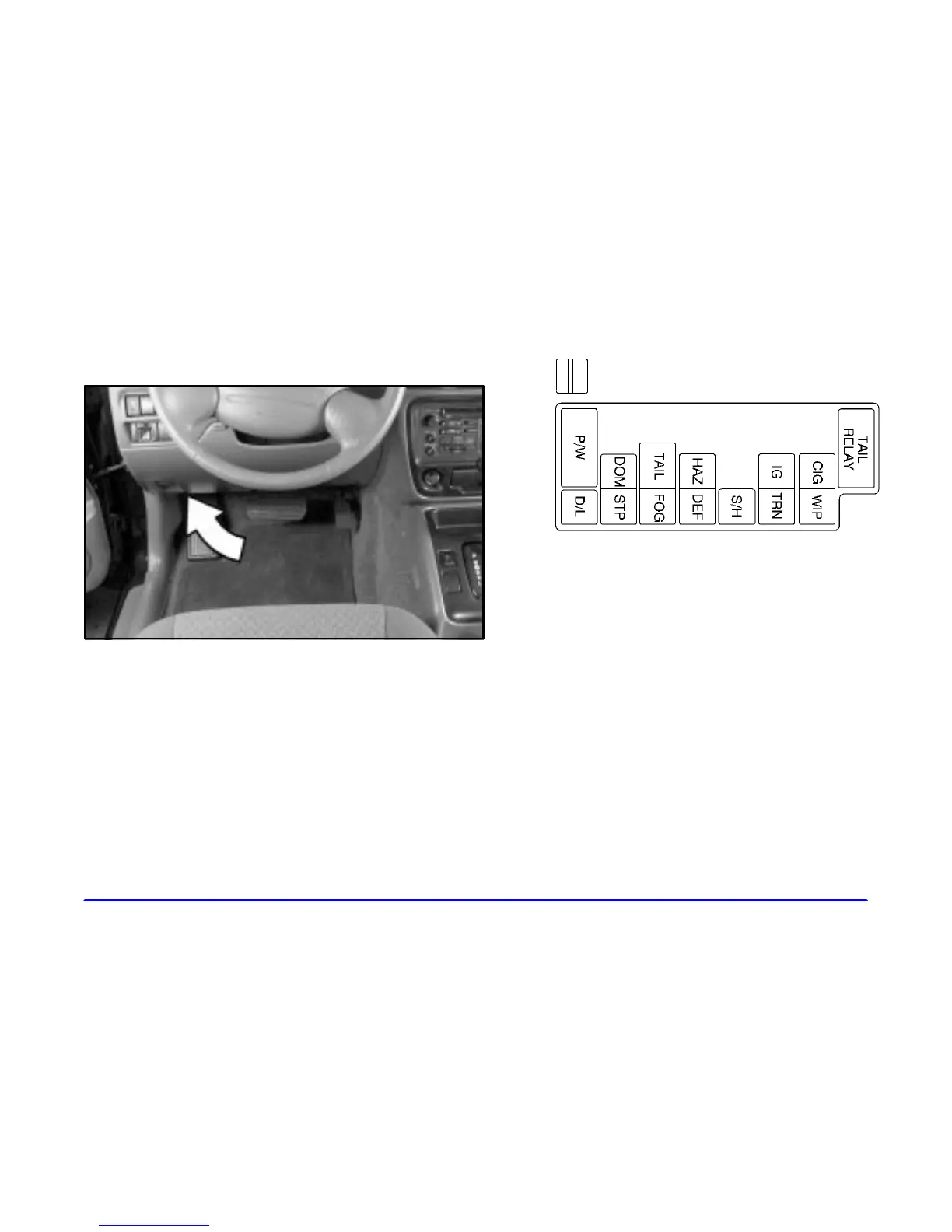

Instrument Panel Fuse Block
This fuse box is under the left side of the instrument
panel. The fuses here protect each separate circuit
including headlamps. If you have electrical failure,
check here first.
Fuse Usage
P/W Power Windows
DOM Dome Light
TAIL License Plate Light, Clearance/Marker
Lights, Instrument Panel Illumination
HAZ Hazard Lights
IG O
2
Sensor Heater, Cruise Control,
Ignition Coil, Meter, G Sensor
To Next Page
