6-62
Fuse Usage
CIG Cigar Lighter, Radio, Power Mirror
D/L Door Locks
STP Brake Light, Horn, Center High
-Mounted
Stop Lamp
FOG Not Used
DEF Rear Window Defogger, DRL
S/H Not Used
TRN Turn Signal, Back
-Up Light
WIP Windshield Wiper/Washer, Rear Window
Wiper/Washer
Please note, fuses for the air bags are located next to the
instrument panel fuse block.

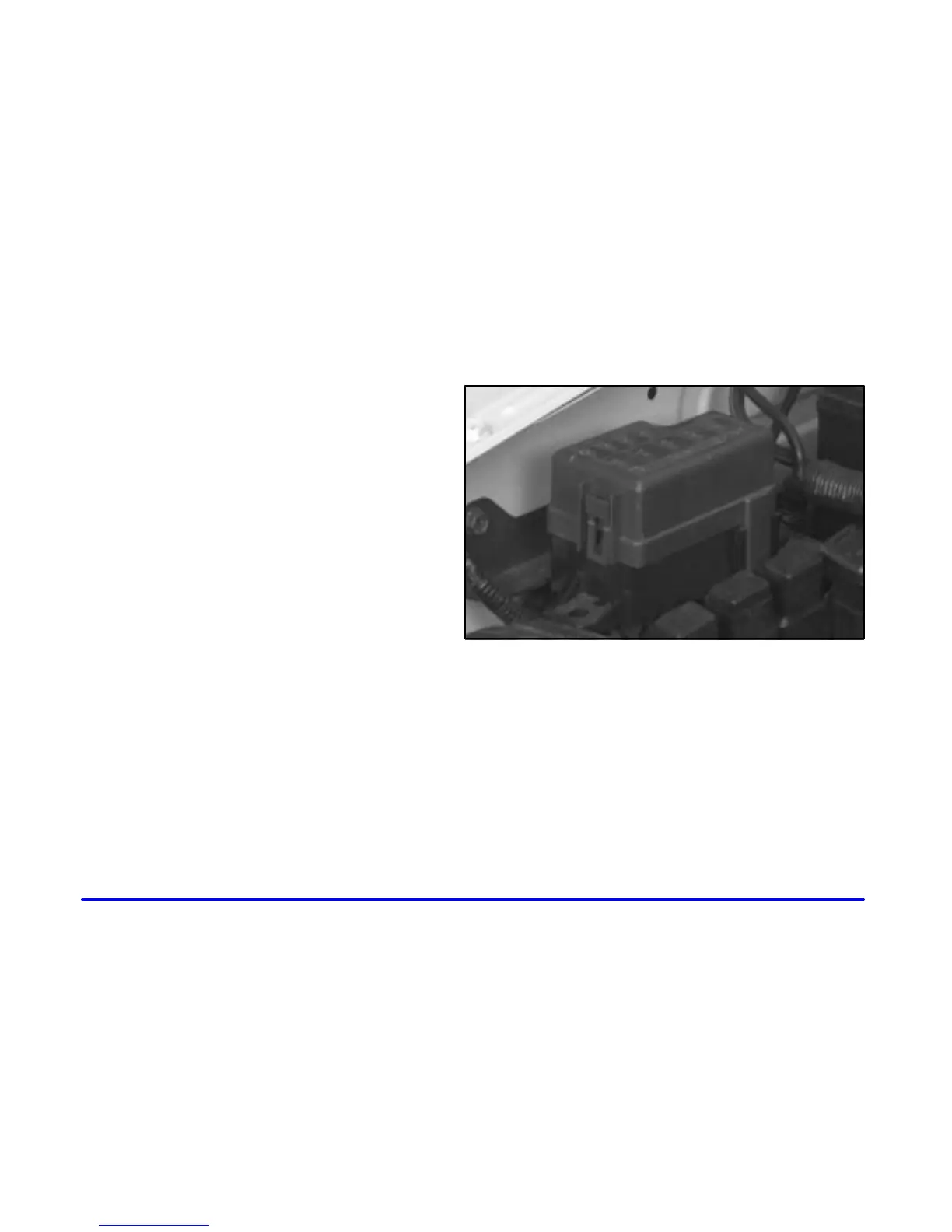

Engine Compartment Fuse Block
The main fuse box in your engine compartment protects
all electrical loads.
For access to the main fuses, pull off the cover. A spare
fuse is also inside the fuse box.
