6-41

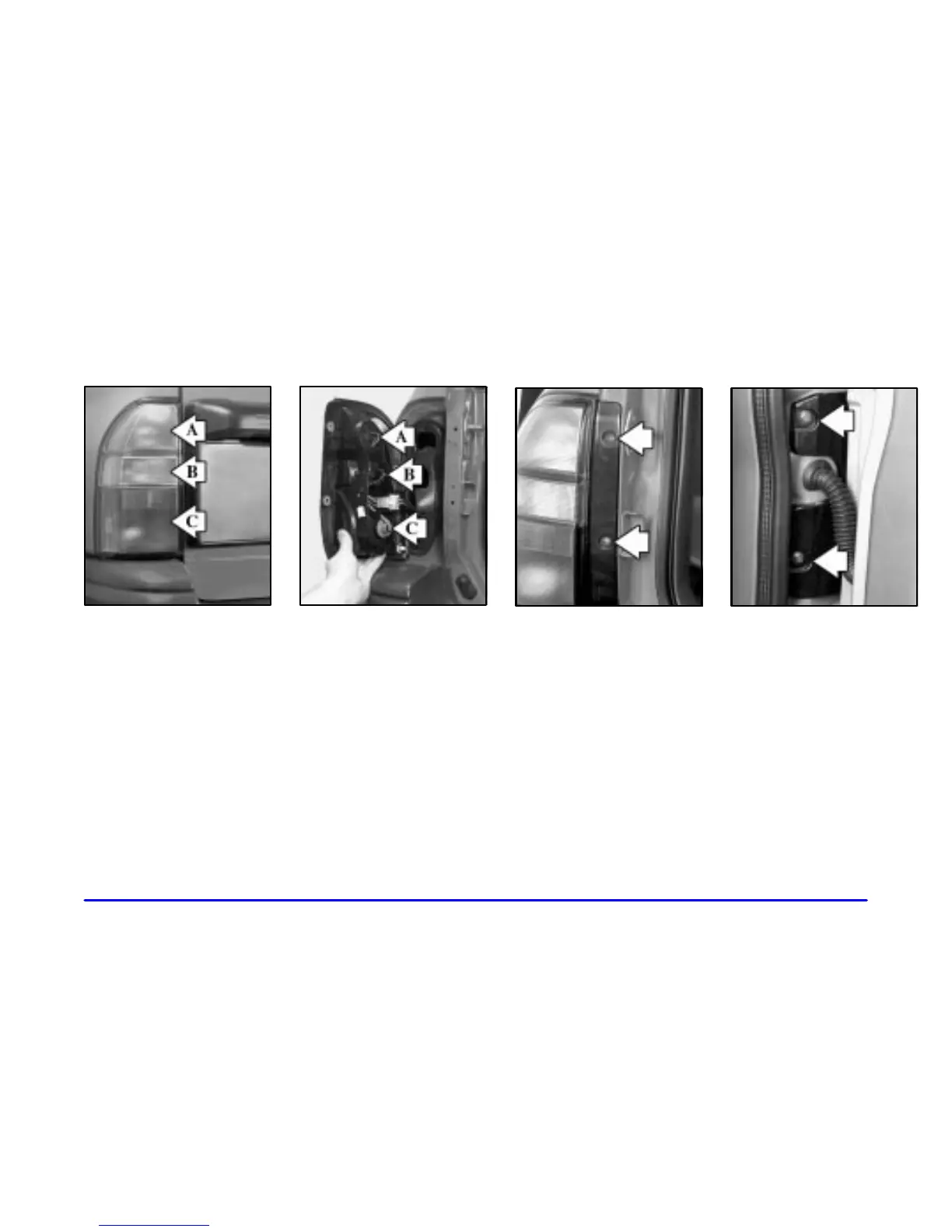

Rear Combination Lamps
A. Turn Signal Lamp
B. Back
-Up Lamp
C. Brake Lamp
To remove the rear combination bulbs:
Driver’s Side Passenger’s Side
1. Remove the two screws from the combination lamps.
Gently pull the housing away from the vehicle.
2. Turn the bulb socket counterclockwise and pull it out
of the lamp housing.
3. Pull the bulb straight out of the socket.
4. Reverse the previous step with a new bulb.
5. Reinstall the housing and the screws.
