Cheyenne Sol Nova - Connecting the Power Unit; Fitting the Protective Hose

26
EN
! Dispose of used safety cartridges that
are no longer required for the current
application (see chapter “Disposal of
equipment” on page31).
! The safety cartridges are supplied
in sterile packaging. Do not remove
them from their packaging until
immediately before you intend to use
them.
! Always place the SOL Nova safely
so that the safety cartridge does
not come into contact with other
surfaces.
! Seek medical attention if injured by
acontaminated needle.
! Switch o the power supply to theSOL
Nova.

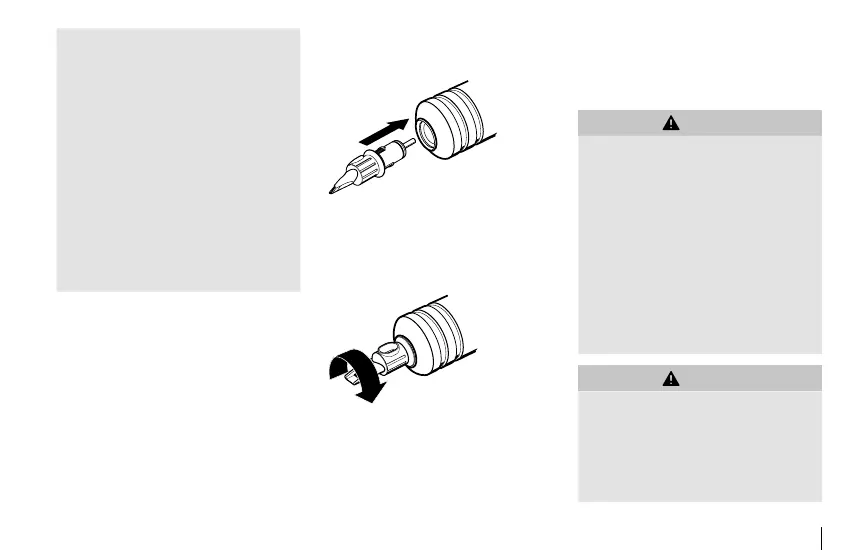

! Insert the safety cartridge in
theopening in the handle, as illustrated
below.
Due to its locating points on the top and
bottom, each safety cartridge can only
fit in the oval opening in two ways.
! Rotate the safety cartridge clockwise
through approx. 45°.
As you rotate it, several locating points
will engage audibly until the safety car-
tridge is firmly locked into position.
! Check that the safety cartridge is firmly
seated.
! To remove the safety cartridge, turn it
anti-clockwise and remove it from the
handle.
5.3 Connecting the power unit
CAUTION
Risk of short circuits
If cable or cable connection is visibly
damaged, there is a risk of damage to
the electronics.
! Perform a visual inspection of the
SOL Nova and the cable for signs of
damage, e.g. a defective cable con-
nection.
! Never bend the connecting cable
while in operation.
! Observe the operating instructions
for the particular power unit.
CAUTION
Cables constitute a trip hazard
People can stumble over inappropri-
ately routed cables and get injured.
! Route all cables so that no-one can
stumble over them or pull them ac-
cidentally.
ca. 45°
Cheyenne SOL Nova
