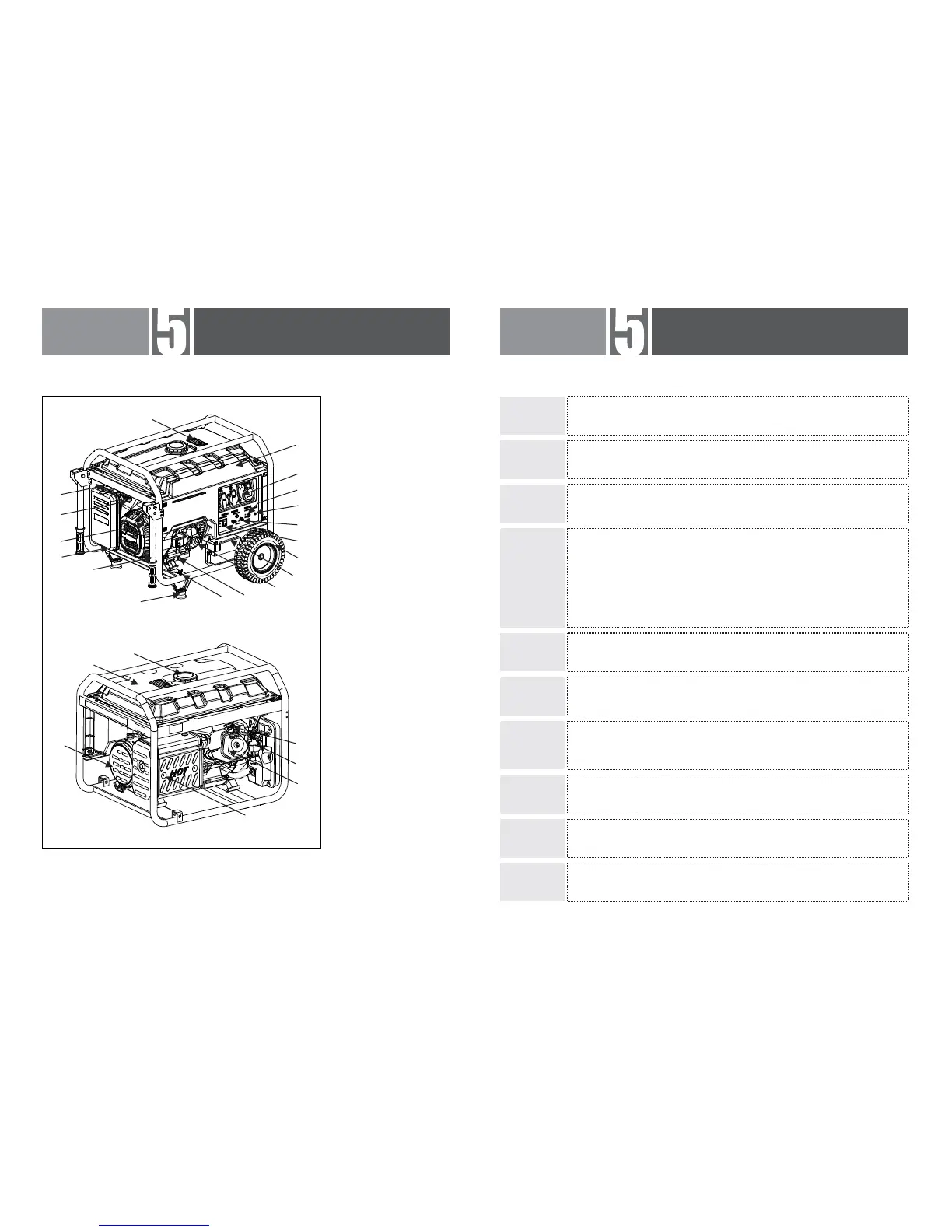

Chicago Pneumatic CPPG2.3 - Description of Spare Parts

Portable Gasoline Generator Operating Instructions
Description of Spare Parts
Description of Spare Parts
(19)
(20)
(21)
(22)
(25)
(24)
(23)
(2)
(1)
(3)
(4)
(5)
(6)
(8)
(9)
(10)
(11)
(12)
(13)
(14)
(15)
(16)
(17)
(18)
(7)
(1) Fuel gauge
(2) Chock valve
3 Fuel valve lever
4 Starter Grip
5
6 Handrail pipe
(7 Foot
(8) Ground terminal
9 Oil drain bolt
10 Oil filler cap
(11)
12 Wheel
13 Engine switch
14 DC output
15 Output indicator
(16
18 Panel seat
19 Fuel tank cap
20 Fuel tank
(21)
Muffler
Cylinder head
24 Carburetor
25 Spark plug
()
()
()
()
)
()
()
Battery (optional)
()
()
()
()
)
(17) AC output
()
()
()
()
()
()
()
Air cleaner
AC circuit breaker
Cover,Generator
End
22
23
1312
AC circuit
breaker
Output
indicator
Portable Gasoline Generator Operating Instructions
Description of Spare Parts
Fuel tank
Fuel tank
cap
Fuel
gauge
AC output
It is used to hold fuel gasoline is allowed only,.
Screw the fuel injection port in use and do not open it in
equipment operation.
It is to indicate fuel level in the fuel tank.
AC output socket provides the power supply Pls refer to
model s parameter table for its rated power load of each
socket cannot exceed its rated current and total power of
electric device cannot surpass rated power of the generator
Do not start up several electric devices simultaneously but
switch on another one after stable operation of one electric
device
.,
'.
,
.
,
.
It will break to protect the electric device when current is
too heavy.
It is to indicate power supply status The indicate will
brighten up when the equipment operation
.
.
DC output
The output DC is 12V with maximum of 8 3A It is only used
for automative battery charging with rated 12V Pay attention
to connecting the positive and negative electrode correctly
..
.
.
Engine
switch
It is to start up applicable to electrical starting only and
switch off the engine Turn to the off state in nonuse
()
..
Wheel
(optional)
It is for moving the generator in a short time.
Battery
(optional)
It is for starting up the generator In case of nonuse for
three months charge it
,
,.
