CHICAGO PUMP HBB - Page 17

Instruction 2111.80B 04/05 17

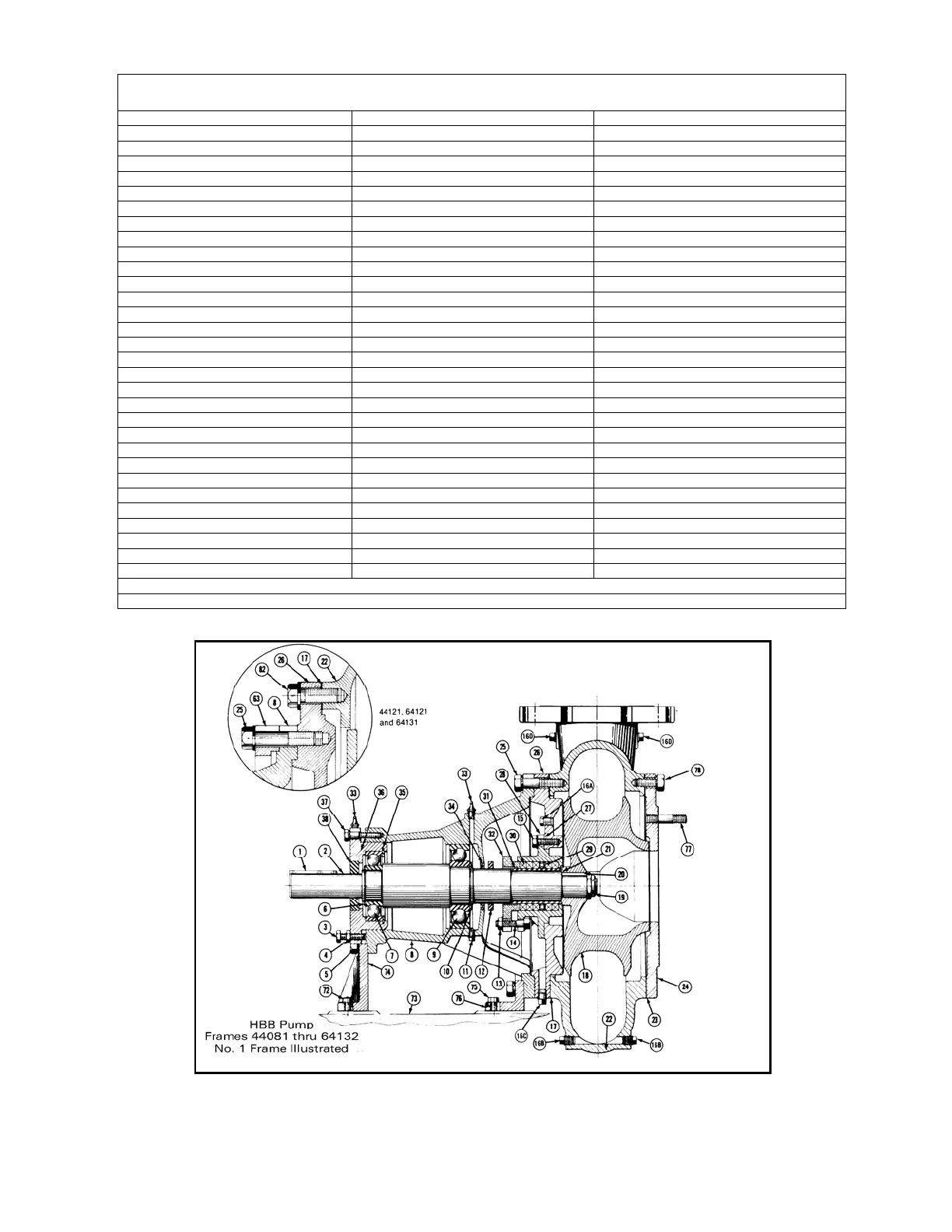

PARTS LIST
1. Coupling Key *23. Gasket 54. Cleanout Cover Gasket
2. Shaft 24. Suction Cover 55. Cleanout Cover
3. Hex. Head Cap Screw 25. Hex Head Cap Screw and Washer 56. Nut and Washer
4. Nut and Washer 26. Back Plate 57. Hex Head Cap Screw
5. Pipe Plug, Grease Relief *27. Gasket 58. Floor Plate
*6. Bearing Lock Nut and Washer 28. Packing Housing 59 Pedestal
*7. Ball Bearing (Duplex Pair on No. 29. Lantern Ring 60. Stud
2 Power Frame) *30. Packing 61. Nut and Washer
8. Power Frame *31. Shaft Sleeve 62. Hex Head Cap Screw and Washer
*9. Ball Bearing (Double Row on No. 32. Packing Gland 63. Motor Pedestal
2 Power Frame) 33. Alemite Fitting 64. Hex Nut
*10. Snap Ring *34. Grease Seal 65. Motor Adapter
11. Pipe Plug, Grease Relief *35. Snap Ring 66. Pump Half Coupling
*12. Water Slinger 36. Bearing Retainer 67. Flexible Insert
13. Gland Nut and Washer 37. Hex Head Cap Screw and Washer 68. Motor Half Coupling
14. Gland Bolt *38. Grease Seal 69. Coupling Set Screw
15. Hex Head Cap Screw and Washer 39. Lower Seal Housing 70. Hex Head Cap Screw and Washer
16. Pipe Plug 40. Upper Seal Housing 71. Motor
(A). Air Vent *41. Seal Assembly 72. Hex Head Cap Screw and Washer
(B). Volute Drain 42. Filter Assembly 73. Base Assembly
(C). Seal Drain *43 Filter Insert 74. Power Frame Foot
(D). Gauge Connections 44. Connector 75. Hex Head Cap Screw and Washer
(E). Water or Grease Seal 45. Elbow 76. Pump Foot
Connection 46. Petcock Assembly 77. Stud
*17. Volute Gasket 47. Tubing 78. Hex Head Cap Screw and Washer
18. Impeller 48. Tubing 82. Hex Head Cap Screw and Washer
19. Lock Nut and Washer 49. Hex Head Cap Screw and Washer 83. Hex Head Cap Screw and Washer
20. Impeller Key *50. Suction Elbow Gasket 84. Bearing Retainer Cap
21. Non-Hardening Gasket 51. Suction Elbow 85. Bearing Retainer Sleeve
Compound 52. Nut and Washer 86. Socket Head Cap Screw
22. Volute 53. Hex Head Cap Screw
(*) Recommended Spare Parts List
