Installation Instructions OLCB1U
3

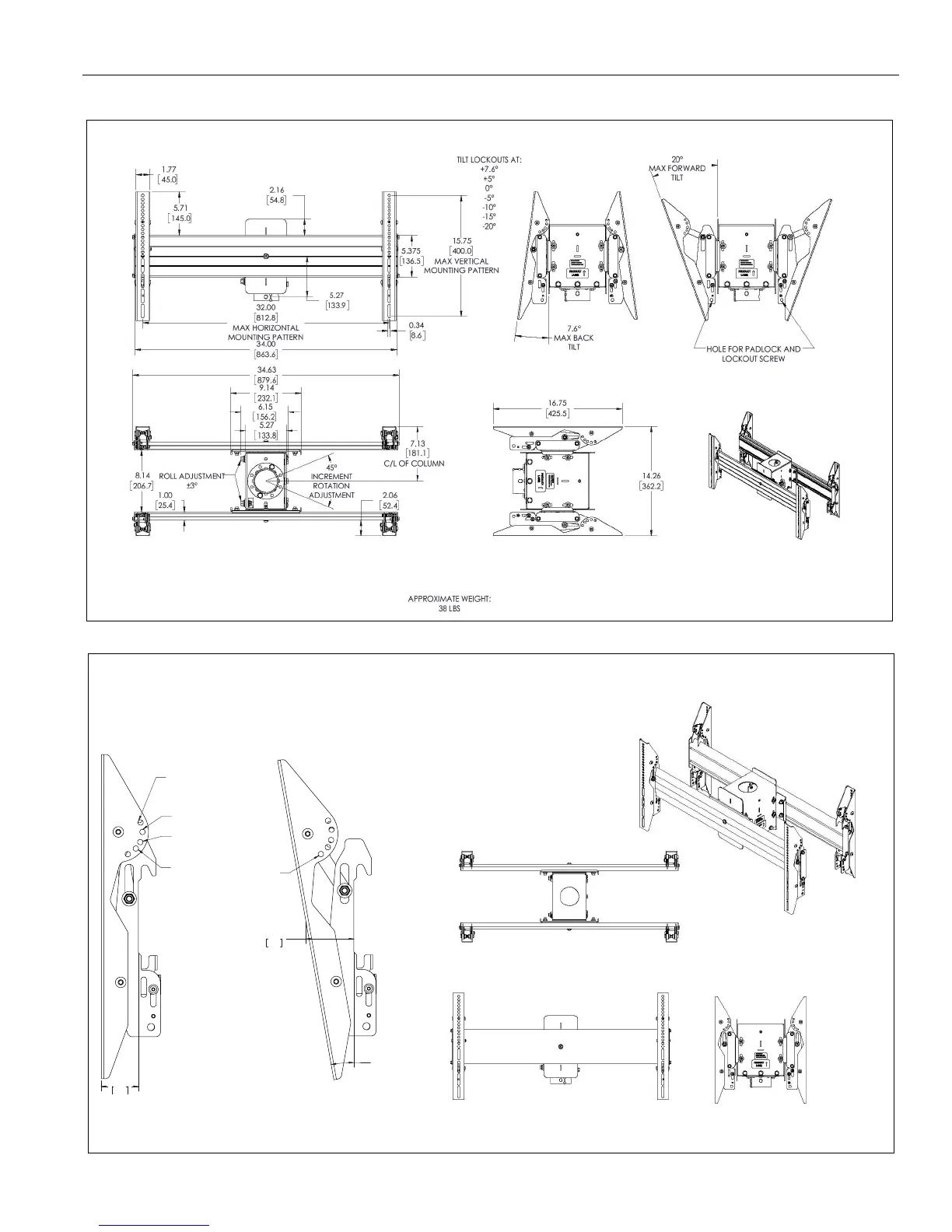

DIMENSIONS
DIMENSIONS: INCHES
[MILLIMETERS]
1.91
48.4
0° HOLE
LOCKOUT
+5°AND -15°
HOLE LOCKOUT
-5° AND -20°
HOLE LOCKOUT
+7.6° HOLE
LOCKOUT
- 10°
2.48
63.0
-10° HOLE
LOCKOUT
