OLCB1U Installation Instructions
6
INSTALLATION
IMPORTANT ! : The following procedure assumes that:
• a UL Listed ODAC Series Floor/Ceiling Column
(not included) has been properly installed
following instructions provided with plate and
pipe.
Attaching Mount to ODAC Series Column
CAUTION: WATCH FOR PINCH POINTS! Do not place
fingers between movable parts.

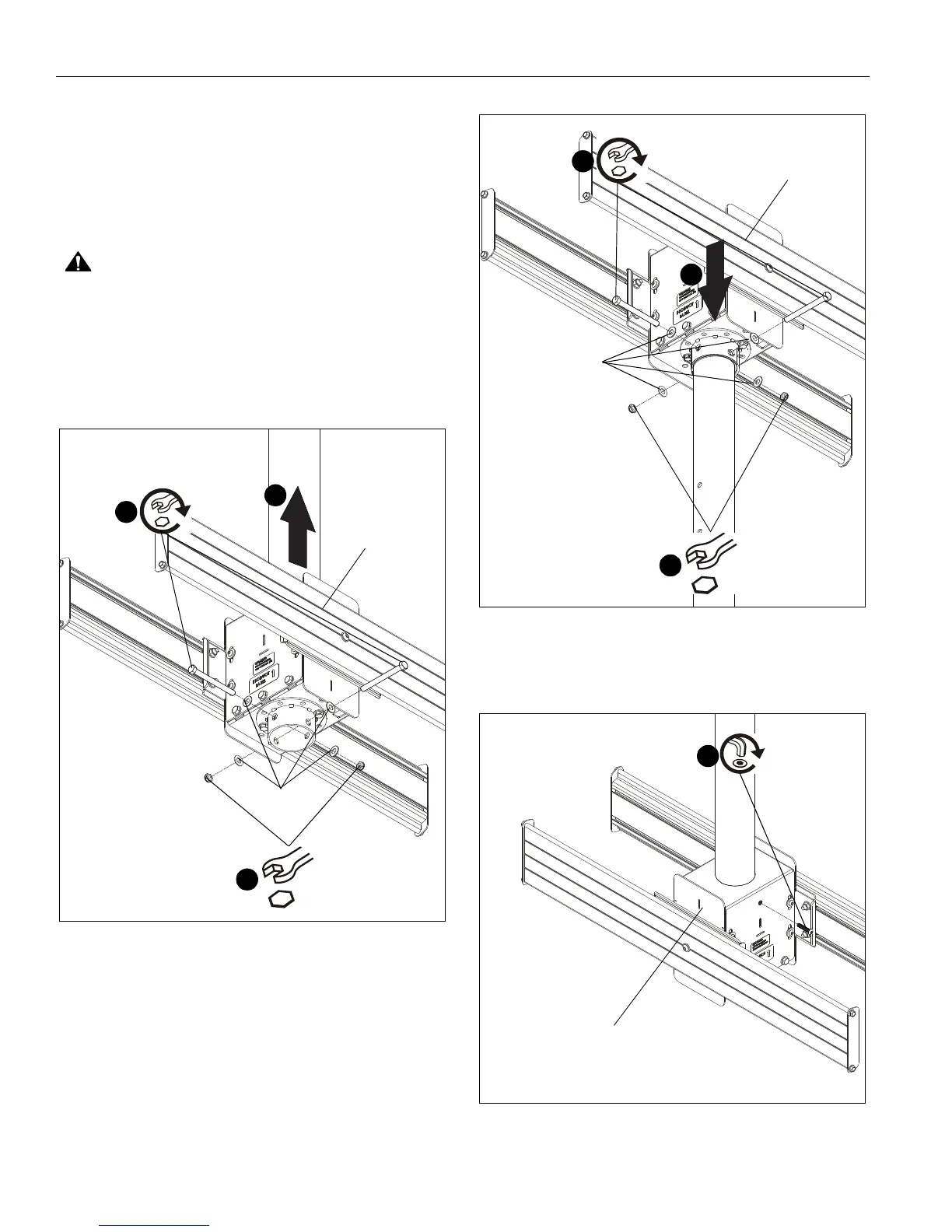

1. Slide mount assembly (H) onto ODAC Series Floor/Ceiling
Column. (See Figure 1) or (See Figure 2)
2. Use two 3/8-16 x 4" hex head tapping bolts (U), four 3/8"
washers (W) and 3/8-16 hex nuts (V). (See Figure 1) or
(See Figure 2)
Figure 1
Figure 2
3. Install 1/4-20 x 1 1/4" button head cap screw (J) into mount
assembly (H) to prevent column from rattling. (See Figure 3)
Figure 3
1
2
(U) x 2
(W) x 4
(V) x 2
2
(H)
(To Ceiling)
1
2
(U) x 2
(W) x 4
(V) x 2
2
(H)
(To Floor)
(J)
3
(H)
