OXCM1U Installation Instructions
8

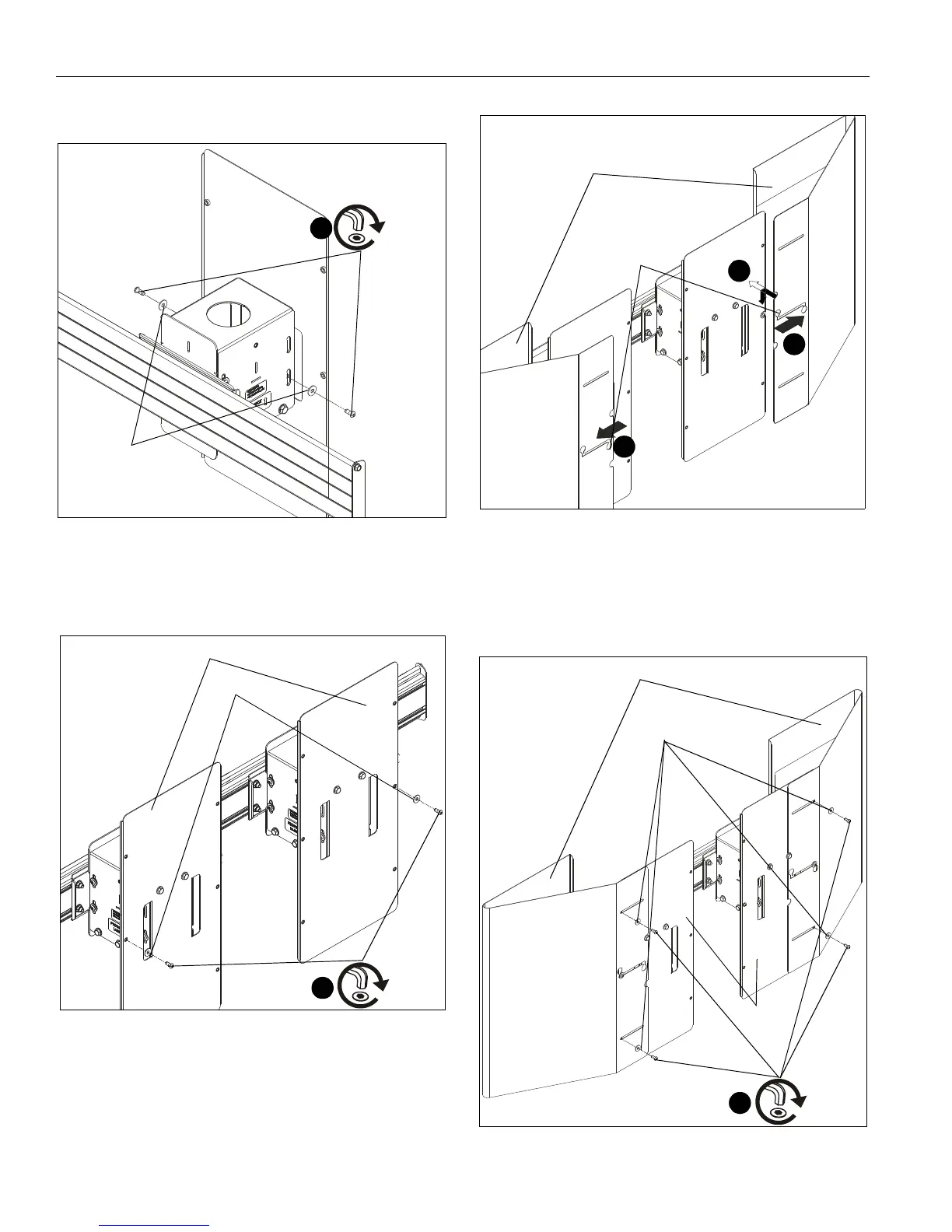

2. Use two 1/4-20 x 5/8" cap screws (Z) and two 1/4" washers
(DD) to secure center wind shield (K) to sides of each mount
assembly (H). (See Figure 9)
Figure 9
3. Loosely install two 1/4-20 x 5/8" button head cap screws (Z)
and two 1/4" washers (DD) into two outside center holes on
center wind shields (K). (See Figure 10)
Figure 10
4. Hang two side wind shields (J) onto screws loosely installed
in Step 3 using teardrop holes in center slots. (See Figure
11)
5. Slide wind shields (J) horizontally to desired mounting
position. (See Figure 11)
Figure 11
6. Use four 1/4-20 x 5/8" button head cap screws (Z) and four
1/4" washers (DD) to secure two side wind shields (J) to two
center wind shields (K). (See Figure 12)
7. Tighten all six screws (Z).
Figure 12
(Z) x 2
2
(DD) x 2
(Z) x 2
3
(DD) x 2
(K) x 2
(J) x 2
4
5
5
teardrop holes
6
(DD) x 4
(K) x 2
(Z) x 4
(J) x 2
