CHIEF PSMH2482 - Display Installation

Installation Instructions PSMH2482
5

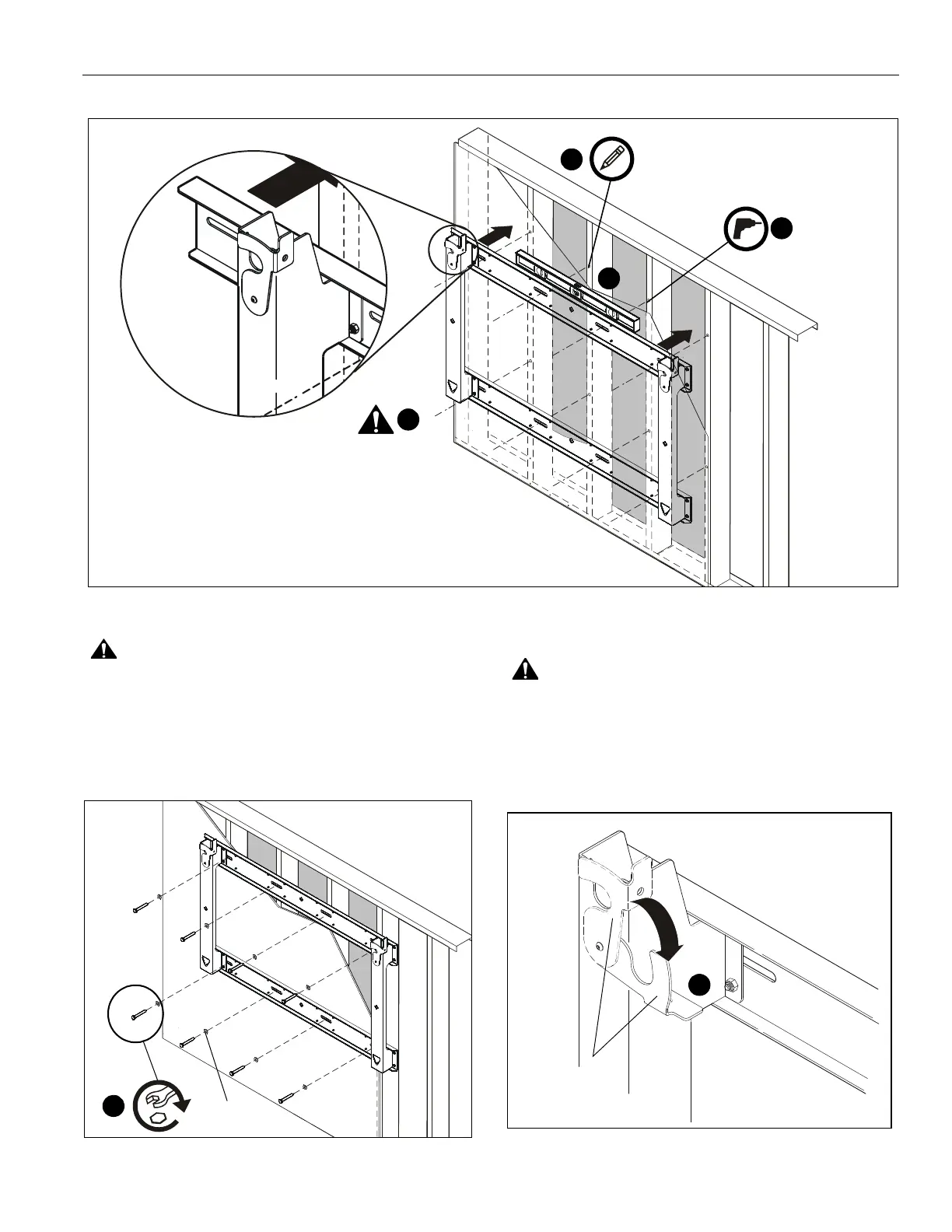

Figure 3
3
1
2
4
CAUTION: IMPROPER INSTALLATION CAN LEAD TO
MOUNT FALLING CAUSING SERIOUS PERSONAL INJURY
OR DAMAGE TO EQUIPMENT! DO NOT overtighten
hardware!
5. Secure mount to studs using appropriate hardware for
mounting surface and eight 3/8" washers (H). (See Figure 4)
Figure 4
Display Installation
WARNING: IMPROPER INSTALLATION CAN LEAD TO
MOUNT FALLING CAUSING SERIOUS PERSONAL INJURY
OR DAMAGE TO EQUIPMENT! DO NOT substitute
hardware.
1. Move locking flags (G) on mount to the OPEN position. (See
Figure 5)
Figure 5
5
(H) x 8
OPEN
1
(G) X 2
