Chiltrix CX50 - Control Board and Component Locator; Identifying PCB Components and Connectors; Specific Wiring Connections

Chiltrix Inc. www.chiltrix.com

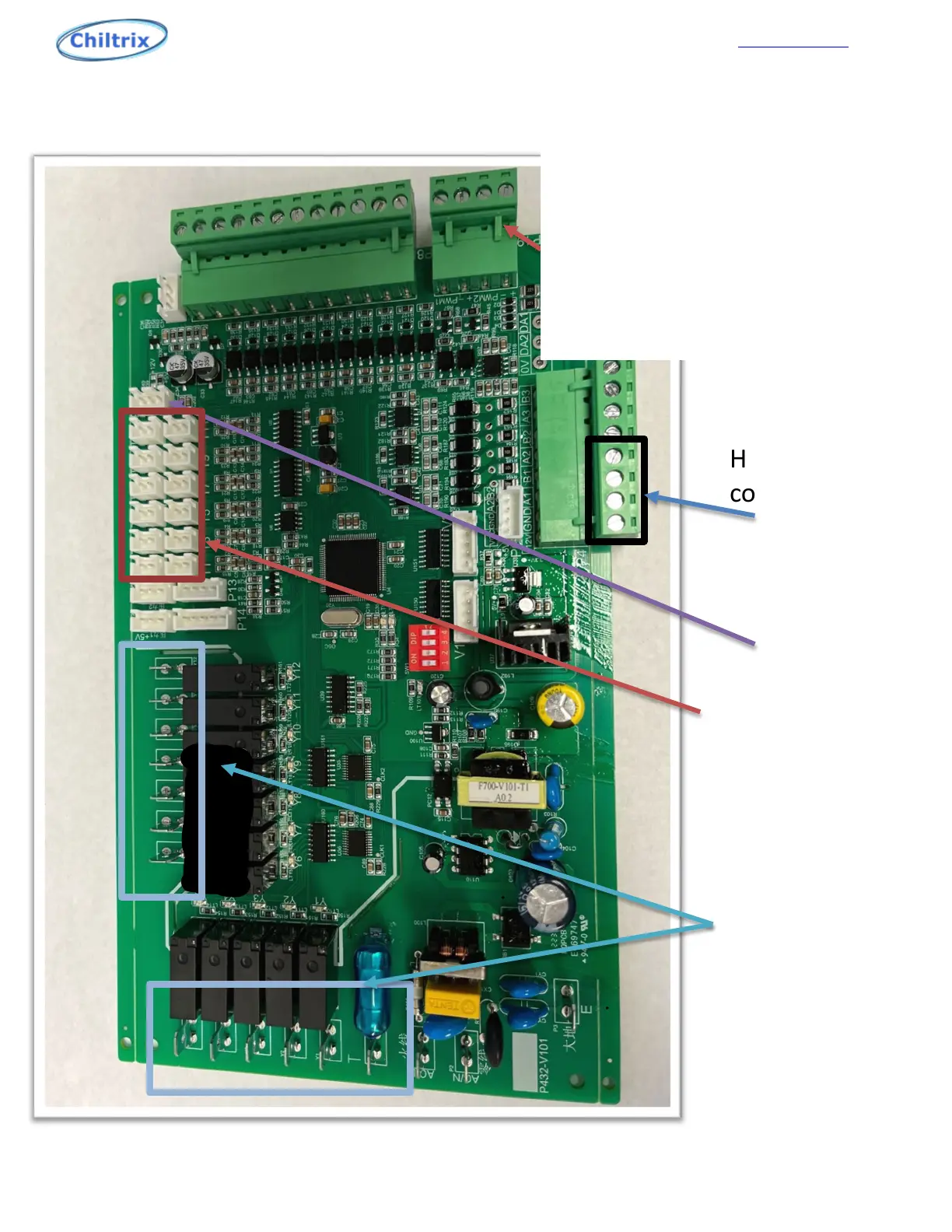

Electric Connections and Component Locator
18
HMI
controller plug in
C4 Pump and
V18 SSR connections
C4=> Blue is Negative(1)
Brown is positive (2)
V18 SSR=> Black wire to
negative(3)
Red wire to positive (4)
1
2 3 4
Waterflow
Sensor plug
Outputs: E2,
4way valve, bypass,
Ect.
Temp sensors
