CHINT NS2-80 User Manual

06

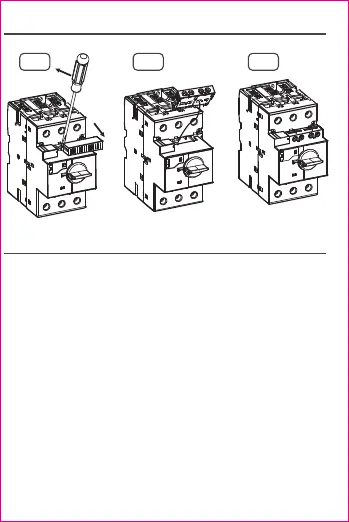

Step1 Step2 Step3
Figure 4 Assembly method of NS2-AE
See Figure 5 for assembly procedure of starter and auxiliary contacts
when the starter is disconnected:
Confirm the starter is disconnected ;
Step1:Hang the front end of the auxiliary contacts on the slot at the left
front of the starter and move the auxiliary contacts towards the starter;
Step2:Before the extension bar at the center of the auxiliary contacts
touches the starter, use a screwdriver to push the central slot of the auxiliary
contacts so it stays at the top; Push the auxiliary contacts towards the
starter, press and hold the blue button at the end of the auxiliary contacts
and fit it into the starter;
Step3:After fitting the auxiliary contacts, break and make the starter for
5 – 10 times, check if the slot at the center of the auxiliary contacts can
move together with the starter reliably. In the meantime, check if the
auxiliary contacts are powered-on normally; if there is any abnormality,
repeat step1 – step3).

CHINT NS2-80 Specifications

General

Brand	CHINT
Model	NS2-80
Category	Controller
Language	English
