NVF5 Series User Manual Chapter 3 Installation and Wiring

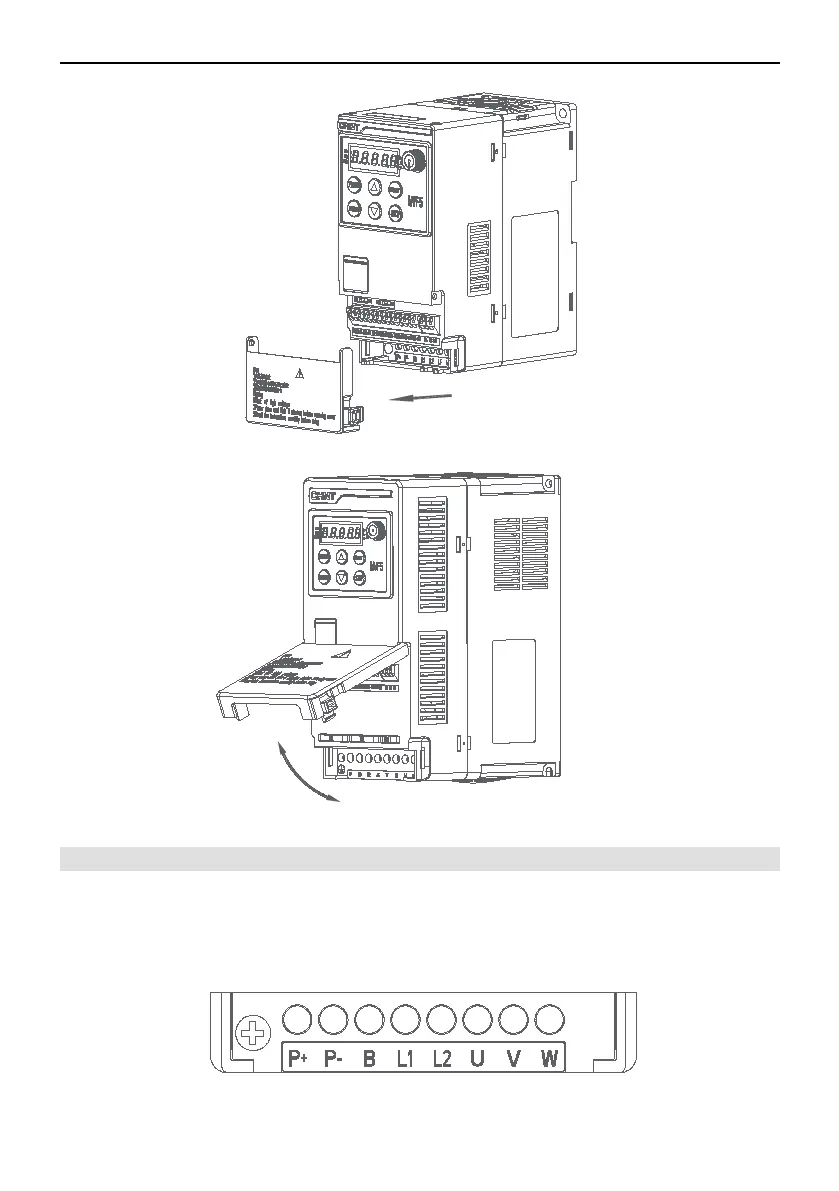

Figure 3-4-1 NVF5-0.4/TD2 ～ NVF5-2.2/TS4-B Cover Diagram
Figure 3-4-2 NVF5-3.7/TS4-B～NVF5-7.5/TS4-B Cover Diagram
3.5 Wiring of Power Terminal and I/O Terminal
3.5.1 Power Terminal Description
NVF5-0.4/TD2~ NVF5-2.2/TS4-B Screwdriver can only be used PH0 most ，
NVF5-3.7/TS4-B~ NVF5-7.5/TS4-B Screwdriver can only be used PH1 most.
（1）Single-Phase 230V series（NVF5-0.4/TD2～2.2/TD2）
Figure 3-5-1 Power Terminals NVF5-0.4/TD2～2.2/TD2
