NXZ Automatic Transfer Switch
08

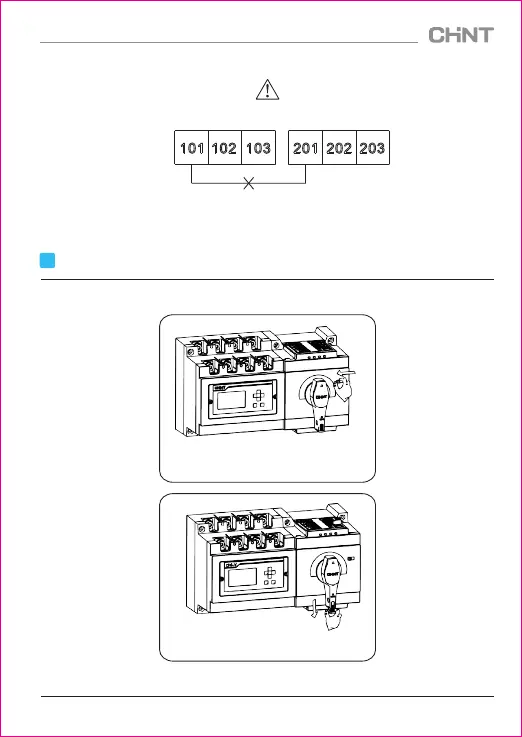

1. Any form of electrical connection is prohibited between the two groups of terminals; otherwise it may result in the burn-out of controller!
Indication of normal state
Indication of alternative state
2. Terminals 401 and 402 of type A and type B controllers can be connected with passive closing signal only to achieve fire control
linkage. If they are directly connected to any active signal, the controller will be burnt out.
① The product is in the state. Move the orange button
the manual position.
to
② Pull out the limiting piece and lock it.
5
Installation of Isolation Padlock
Figure 10 Installation of isolation padlock
