CHINT NXZ-125 User Manual

NXZ Automatic Transfer Switch
12
Parameter setting of controller display module
AUTO
MANU
For setting of the switching value of normal power supply
undervoltage, press to increase and to decrease.
＋
For setting of the switching value of normal power supply
overvoltage, press to increase and to decrease.
＋
For setting of switching delay, press to increase and
to decrease.
For setting of the switching value of alternative power supply
undervoltage, press to increase and to decrease.
＋
＋
SET
AUTO
ON
OFF
For setting of the switching value of alternative power supply
overvoltage, press to increase and to decrease.
＋
For setting of return delay, press to increase and
to decrease.
＋
For setting of the delay of generator stop, press to
increase and to decrease.
＋
For setting of the delay of generator start-up, press
to increase and to decrease.
＋
For setting of switching mode, press and keys to change the
switching mode (if the last digital is 0, it refers to grid - grid automatic
charge and automatic recovery; if the last digital is 1, it refers to automatic
charge and no automatic recovery; if the last digital is 2, it is grid - power
generation mode).
＋
I
II
SET
AUTO
MANU
AUTO
MANU
AUTO
MANU
AUTO
MANU
AUTO
MANU
AUTO
MANU
AUTO
MANU
AUTO
MANU
SET
SET
SET
SET
SET
SET
SET
SET

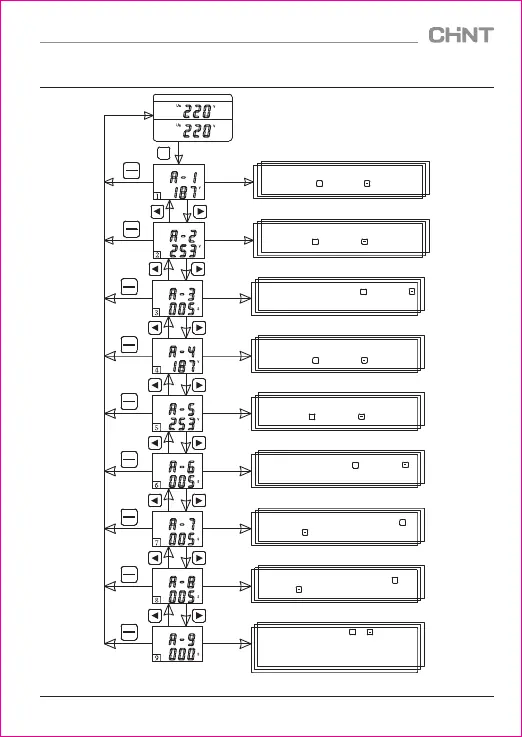

Figure 15 Parameter setting of controller display module
