CHIYU BF-450 - 1 Hardware Installation

CHIYU TECHNOLOGY CO., LTD
http://www.chiyu-t.com.tw

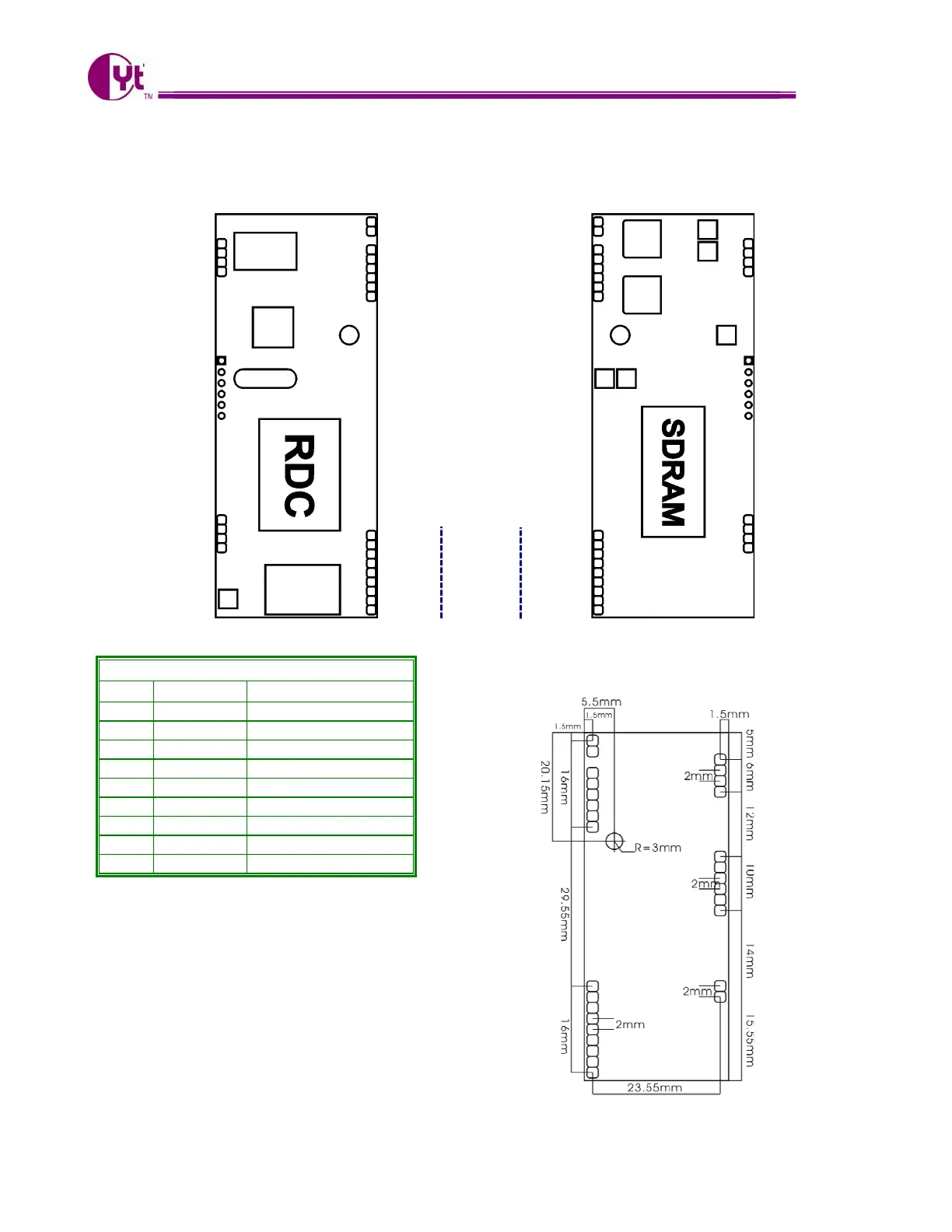

1. Hardware Installation
Socket Type
Front Rear
RJ-45
TX+ 4
TX- 5
RX+ 6
RX- 7
I/O
(Optional)
Input 1
Input 2
Trans LED/Output 3
485 DIR/Output 4
Input 3
Input 4
RESET
Out put 1
GND
Out Put 2
64 NC
63 GND
61 VCCIN+5V
60 LEDSPD
59 SEDCOL
58 LEDLINK
57 LEDACT
56 LEDFDX
41 GND
40 -DTR
39 -DCD
38 -CTS
37 -DSR
36 3.3V OUT
35 -TXD
34
33
-RXD
-RTS
Serial
64 NC
63 GND
61 VCCIN+5V
60 LEDSPD
59 SEDCOL
58 LEDLINK
57 LEDACT
56 LEDFDX
Serial
41 GND
40 -DTR
39 -DCD
38 -CTS
37 -DSR
36 3.3V OUT
35 -TXD
34 -RXD
33 -RTS
RJ-45
TX+ 4
TX- 5
RX+ 6
RX- 7
I/O
(Optional)
Input 1
Input 2
Trans LED/Output 3
485 DIR/Output 4
Input 3
Input 4
RESET
Out put 1
GND
O ut Put 2
L=65mm,D=26mm,H=7mm
RS232 Pin Form
Pin Acronym Sense
Pin 1 CD Carrier Detect
Pin 2 RXD Receive
Pin 3 TXD Transmit
Pin 4 DTR Data Terminal Ready
Pin 5 GND Ground
Pin 6 DSR Data Set Ready
Pin 7 RTS Request to Send
Pin 8 CTS Clear to Send
Pin 9 RI Ring Indicator
Mechanical Dimensions (mm)：
2
