Chore-Time FLEX-AUGER 108 Installation Instructions

Model 108 Two Motor Tandem Installation Instruction
7

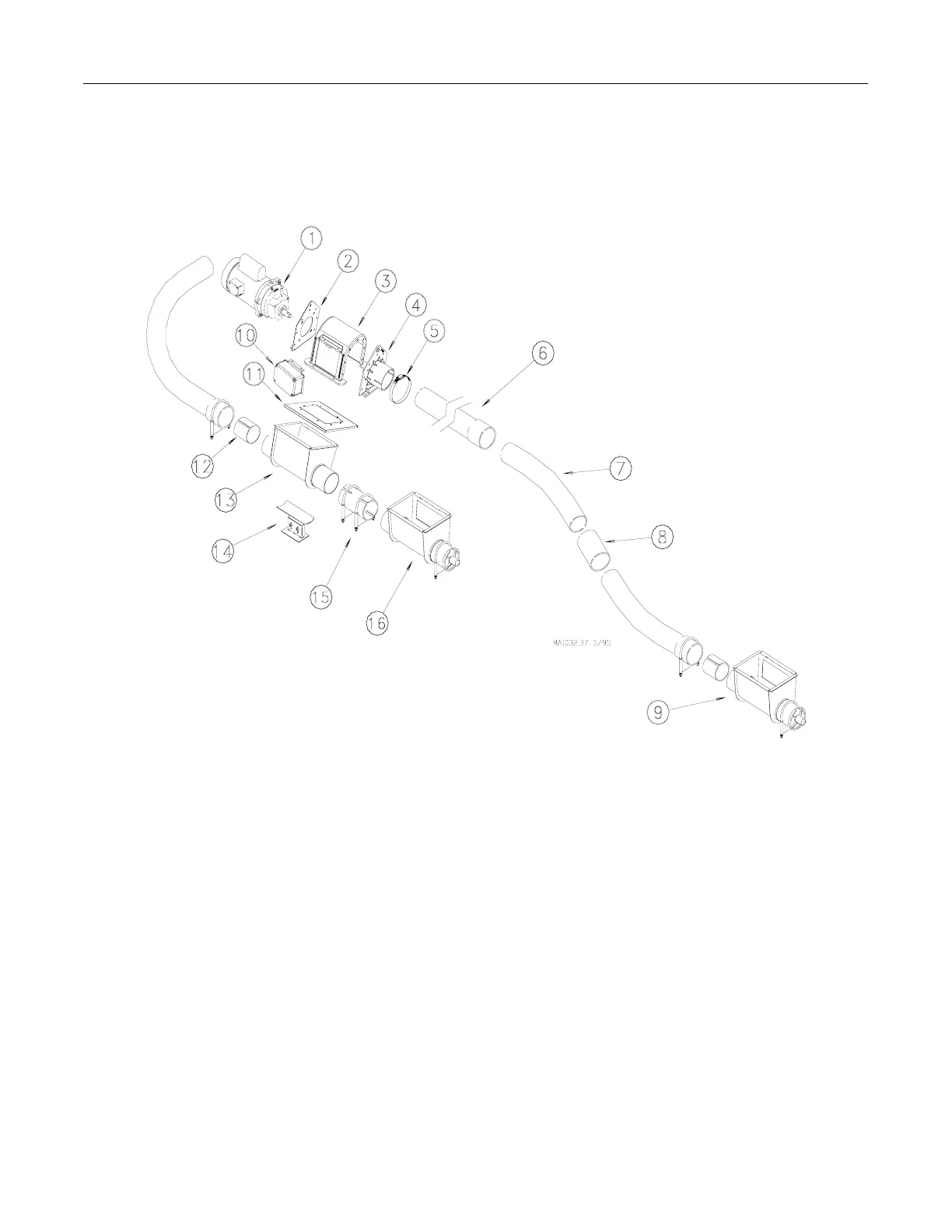

Model 108 PVC Two-Motor Tandem System
Figure 3.
Key Description
1Power Unit
2 Adapter Plate
3 Control Body
4 Tube Anchor
5 Tube Clamp
6 Auger Tube
7 22-1\2° Elbow
8 Tube Connector
Key Description
9 Terminal Bin Boot
10 Safety Switch
11 Adaptor Plater
12 Tube Insert
13 Connecting Boot
14 Boot Support Assembly
15 Tube Connector w/ clamps
16 Intermediate Bin Boot
