Model 108 Two Motor Tandem Installation Instruction
6

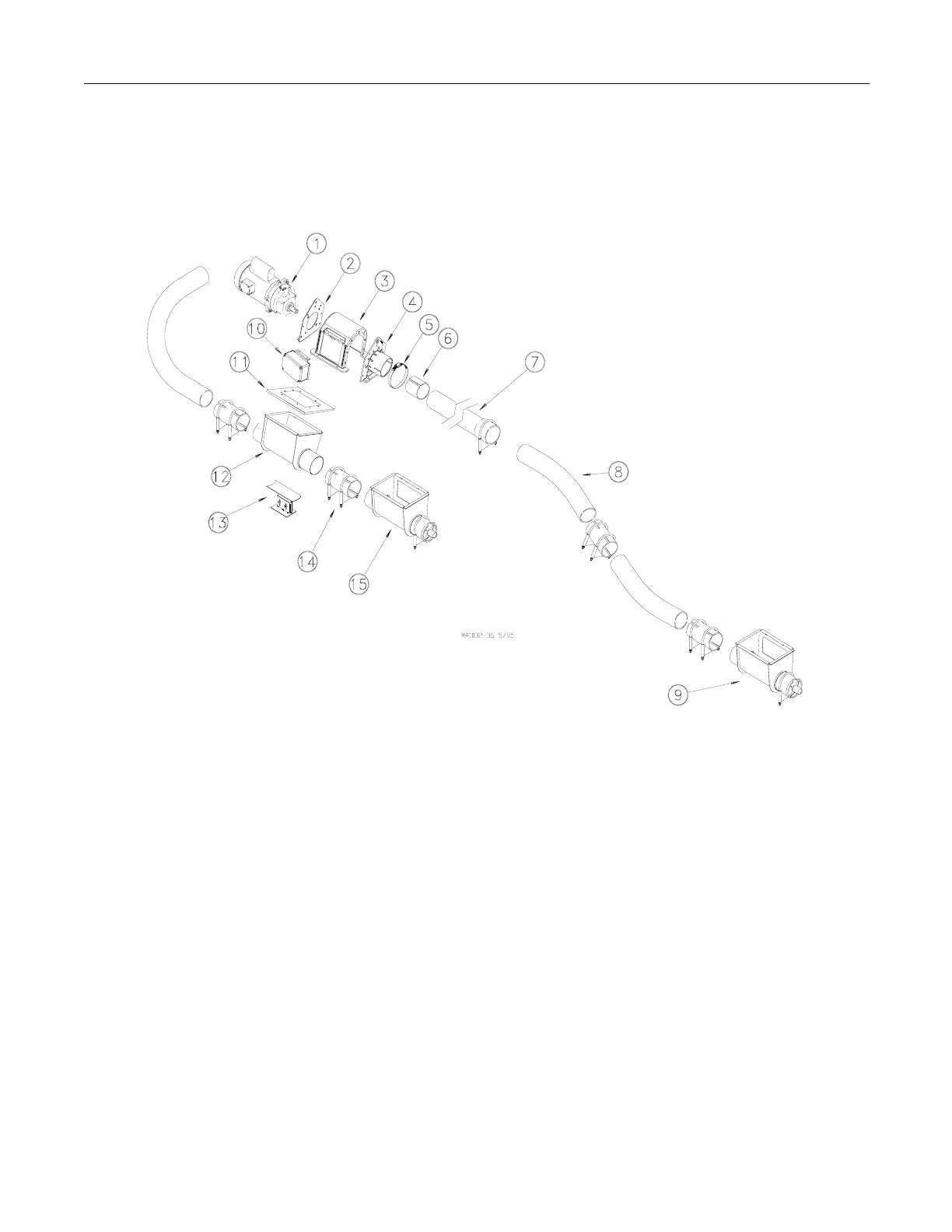

Model 108 Steel Two-Motor Tandem System
Key Description
1Power Unit
2 Adapter Plate
3 Control Body
4 Tube Anchor
5 Tube Clamp
6Tube Insert
7 Auger Tube
8 22-1\2° Elbow
Figure 2.
Key Description
9 Terminal Bin Boot
10 Safety Switch
11 Adaptor Plater
12 Connecting Boot
13 Boot Support Assembly
14 Tube Connector w/ clamps
15 Intermediate Bin Boot
