2
A) MEASURING INPUTS
NOTE: Any external components (like zener
barriers etc.) connected between sensor and input
terminals may cause errors in measurement due
to excessive and/or not balanced line resistance or
possible leakage currents.
TC INPUT

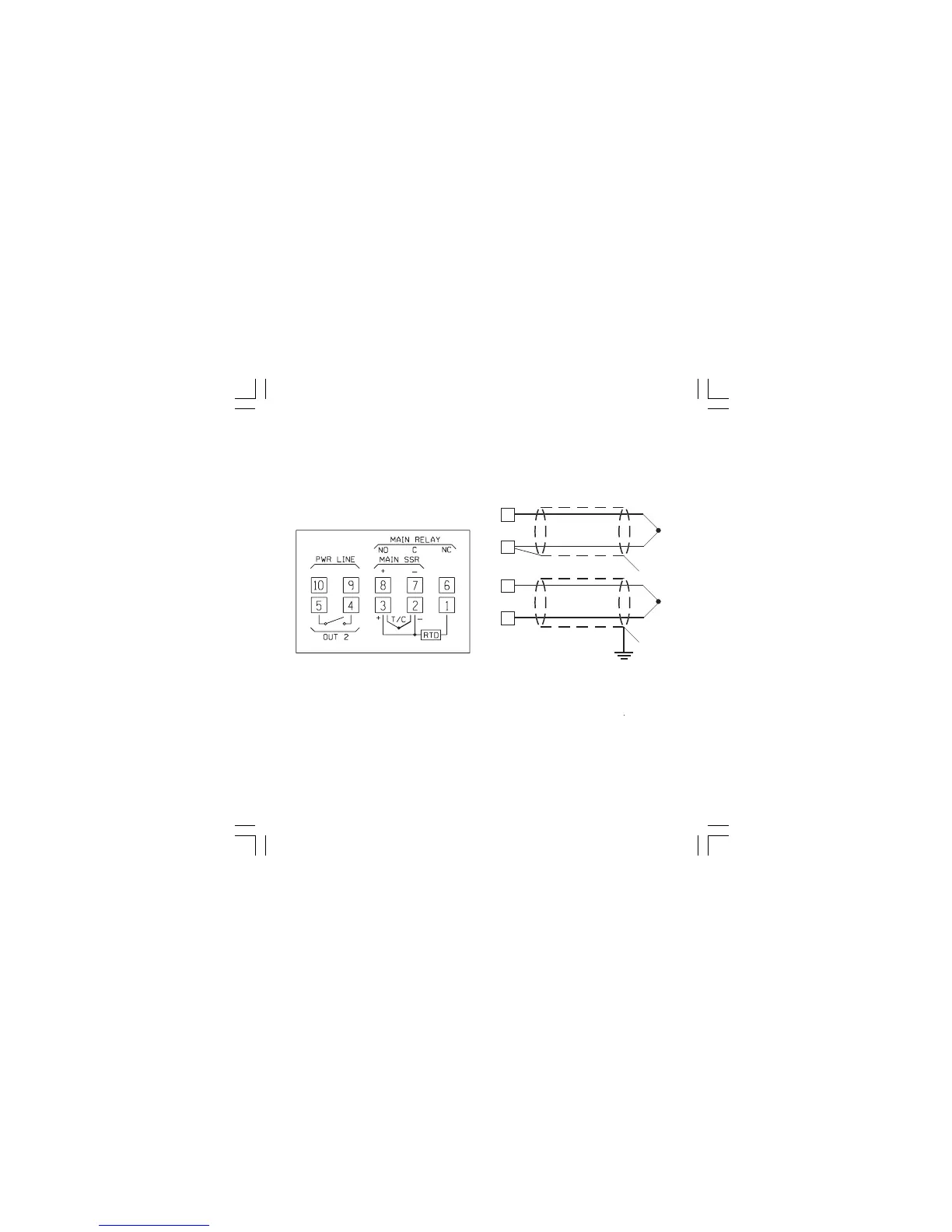

Fig. 4 THERMOCOUPLE INPUT WIRING
NOTE:
1) Don’t run input wires together with power
cables.
2) For TC wiring use proper compensating cable
(for example, J TC extension wire for J TC)
preferable shielded.
3) when a shielded cable is used, it should be
connected at one point only.
Shield
Shield
3
2
+
_
3
2
+
_
CONNECTION DIAGRAMS
Connections are to be made with the instrument
housing installed in its proper location.
Fig. 2 REAR TERMINAL BLOCK
1601-1-0C.p65 5/2/00, 1:45 PM2
