Chronomite INSTANT-FLOW SR Series User Manual

IFSR 09/06/18
®
INSTANT-FLOW SR - STANDARD FLOW
ELECTRIC TANKLESS WATER HEATER - POINT OF USE
Get Started www.mgispecbuilder.comConfigure products and create specs with ease.
SELECTION SUMMARY
& APPROVAL FOR
MANUFACTURING
Model Number & Options_____________________________________________________________________Quantity_______________
Company_______________________________________________________________________________________________________
Contact_________________________________________________Title____________________________________________________
Signature
(Approval for
Manufacturing)__________________________________________________________________Date ____________________________
PH. 800-447-4962
626-937-4270
FAX 626-937-4279
www.chronomite.com
Chronomite Laboratories assumes no responsibility for use of void or suspended data. © Copyright Chronomite Laboratories, Inc.
Member of Morris Group International, City of Industry, CA Please visit www.chronomite.com for most current specifications.

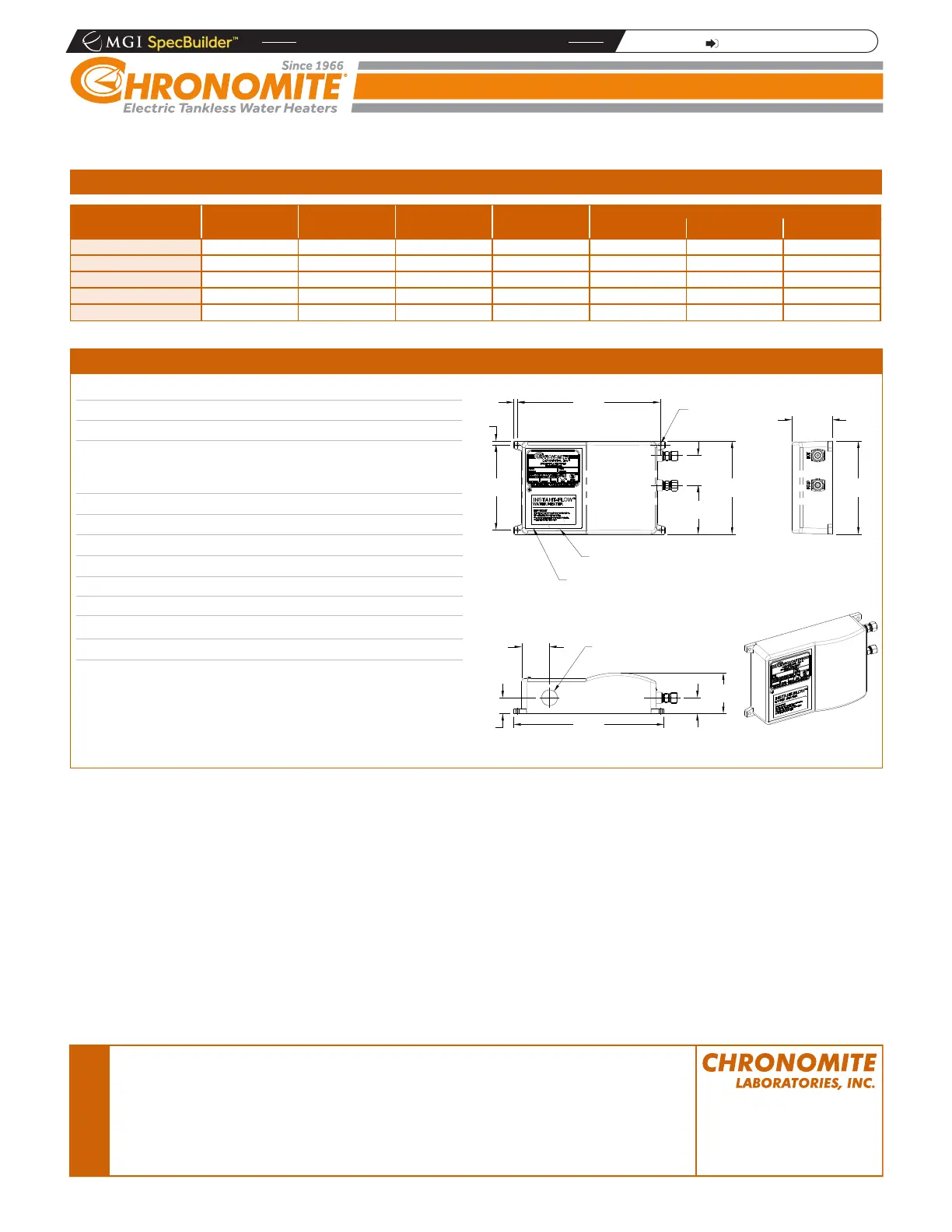

TECHNICAL DIMENSIONS
— 120V models when operated 110V will have approximately a 15%
temperature decrease.
GENERAL NOTES:
— 240V models when operated at 220V will have approximately a 15%
temperature decrease.
Materials: Rugged cast aluminum housing
Celcon plastic element assembly
with nichrome coils
Maximum Ambient Operating Temperature: 60°C
Maximum Water Temperature: 71°C
Housing Color: White
Listing: UL, IAPMO, UPC, ADA, ETL
®
INSTANT-FLOW SR - STANDARD FLOW
Dimensions: 159 (H) x 244 x 70mm
Maximum Pressure: 1034 kPa
Weight: 2.27 Kg
Minimum Operating Flow Rate: 2.5 LPM
Minimum Operating Pressure: 172 kPa
Maximum Operating Pressure: 552 kPa
4.00 LPM 5.00 LPM 6.00 LPM
SR-30/208 30 208 6240 2.5 22 18 15
SR-30/240 30 240 7200 2.5 26 21 17
SR-30/277 30 277 8310 2.5 30 24 20
SR-40/208 40 208 8320 2.5 30 24 20
SR-40/240 40 240 9600 2.5 34 28 23
°C TEMPERATURE RISE @
MODEL AMPS/PHASE 1 Æ VOLTAGE WATTS
ACTIVATION
LPM
INSTANT-FLOW SR - STANDARD FLOW METRIC CHART
®
257
29
33
29
70
Ø28 Access Hole
146
6
6
244
4x Ø5
84
51
159
70
159
Rear Electrical Knock-Out
Front Service Panel

Chronomite INSTANT-FLOW SR Series Specifications

General

Brand	Chronomite
Model	INSTANT-FLOW SR Series
Category	Water Heater
Language	English
