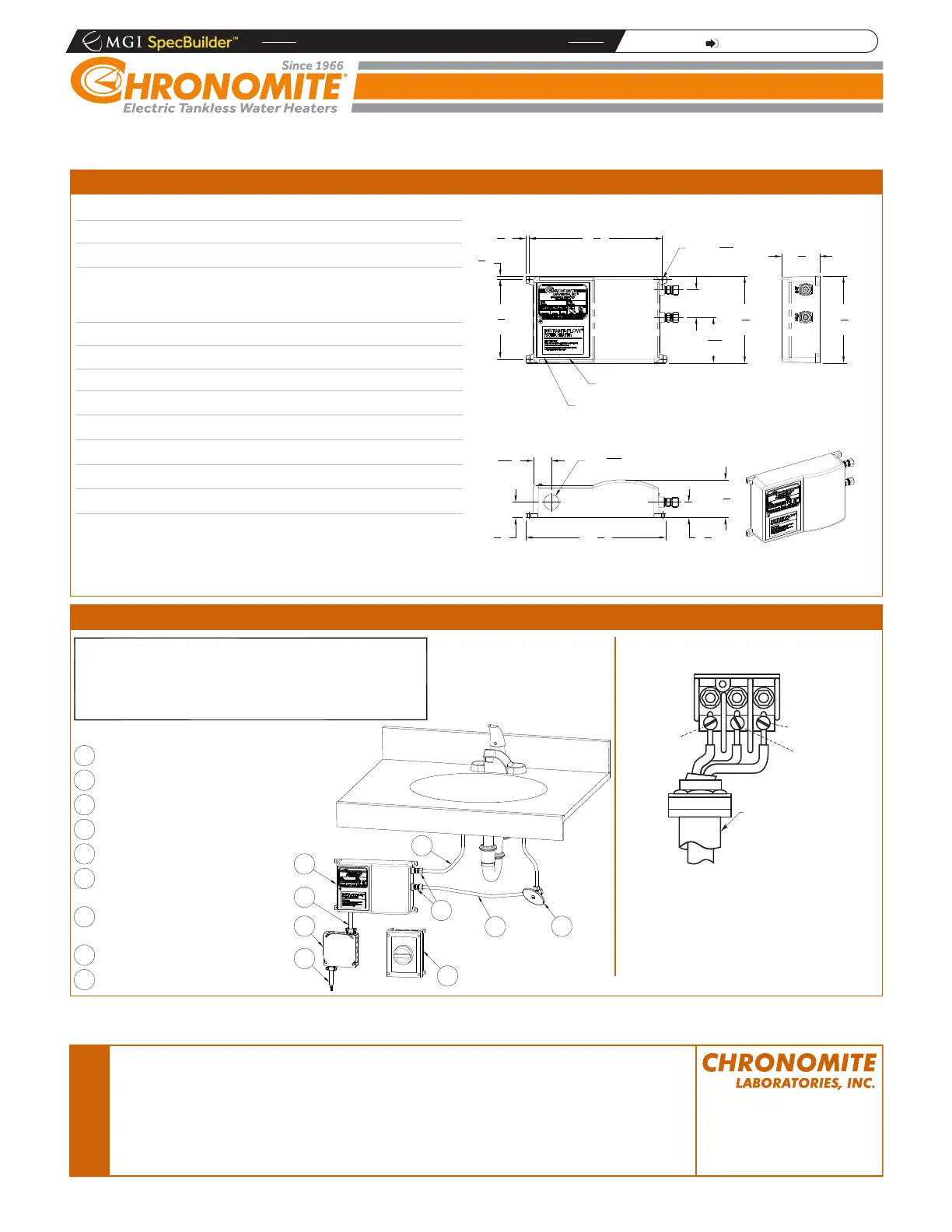

IFSR 09/06/18
®
INSTANT-FLOW SR - STANDARD FLOW
ELECTRIC TANKLESS WATER HEATER - POINT OF USE
Get Started www.mgispecbuilder.comConfigure products and create specs with ease.
TECHNICAL DIMENSIONS
Minimum Operating Flow Rate: 0.65 GPM
Maximum Ambient Operating Temperature: 140°F
Maximum Pressure 150 PSI
Materials: Rugged cast aluminum housing
Celcon plastic element assembly
with nichrome coils
Maximum Operating Pressure: 80 PSI
Housing Color: White
®
INSTANT-FLOW SR - STANDARD FLOW
Listing: UL, IAPMO, UPC, ADA, ETL
Minimum Operating Pressure: 25 PSI
Weight: 5 lbs.
Dimensions: 6-1/4" (H) x 9-5/8" x 2-3/4"
Maximum Water Temperature: 160°F
INSTALLATION DIAGRAM
WIRING CONNECTION
"GRD" is
earth
ground.
Conduit
Refer to local
code for wire size
Hot
Hot or
Neutral
ATTENTION:
Unit must be hard wired.
NOTE: Heaters are single phase.
All tests are measured at
the output of the heater.
— 120V models when operated 110V will have approximately a 15%
temperature decrease.
GENERAL NOTES:
— 240V models when operated at 220V will have approximately a 15%
temperature decrease.
SELECTION SUMMARY
& APPROVAL FOR
MANUFACTURING
Model Number & Options_____________________________________________________________________Quantity_______________
Company_______________________________________________________________________________________________________
Contact_________________________________________________Title____________________________________________________
Signature
(Approval for
Manufacturing)__________________________________________________________________Date ____________________________
PH. 800-447-4962
626-937-4270
FAX 626-937-4279
www.chronomite.com
Chronomite Laboratories assumes no responsibility for use of void or suspended data. © Copyright Chronomite Laboratories, Inc.
Member of Morris Group International, City of Industry, CA Please visit www.chronomite.com for most current specifications.
OR
Notes:
1. Heater to be installed below the level of all hot water
outlets serviced by the heater.
2. Diagram shown with standard 3/8" Compression Fitting.
Optional 1/2" Male NPT water connections available.
1 Instant-Flow SR Heater
2 Electrical Junction Supply Box (optional)
2A 2095-1 Disconnect Switch (optional)
3 Electrical Supply Conduit
4 Electrical Supply Wire
5 Dual outlet Stop, 3/8" Comp.
6 3/8" Comp. x 1/4" NPT
7 3/8" Hot Water Outlet
8 3/8" Cold Water Inlet
2
6
4
3
1
2A
5
8
7
Outlet Connections
Fittings (supplied)
10
1
8
"
1
1
8
"
1
5
16
"
1
1
8
"
2
3
4
"
5
3
4
"
1
4
"
1
4
"
9
5
8
"
3
5
16
"
2"
6
1
4
"
2
3
4
"
6
1
4
"
Rear Electrical Knock-Out
Front Service Panel
Ø1
3
32
" Access Hole
4x Ø
3
16
"
