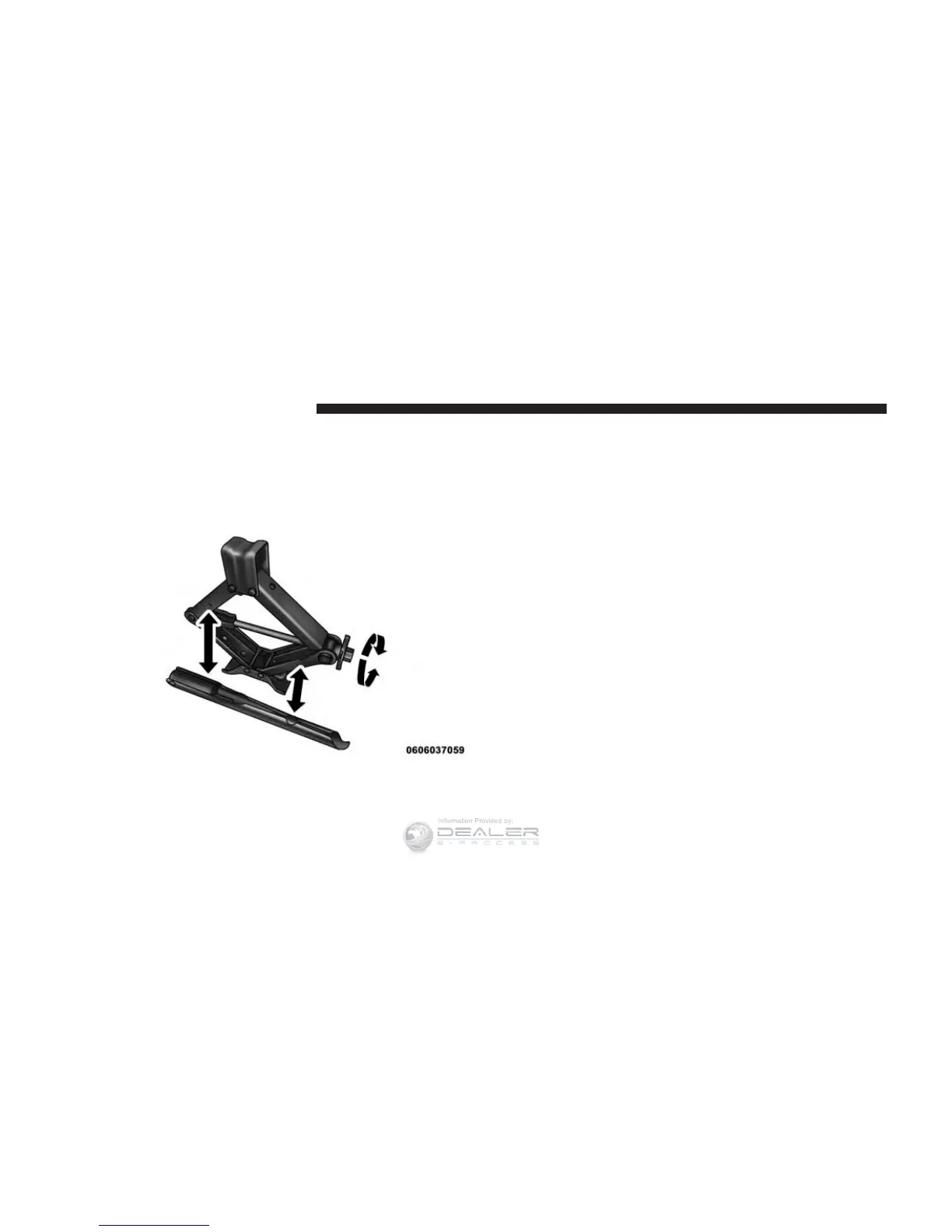

NOTE: The jack handle attaches to the side of the jack
with two attachment points. When the jack is partially
expanded, the tension between the two attachment
points holds the jack handle in place.
2. Chock both the front and rear of the wheel diagonally
opposite of the jacking position. For example, if chang-
ing the right front tire, chock the left rear wheel. Place
both chocks under the tire.
3. If equipped with aluminum wheels where the center
cap covers the wheel bolts, use the wheel bolt wrench
to pry the center cap off carefully before raising the
vehicle.
4. Before raising the vehicle, use the wheel bolt wrench
to loosen, but not remove, the wheel bolts on the
wheel with the flat tire. Turn the wheel bolts counter-
clockwise one turn while the wheel is still on the
ground.
5. Place the jack underneath the notched lift area that is
closest to the flat tire.
Removing Jack Handle From Jack
566 WHAT TO DO IN EMERGENCIES
