Cavity Fuse Circuits
32 15 Amp
Blue
Wiper, Washer Pump, Headlight
Flasher
33 5 Amp
Beige
Residual Engine Heat Utilization
34 Spare (Coupe)
34 30 Amp
Green
Climate Control (Roadster)
35 15 Amp
Blue
Radio Frequency Remote Control,
Hazard Warning Flasher, Instru-
ment Cluster, Residual Engine
Heat Utilization
36 30 Amp
Green
Climate Control (Coupe)
36 5 Amp
Beige
Exterior Mirror Adjustment
(Roadster)
37 5 Amp
Beige
Circulating Air, Instrument Clus-
ter, Radio Frequency Remote
Control, Residual Engine Heat
Utilization
Relay Control Module Fuses

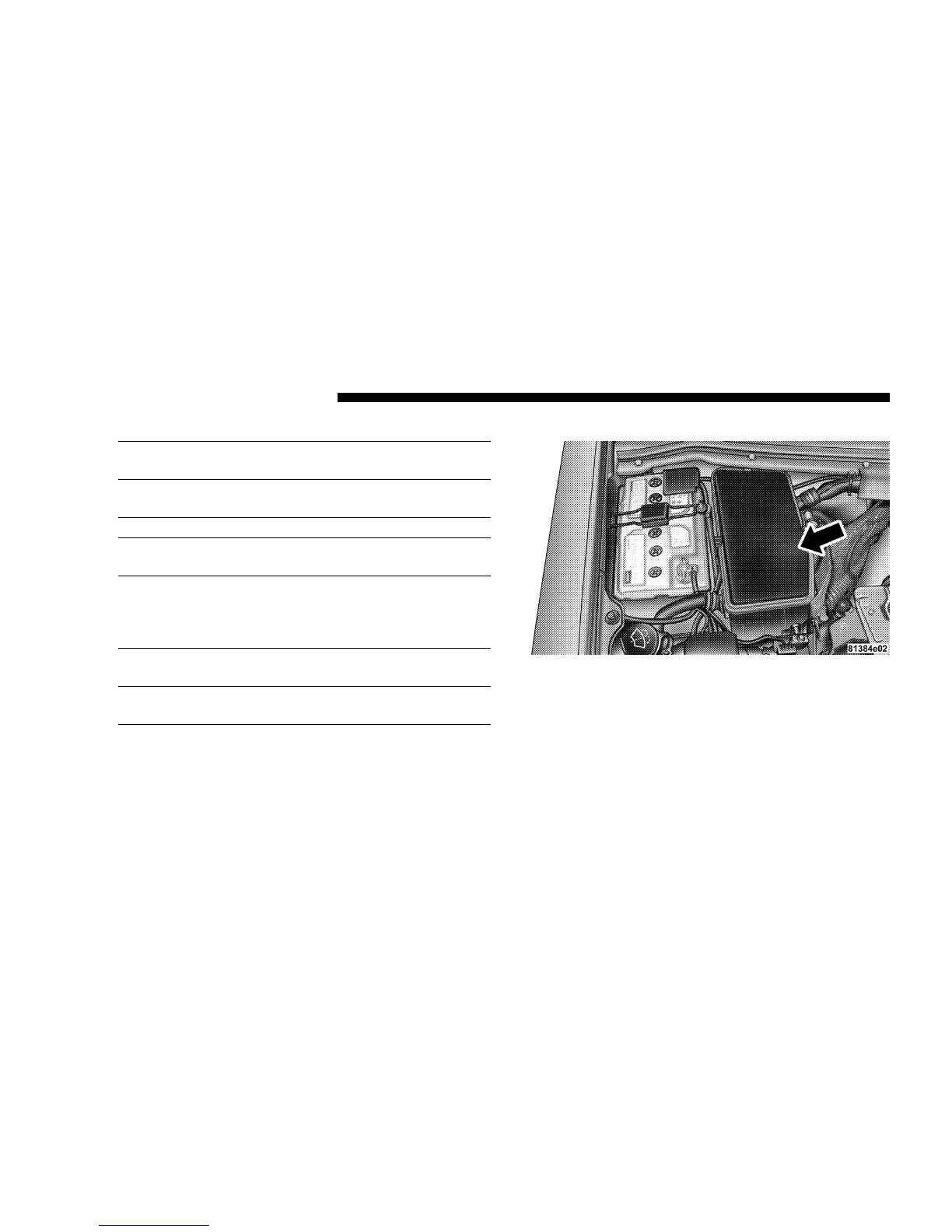

The relay control module fuses are located in the Control
Module Box next to the battery in the engine compart-
ment. Slide the control module box cover retaining clips
forward and lift the cover from the control module box to
gain access to the relay control module fuses.
