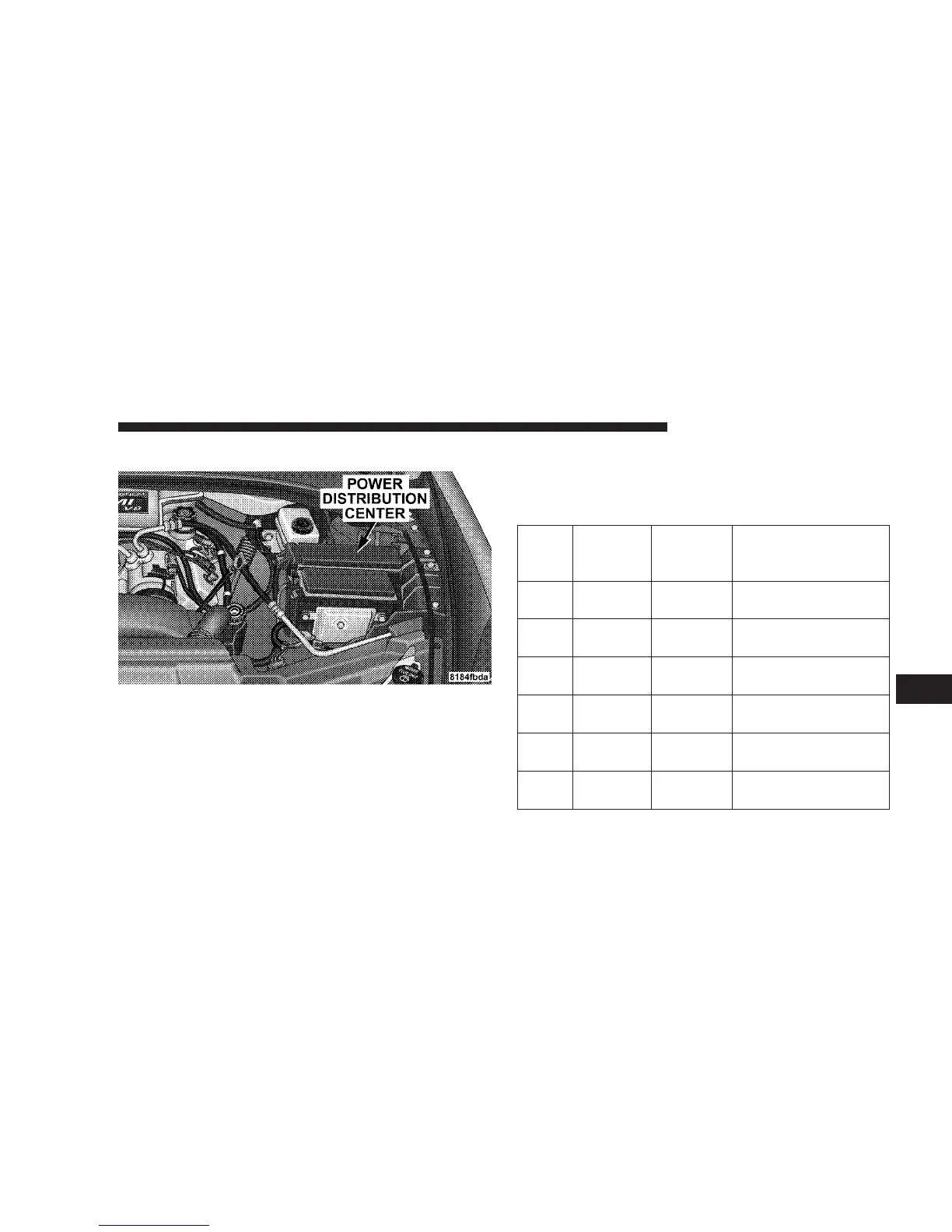

Fuses (Power Distribution Center)
Your vehicle is equipped with an electrical power distri-
bution center located in the left side of the engine
compartment.
This center contains cartridge fuses, mini fuses and
relays. A description of each fuse and component may be
stamped on the inside cover otherwise the cavity number
of each fuse is stamped on the inside cover that corre-
sponds to the following chart. These fuses and relays can
be obtained from your dealer.
Cavity
Cartridge
Fuse /
Relay
Mini Fuse Description
1 30 Amp
Pink
Starter
2 30 Amp
Pink
Front Wiper
3 40 Amp
Green
Brake Batt
4 30 Amp
Pink
JB Feed Acc # 2
5 40 Amp
Green
Power Seats
6 30 Amp
Pink
Run Remote Relay
Feed
Power Distribution Center
MAINTAINING YOUR VEHICLE 401
7
