9. Pull the bulb out of the socket assembly.
10. Push the replacement bulb into the socket assembly.
11. Reinstall the bulb and socket assembly into the tail
light assembly, and then turn it clockwise.
12. Reinstall the tail light assembly, fasteners, electrical
connector, and trunk liner.
13. Close the trunk.
License Light
1. Remove the screws securing the light to the rear fascia.
2. Remove the bulb and socket assembly.
3. Pull the bulb out of the socket assembly.
4. Push the replacement bulb into the socket assembly.
5. Reinstall the bulb and socket assembly.
6. Reattach the light to the rear fascia, and then install the
screws.

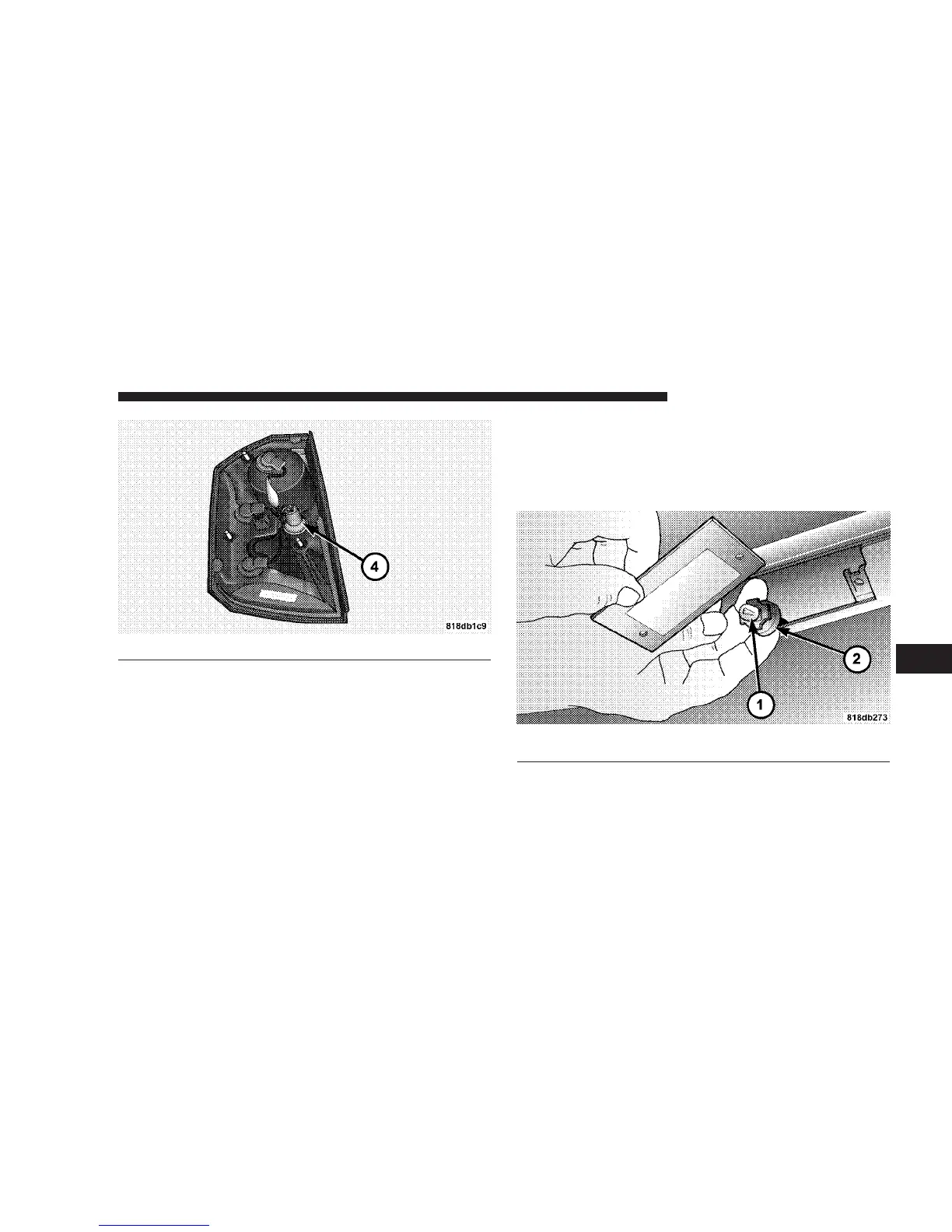

4 — Backup Light Bulb
1 — License Light Bulb
2 — Socket
MAINTAINING YOUR VEHICLE 381
