CIB UNIGAS PG30 - Overall Dimensions

C.I.B. UNIGAS - M03965CE
8

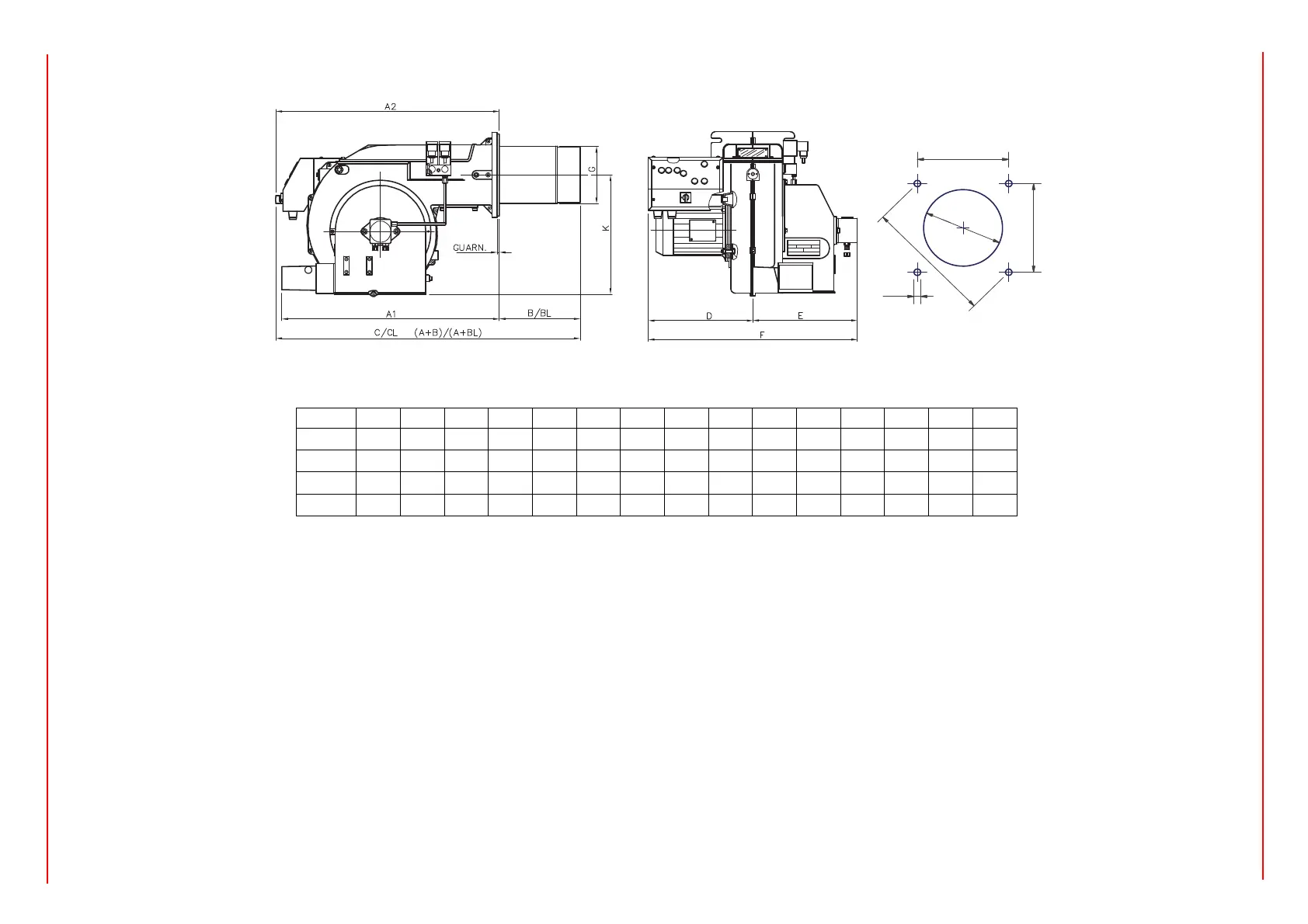

Overall dimensions (mm)
*B, C = measure referred to burner fitted with standard blast tube
*BL, CL = measure referred to burner fitted with extended blast tube
A1 A2 B* BL* C* CL* D E F G H K M N P
PG30 - 500 150 340 650 840 270 230 500 121 151 292 M10 219 155
PG60 - 600 244 442 844 1042 300 285 585 153 182 350 M10 269 190
PG70 685 - 310 460 995 1145 360 350 710 198 228 375 M10 330 233
PG81 685 - 340 490 1025 1175 370 365 735 234 264 375 M10 330 233
P
P
H
N
M
