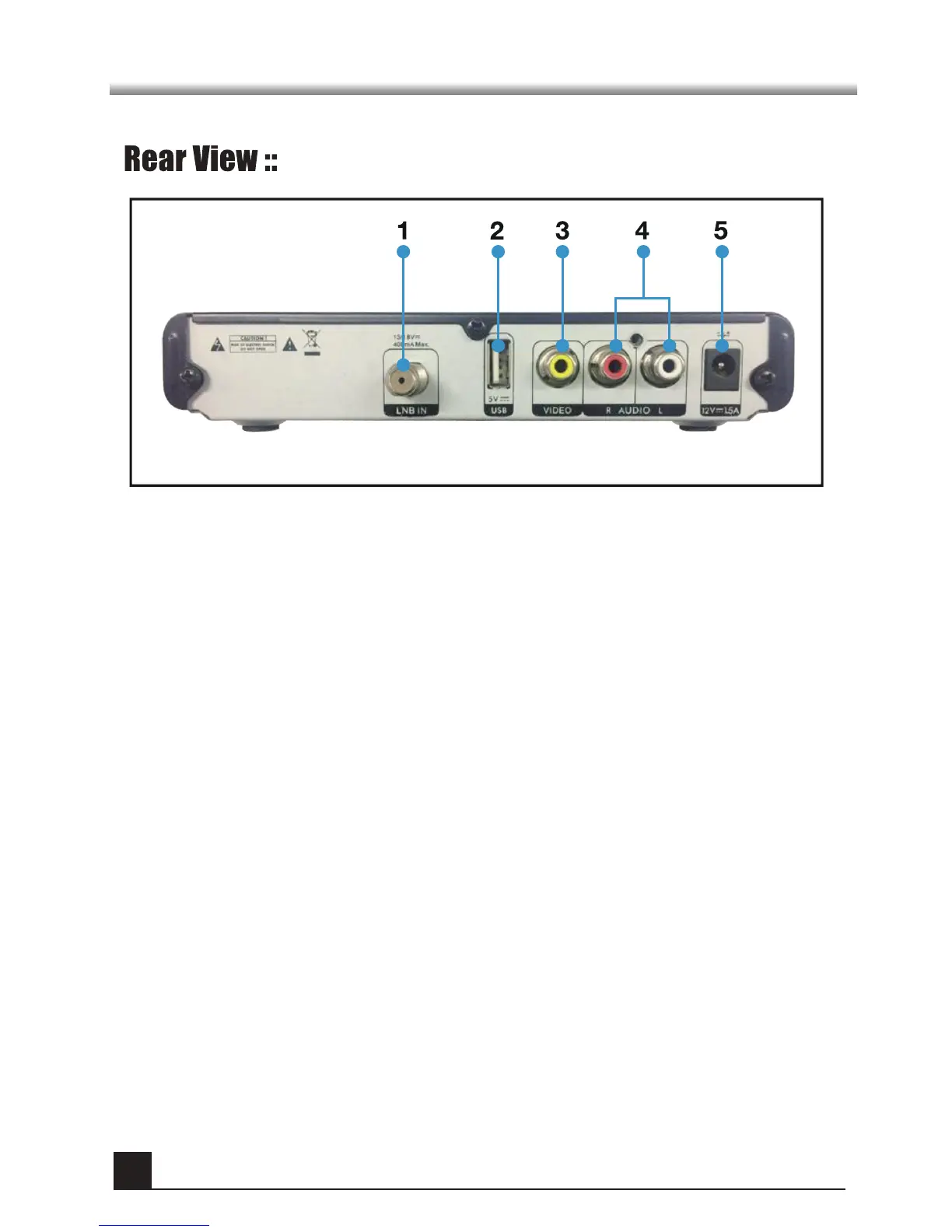

Cignal S610A - Rear View Connections

Product Overview
5
2. USB
: Used for Set Top Box software updates.
3. RCA Video Connector
: Connect this to the composite video input of the TV.
5. DC POWER
4. RCA Audio Connector
: Connect these to desired audio output system.
1. LNB IN
: Connect this to a dish antenna to receive the digital broadcast.
: Connect to the power supply.
