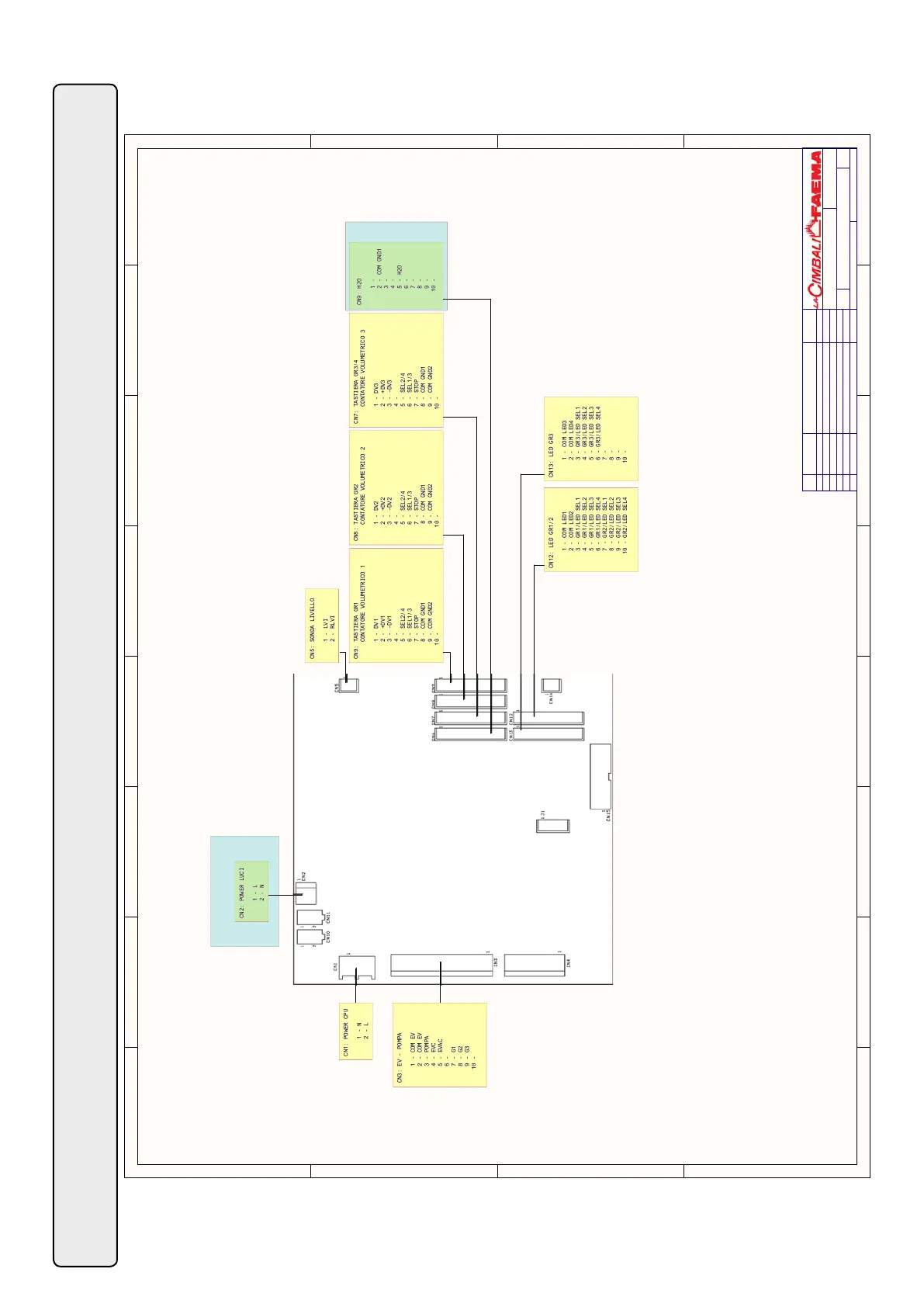

M27_E98 SCHEMA FUNZIONALE
M27_E98_bassa_tensione.SchDoc
1 414/12/2018
1A3
Title Size Design File Name Rev
Date: Sheet: of
Rev. Date Description From
Rev. History
Code
CN9: TASTIERA GR1
CONTATORE VOLUMETRICO 1
1 - DV1
2 - +DV1
3 - -DV1
4 - 5 - SEL2/4
6 - SEL1/3
7 - STOP
8 - COM GND1
9 - COM GND2
10 -
CN8: TASTIERA GR2
CONTATORE VOLUMETRICO 2
1 - DV2
2 - +DV2
3 - -DV2
4 - 5 - SEL2/4
6 - SEL1/3
7 - STOP
8 - COM GND1
9 - COM GND2
10 -
CN7: TASTIERA GR3/4
CONTATORE VOLUMETRICO 3
1 - DV3
2 - +DV3
3 - -DV3
4 - 5 - SEL2/4
6 - SEL1/3
7 - STOP
8 - COM GND1
9 - COM GND2
10 -
CN9: H2O
1 - 2 - COM GND1
3 - 4 - 5 - H2O
6 - 7 - 8 - 9 -
10 -
CN12: LED GR1/2
1 - COM LED1
2 - COM LED2
3 - GR1/LED SEL1
4 - GR1/LED SEL2
5 - GR1/LED SEL3
6 - GR1/LED SEL4
7 - GR2/LED SEL1
8 - GR2/LED SEL2
9 - GR2/LED SEL3
10 - GR2/LED SEL4
CN13: LED GR3
1 - COM LED3
2 - COM LED4
3 - GR3/LED SEL1
4 - GR3/LED SEL2
5 - GR3/LED SEL3
6 - GR3/LED SEL4
7 - 8 - 9 -
10 -
CN3: EV - POMPA
1 - COM EV
2 - COM EV
3 - POMPA
4 - EVC
5 - EVAC
6 - 7 - G1
8 - G2
9 - G3
10 -
CN5: SONDA LIVELLO
1 - LVI
2 - RLVI
CN1: POWER CPU
1 - N 2 - L
CN2: POWER LUCI
1 - L 2 - N
(536214000 - OPZ.)
(536217000 - OPZ.)
Schema elettrico - Wiring diagram - Schema electrique - Elektrischer Schaltplan - Esquema electrico - Esquéma electrico
