Cimon CM3 User Manual

- 9 -

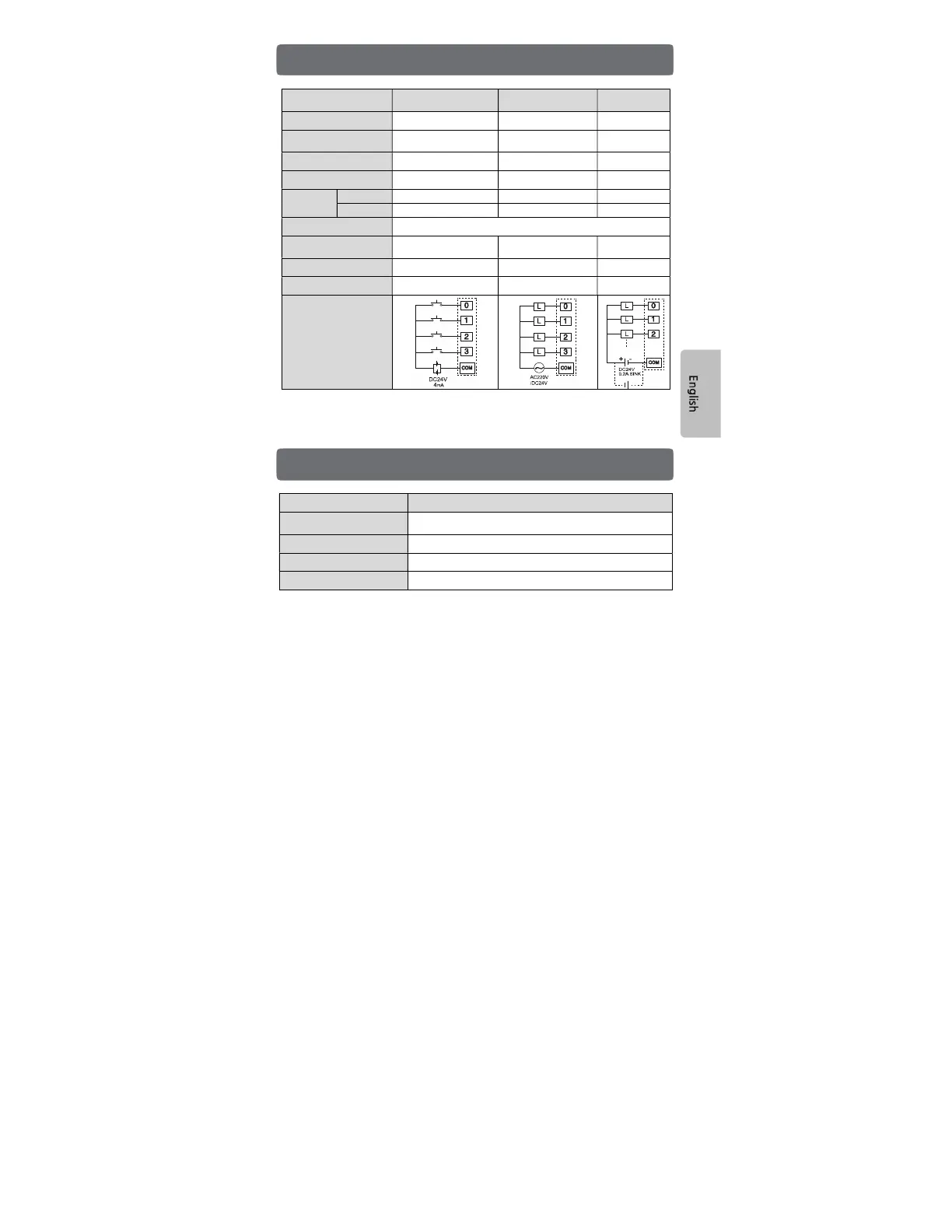

Items DC Input Relay Output TR Output
Rated I/O Voltage DC 24 V AC 220 V / DC 24 V DC 12V / 24 V
Rated I/O Current 4mA
1 point 2 A
COM 5 A
1 point 0.2 A
COM 2 A
On Voltage/Current DC 19 V/3 mA - -
Off Voltage/Current DC 6 V/1 mA - -
Response
Time
Off → On 3 ms or less 10 ms or less 1 ms or less
On → Off 3 ms or less 5 ms or less 1 ms or less
Operation Indication LED will be ON when the input is ON
Insulation Type
Photocoupler
insulation
Relay insulation
Photocoupler
insulation
Input Type Sink/Source - -
Output Type - Relay Sink/Source
Diagram
※ The relay output must be less than 32 points per station.
※ Max. expansion number of CM3-SP16EOR is up to 2 modules.
※ Max. expansion number of CM3-SP16EDR is up to 4 modules.
Items
PWM Output(SP32PWM)
Frequency Range
(Guarantee DUTY Ratio)
1 pps–4000 pps
Max Frequency
65 kpps
DUTY Ratio Resolution
0.0–100.0% (resolution 1/1000)
RAMP Control
Frequency RAMP, DUTY ratio RAMP control
Technical Specifications
Technical Specifications – SP32PWM
