B
Foundation

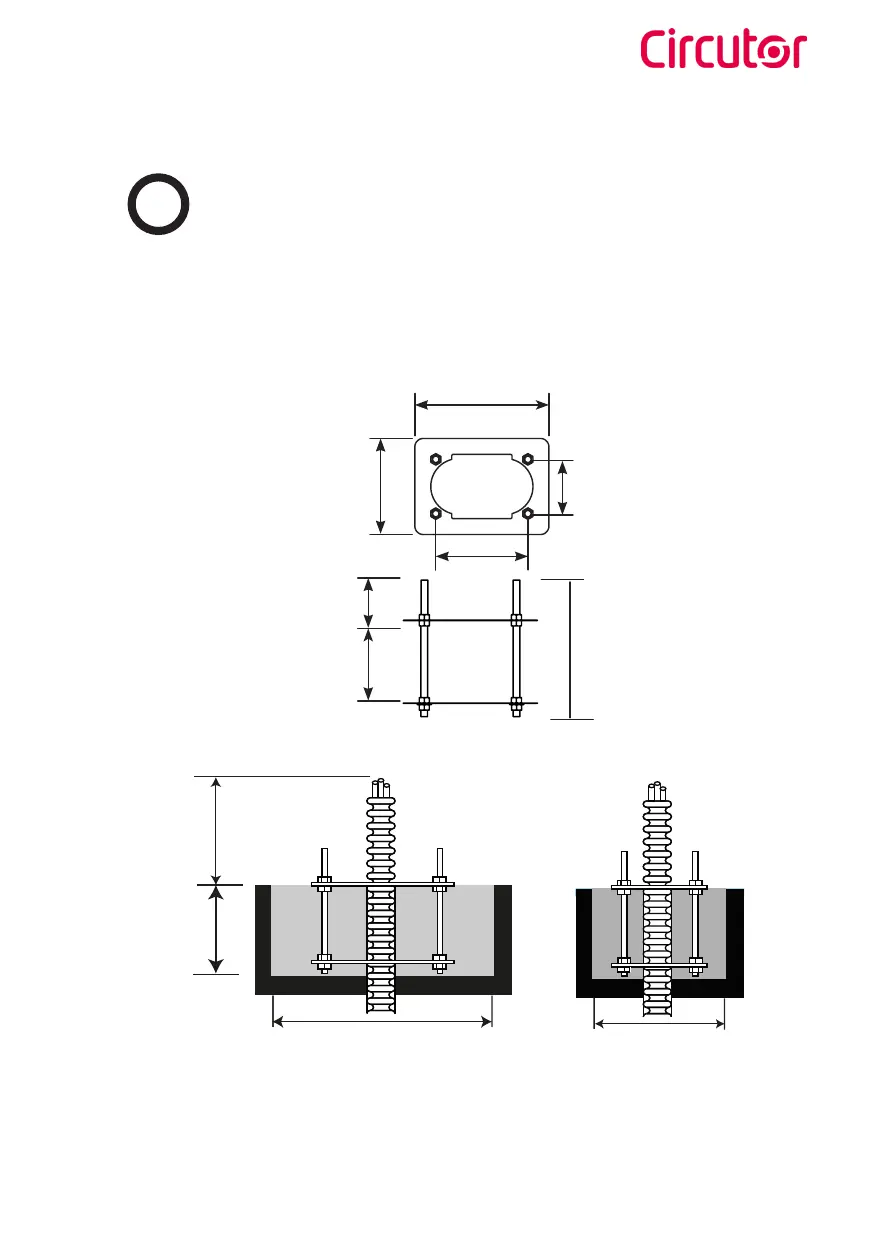

• Place the foundation bolts into the template using provided nuts with the help of a
24mm open-end wrench.
• Once the kit is assembled, it must be placed in the ground taking into consideration the
following measures.
Note: In the event of any doubt about the terrain regarding the installation of this
unit, due to the weight and dimensions, it will be necessary to define a final solution
to install the unit. It must be confirmed by a specific technical project made for an
architectural firm prior to its installation.
250
119
230
320
220
130
400
450
300
500
Front view
Side view
Measures in mm
11Installation Guide
URBAN
