CIRRUS DESIGN SR22 - Page 7

Information Manual 1-5
Cirrus Design Section 1
SR22 General
10.8 ft. (3.30 m)
0.5 ft. (.15 m)
24.8 ft. (7.54 m)
7.0 ft. (2.16 m)
-RADIUS FOR NOSE GEAR
-RADIUS FOR OUTSIDE GEAR
-RADIUS FOR INSIDE GEAR
-RADIUS FOR WING TIP
PARTIAL POWER. ACTUAL TURNING RADIUS MAY VARY AS
MUCH AS THREE FEET.
TURNING RADII ARE CALCULATED USING ONE BRAKE AND

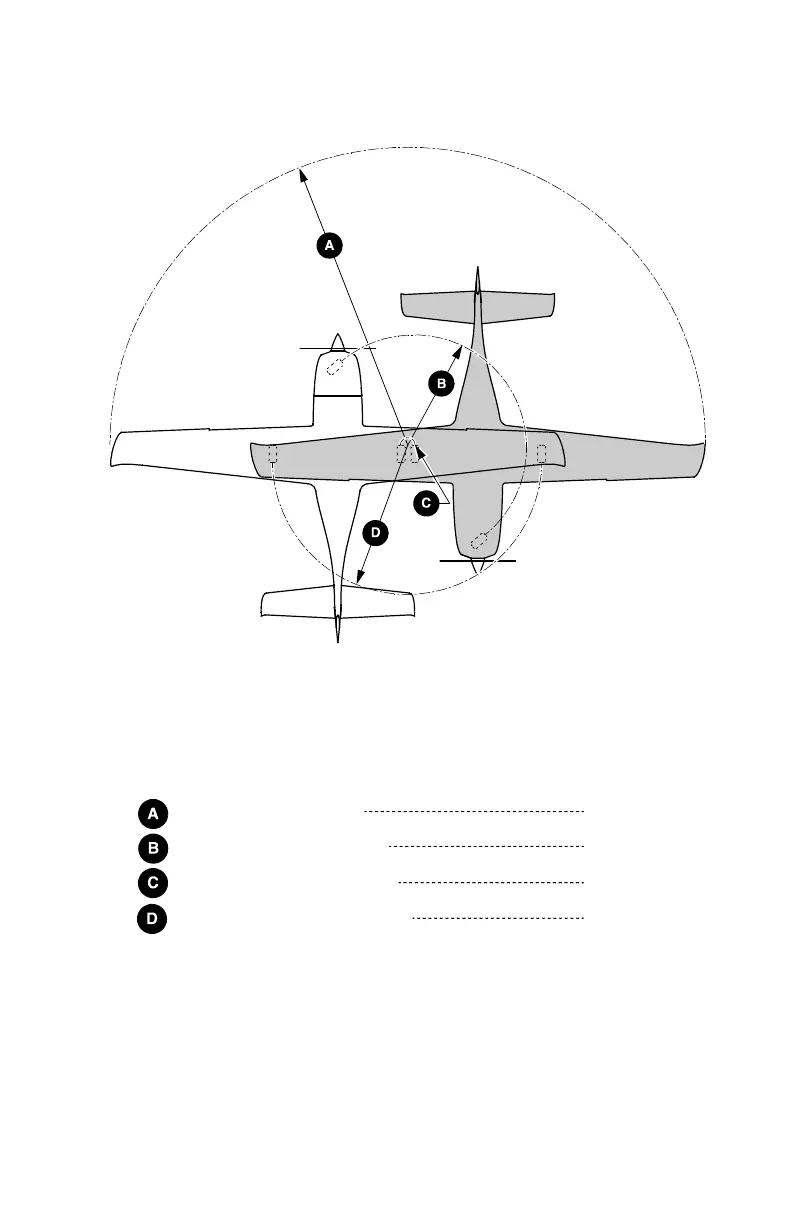

GROUND TURNING CLEARANCE
SR22_FM01_1370
Figure 1-2
Turning Radius
March 2010
