Cirrus SR22T Maintenance Manual

CIRRUS AIRPLANE MAINTENANCE MANUAL MODELS SR22 AND SR22T
24-30
Page 57
Serials w/ Perspective Avionics
EFFECTIVITY:
Figure 24-307

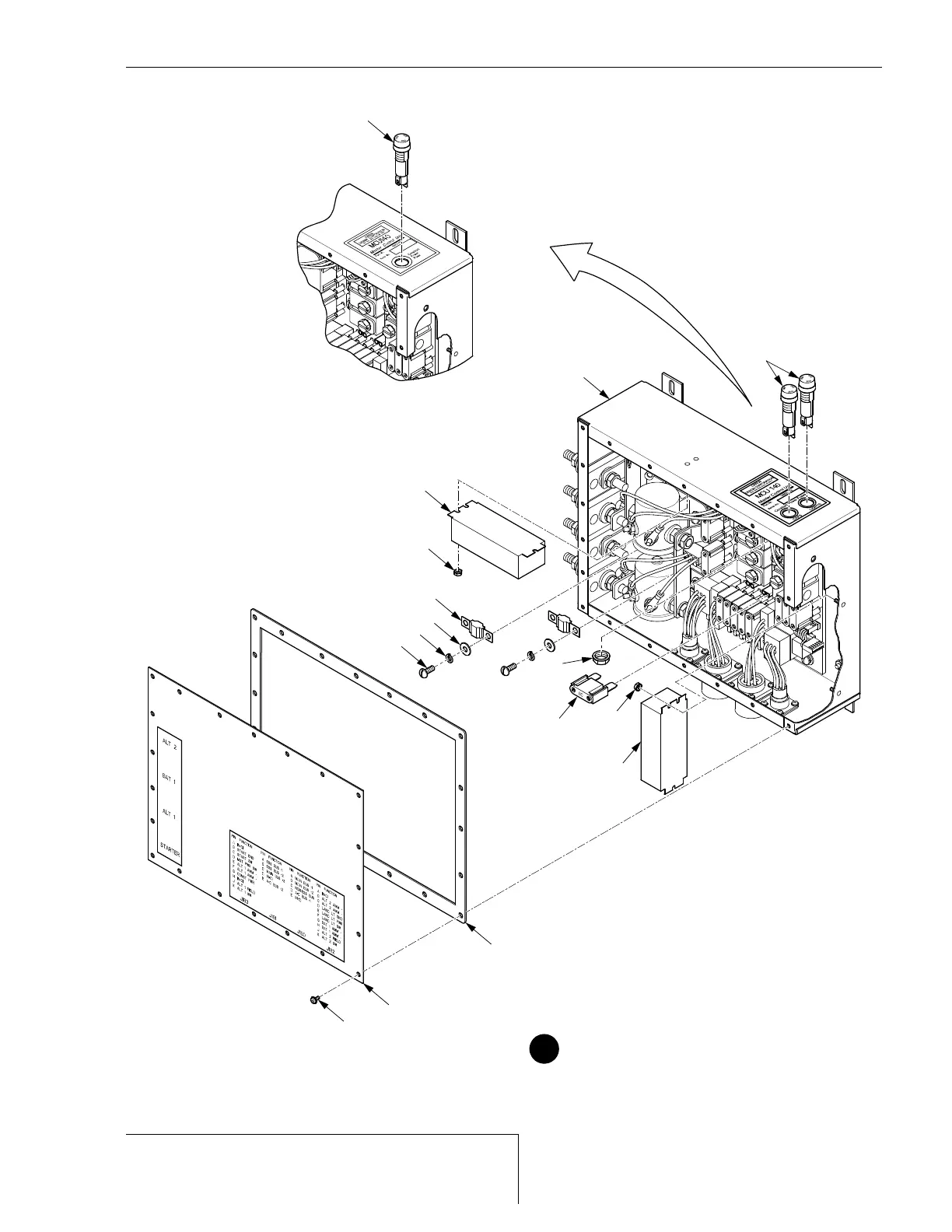

MCU Components - Serials w/ Perspective Avionics (Sheet 5 of 5)
Serials 22-3026 thru 22-4030, 22-4032, 22-4045,
22T-0001 thru 22T-0656, 22T-0658 thru 22T-0689.
14
LEGEND
1. Master Control
Unit (MCU)
2. Screw
6. Washer
7. Nut
8. Midi Fuse
13. Blade Fuse
14. External Fuse
15. ALT 1 Field
Control Module
16. ALT 2 Field
Control Module
21. MCU Cover
22. Spacer
32. Gasket
SR22_MM24_2907A
1
14
15
7
8
6
6
2
7
13
7
16
32
21
2
E DETAIL
01 Jan 2012
