Cirrus SR22T Maintenance Manual

24-30
Page 64
Serials w/ Perspective Avionics
EFFECTIVITY:
CIRRUS AIRPLANE MAINTENANCE MANUAL MODELS SR22 AND SR22T
01 May 2012

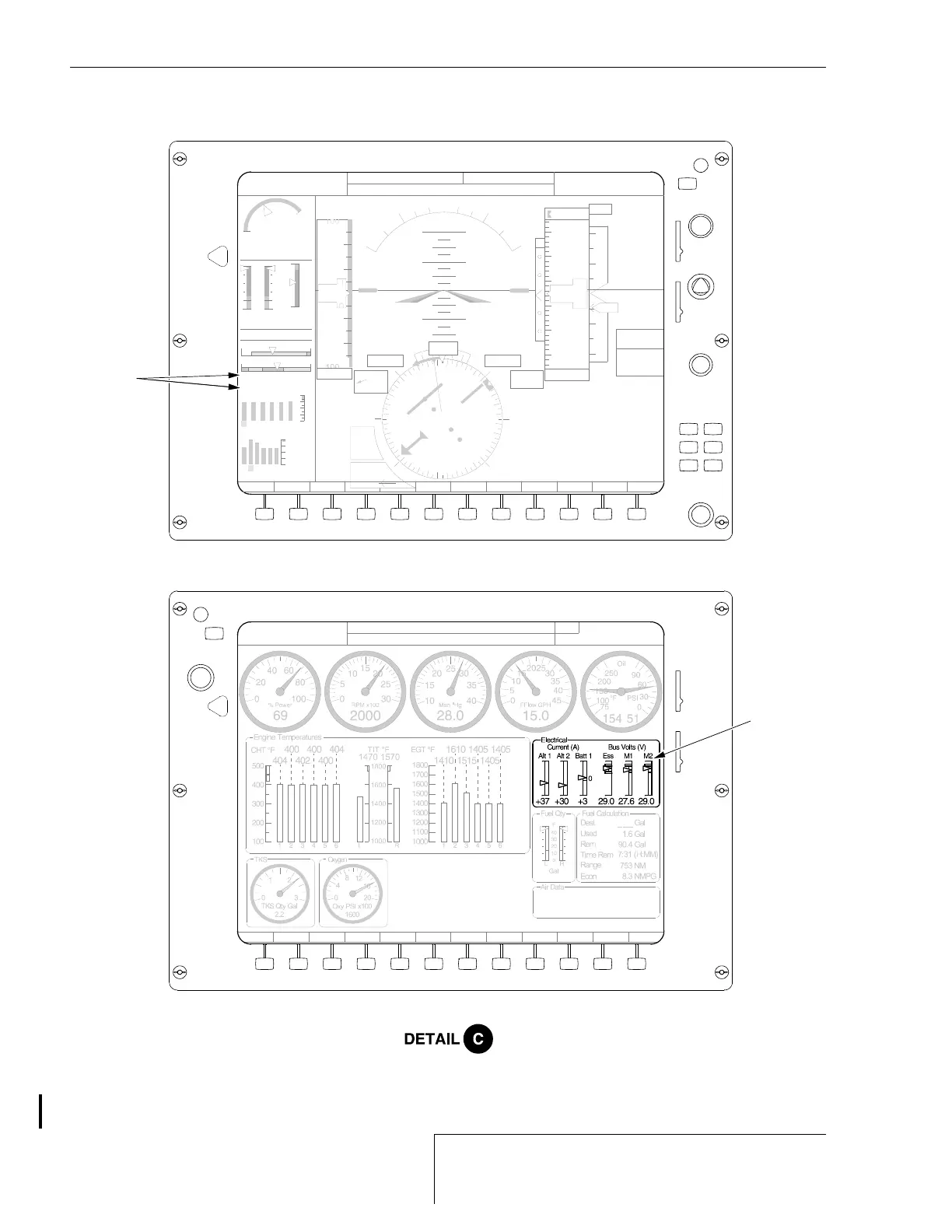

Figure 24-308
Amp Meter Indication -
Serials w/ Perspective Avionics (Sheet 3 of 3)
Serials w/ Perspective Avionics.
3
PFD w/ ENGINE DISPLAY
MFD w/ ENGINE DISPLAY
ENGINE
SR22_MM24_2893A
LEGEND
3. Amp Meter
3
123456
404
CHT °F
1610
EGT °F
123456
FFlow GPH
F
12.0
Gal
29.0 Ess Bus V
+3 Batt 1 A
51
Oil PSI
Oil °F
154
1.6
Gal Used
20.0
Man "Hg
2240
RPM
48
% Pwr
V
N
W
S
E
6
3
3
3
3
0
2
4
2
1
1
3
1
2
GPS TERM
125°
XTK 1.01NM
ALT 2
ALT 1
FUEL QTY
M BUS 2
M BUS 1
-450
HDG 195°
273° T
20 KT
CRS 187°
BARO MIN
1120 FT
AFCS
TRAFFIC
2700
1
3 200
3 400
20 20
10 10
10 10
2 700
3 300
3 100
3000
2 900
29.92 IN
2
1
2
130
140
150
120
110
TAS 130 KT
60
31
40
40
30
20
10
0
L R
Density Alt 8000 Ft
Oat 31°F -1°C (ISA +0°C)
