Cirrus SR22T Airplane Maintenance Manual

CIRRUS AIRPLANE MAINTENANCE MANUAL MODELS SR22 AND SR22T
22-11
Page 21
Serials w/ Perspective Avionics and System 55X
EFFECTIVITY:

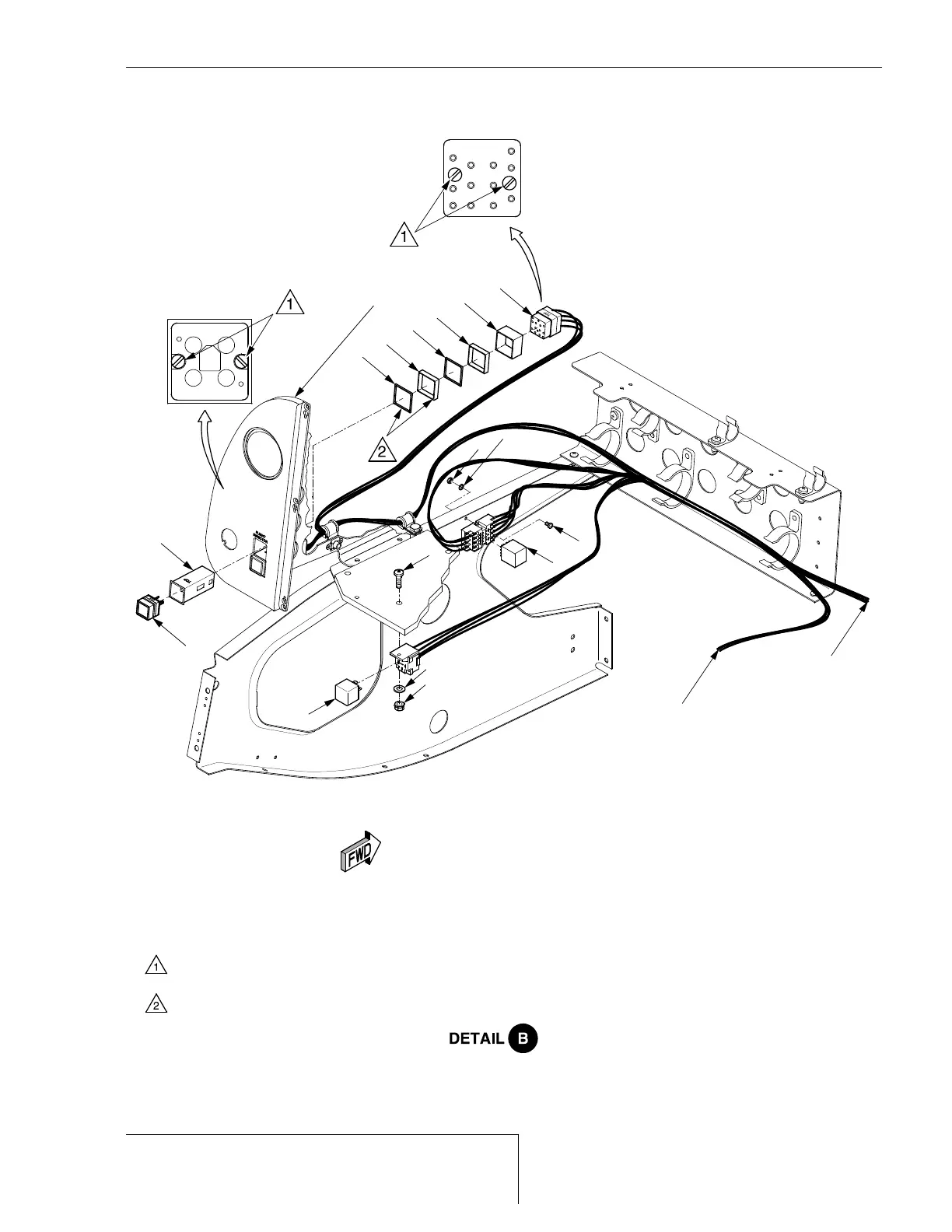

Figure 22-116
Flight Director - Serials w/ Perspective Avionics and System 55X (Sheet 2 of 2)
2
57
41
8
10
6
3
12
11
9
NC
NO
C
8
SR22_MM22_3043A
INSTRUMENT PANEL
(REF)
TO RADIO MODULE
(REF)
TO GLARESHIELD
(REF)
Serials w/ Perspective Avionics and System 55X.
LEGEND
1. Pushbutton
2. Switch
3. Seal
4. Spacer
5. Mounting Sleeve
6. Connector
7. Screw
8. Relay
9. Washer
10. Nut
NOTE
To release/engage cams, rotate locking
screws clockwise/counter-clockwise.
7
6
5
4
4
3
3
2
1
8
9
10
To facilitate switch installation, discard one
seal and spacer if required.
10
9
7
15 Jun 2010

Cirrus SR22T Specifications

General

Manufacturer	Cirrus Aircraft
Engine	Continental TSIO-550-K
Horsepower	315 hp
Max Takeoff Weight	3, 600 lbs
Service Ceiling	25, 000 ft
Cabin Width	49 in
Cabin Height	50 in
Seating Capacity	4
Avionics	Cirrus Perspective+ by Garmin
Category	Single-engine piston aircraft
Propeller	Hartzell 3-blade composite
Wingspan	38 ft 4 in
Length	26 ft
Height	8 ft 11 in
Maximum Cruise Speed	213 KTAS
Fuel Capacity	92 gallons
Stall Speed	64 knots
Safety Features	Cirrus Airframe Parachute System (CAPS)
Cruise Speed	183 knots
