Cirrus SR22T Airplane Maintenance Manual

CIRRUS AIRPLANE MAINTENANCE MANUAL MODELS SR22 AND SR22T
22-11
Page 5
Serials w/o PFD
EFFECTIVITY:
Figure 22-111

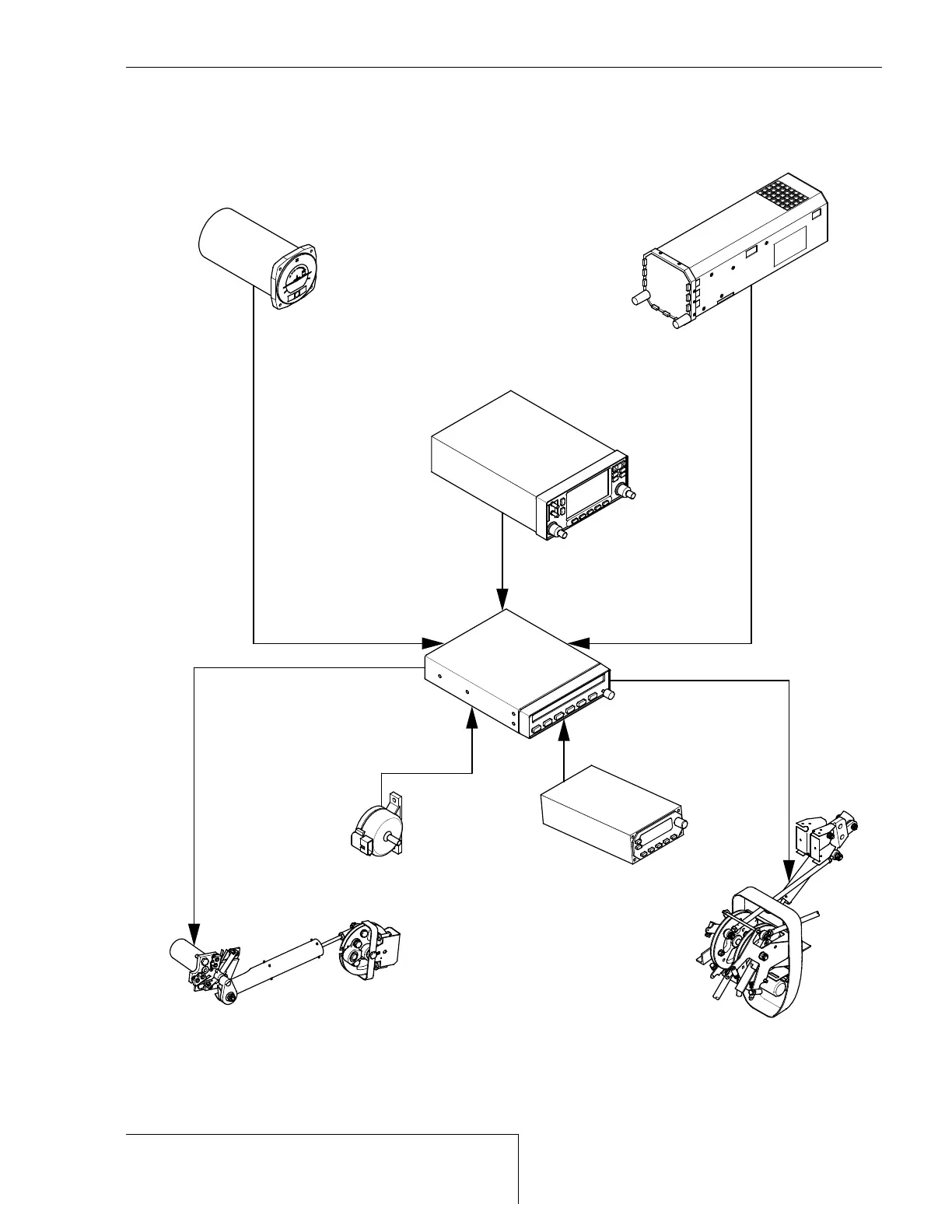

System 55X Schematic - Serials w/o PFD (Sheet 1 of 3)
T
U
R
N
C
O
O
R
D
I
N
A
T
O
R
2
M
I
N
L
R
SYSTEM 55X AUTOPILOT
ALTITUDE/VERTICAL SPEED SELECTOR
TURN COORDINATOR
HSI
GNS 430 TRANSCEIVER
ROLL TRIM CARTRIDGE
SR22_MM22_1339B
PITCH TRIM CARTRIDGE
ALTITUDE TRANSDUCER
15 Jun 2010
