Section 7 Cirrus Design
Systems Description SR22T

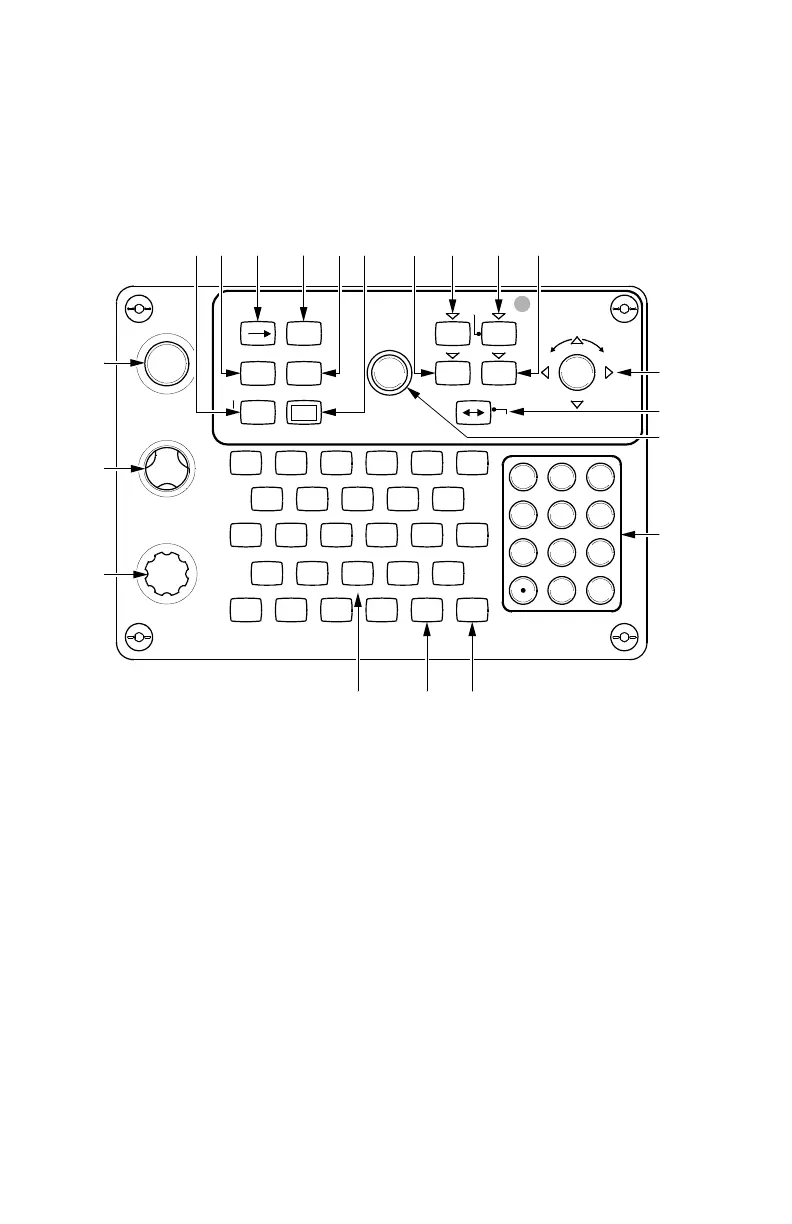

Figure 7-18
Perspective Integrated Avionics System (Sheet 2 of 2)
Flight Management System Keyboard
RANGE
PUSH
- +
PAN
HDG
CRS
ALT SEL
P"6KB,
AB CD E F
GH I J K
L M NO P Q
R
W
S
X
T
Y
U
Z
V
SPC BKSP
123
456
789
0
+/-
EMERG
CRSR/1-2
PUSH
FMS/XPDR
COM/NAV
IDENT
DFLT MAP
PUSH SYNC
PUSH CTR
PUSH SYNC
D
FPL
CLR
MENU
PROC
ENT
FMS XPDR
COM NAV
Legend
22. MFD Clear/Cancel Information
(Default Map)
23. MFD Flight Plan Page
24. MFD Direct-to-Course
25. MFD Menu
26. MFD Procedures
27. MFD Enter Key
28. COM Tuning Mode
29. FMS Mode
30. Transponder Mode (Ident)
22 23
40
32
35
33
31. NAV Tuning Mode
32. MFD Range/Pan Joystick
33. Frequency Transfer (121.5 Tune)
34. MFD FMS XPDR/NAV/COM Control
35. Alphanumeric Keys
36. Backspace Key
37. Space Key
38. Altitude Selection (PFD)
39. Course Selection (HSI)
40. Heading Selection (PFD HSI)
SR22_FM07_2821
34
363735
39
38
24 25 26 27 28 29 30 31
