STEP 3-Set up Wizard
The SpreadSmart Rx
TM
system must be configured and trimmed before it can be run in
automatic mode. Prior to initial operation, following the Set up Wizard will set the basic
operating parameters. The settings chosen here affect all aspects of system performance.

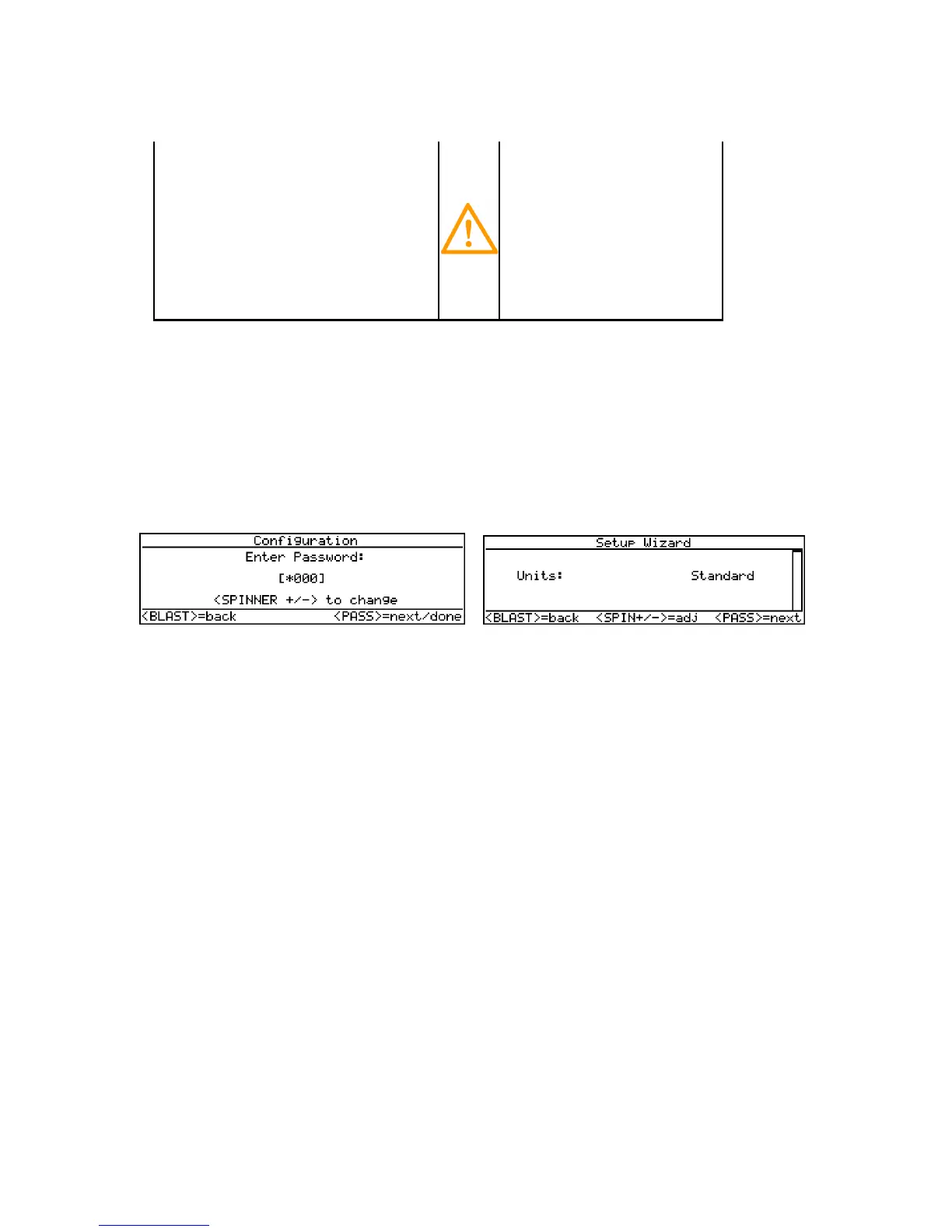

Set up Wizard is a step-by-step, menu driven sequence that allows you to configure the controller
to match the equipment set on the truck and to run automatic trimming sequences to align the
controller settings with the hydraulic system on the truck. After successful completion of the
wizard, the truck will be ready to run, but will not be calibrated until the granular drop test and
spinner calibrations have been complete. The Wizard will walk you through the following steps:
1) Password ______________ to enter setup wizard;
2) Select Units – standard or metric
3) PWM Frequency – match with coils on truck;
4) Systems Installed on Truck:
a. Auger, spinner, pre-wet, anti-ice;
5) Automatic Trimming:
a. For each system you enable (by answering yes) the set up wizard will give
you the option to run automatic trimming. These steps should not be
completed until all hydraulics are installed and ready to test.
b. Note: when trimming Anti-Ice system, turn all 3 boom valves on.
6) Press “pass” to complete, save configuration and re-start SpreadSmart Rx.
7) Choose to:
a. Complete Granular Calibration (completed by customer using his material).
b. Run System Un-Calibrated
To bypass the Wizard and leave the system un-configured, answer “no” to each of the four
questions. The SpreadSmart will display the “mode” screen, but none of the output signals will
function until turned on at a later time.
STEP 4: “Un-Calibrated” Automatic Mode
Choose “yes” when asked to run un-calibrated. Normally, trucks are delivered to customers
without performing granular drop test calibration. Note: if unable to get into “un-calibrated”
automatic mode, step 3 needs to be verified and/or repeated.
WARNING
Potential for injury due to unexpected
startup or movement of mechanical
equipment.
Unexpected startup or movement of
mechanical equipment may cause in-
jury to eyes and extremities.
During initial startup and te sting, the
spreader components may start with-
out warning. Stay clear of the auger,
spinner, and liquid nozzles until initial
power up and programming are com-
plete.
