Cisco 1000 Series

Ground lug3
Kensingston lock slot4

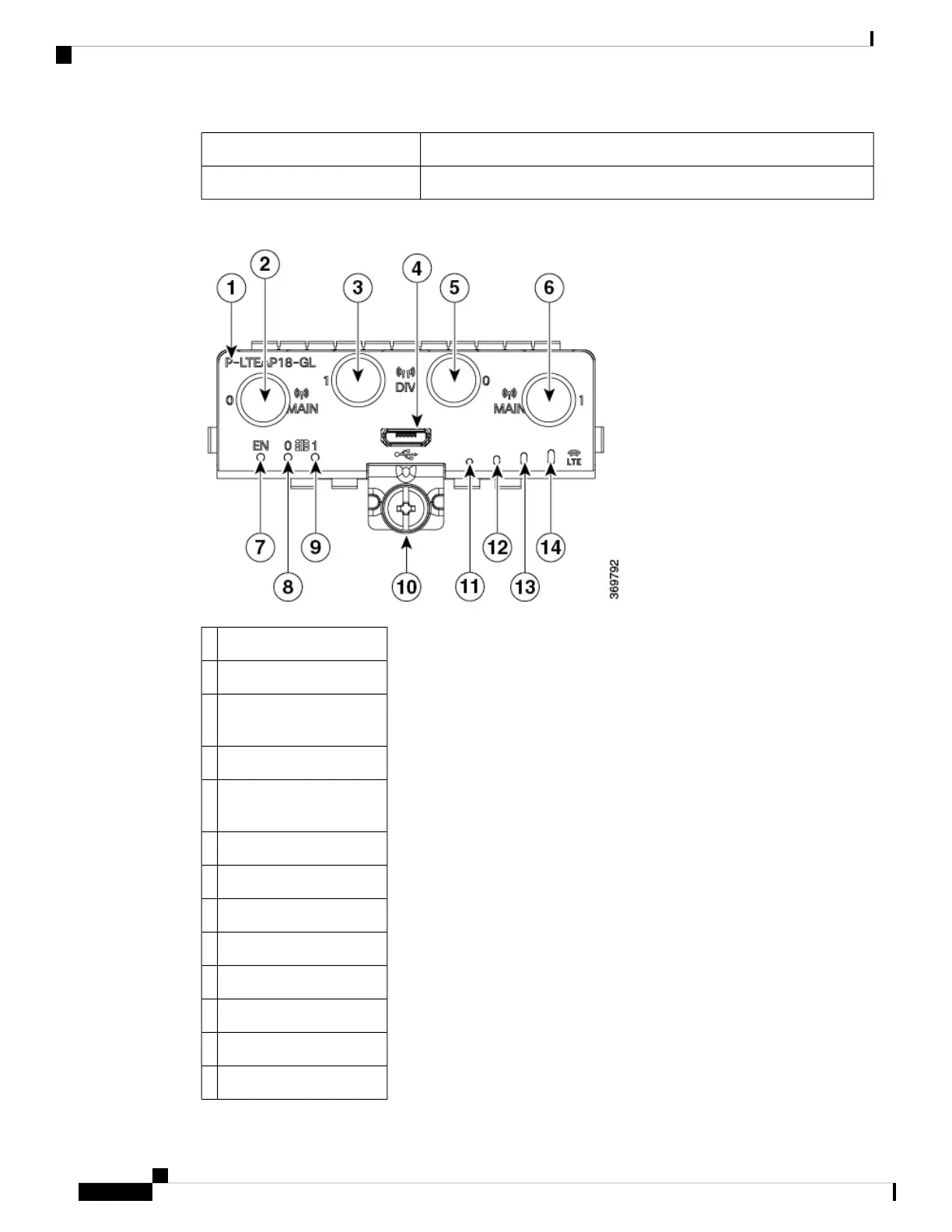

Figure 56: LTE Pluggable Interface Module - P-LTEAP18-GL
PID1
Main 0 antenna (SMA)2
Diversity 1 antenna
(SMA)
3
Micro USB4
Diversity 0 antenna
(SMA)
5
Main 1 antenna (SMA)6
Enable LED7
SIM 0 LED8
SIM 1 LED9
M3.5 thumb-screw10
R011
R112
R213
Hardware Installation Guide for the Cisco 1000 Series Integrated Services Router
64
Install and Upgrade Internal Modules and Field Replaceable Units
Install a Pluggable Interface Module on a C1101-4P
